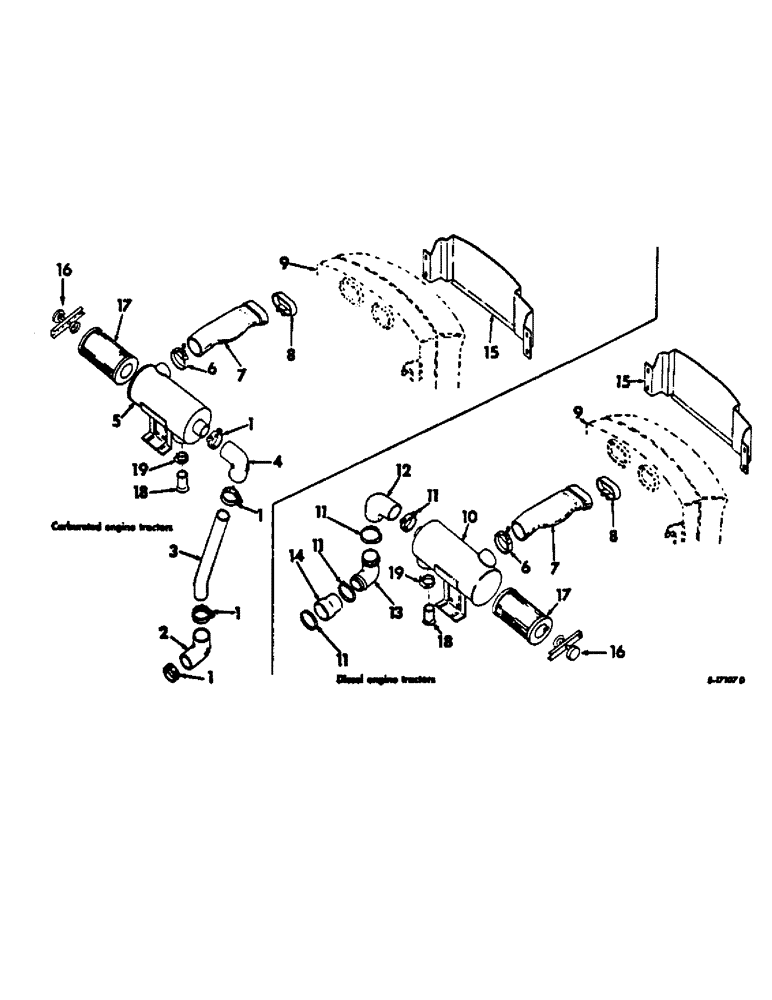

Запчасти Case IH 544 (E-03) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, FARMALL TRACTORS (02) - FUEL SYSTEM

1

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, hose

4шт.

2

400938R1

INTAKE AIR HOSE

Carburetor Inlet, Gear drive tractors 63.50 mm ID

1шт.

2

406401R1

HOSE, carburetor inlet, hydrostatic drive tractors

1шт.

3

400936R2

TUBE ASSY, air cleaner outlet, gear drive tractors

1шт.

3

406398R1

TUBE ASSY, air cleaner outlet, hydrostatic drive tractors

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 auto sq-hd pipe

1шт.

4

529314R1

HOSE

air cleaner pipe upper, replaces 306190R1

1шт.

4

529313R1

HOSE

air cleaner outlet, replaces 382400R1, hydrostatic drive tractors

1шт.

5

402491R91

CLEANER ASSY, air, includes ref. nos. 16 thru 19

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

6

39261H

CLAMP, intake hose rear

1шт.

7

380035R2

INTAKE AIR HOSE,2.16" ID, 3.00" ID x 11.20"

Air Cleaner 2.16" ID, 3.00" ID x 11.20"

1шт.

8

380600R91

FASTENER

CLAMP, intake hose front

1шт.

9

NSS

NOT SOLD SEPARAT

RADIATOR, refer to radiator and connections listing, section A

1шт.

10

402492R91

CLEANER ASSY, air, includes ref. nos. 16 thru 19

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

11

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, hose

1шт.

12

400939R1

HOSE, air cleaner outlet

1шт.

13

401348R1

TUBE ASSY, air cleaner outlet

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 auto sq-hd pipe

1шт.

14

401347R3

HOSE, manifold inlet

1шт.

15

396519R1

BAFFLE

pre-cleaner

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-1/ x 1/2 hex-hd cap

4шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

4шт.

16

313965R91

LOCK

BAR ASSY, retainer

1шт.

17

313964R91

AIR CLEANER

FILTER ASSY, carbureted engine tractors

1шт.

17

403889R1

FILTER, ELEMENT

FILTER ASSY, diesel engine tractors

1шт.

18

324194R1

GROMMET

UNLOADER

1шт.

19

526609R1

CLAMP

1шт.
