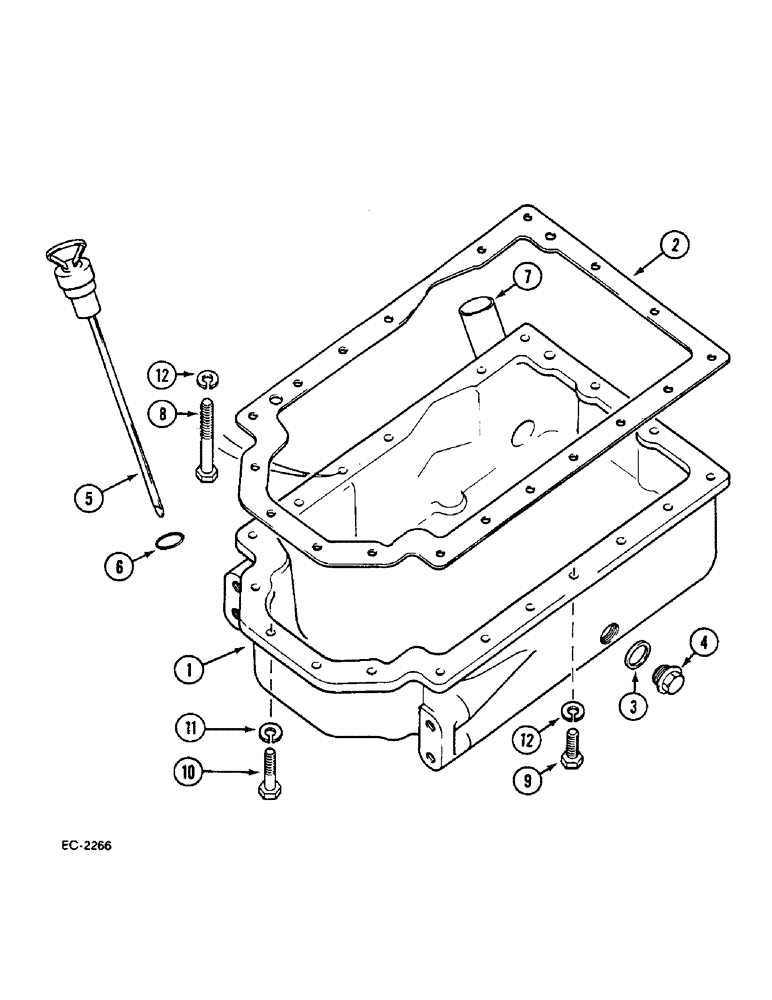

Запчасти Case IH 533 (2-82) - OIL PAN (02) - ENGINE

1

3218615R91

SUMP

with: Ref. 7

1шт.

2

3055160R1

OIL PAN GASKET SET

1шт.

3

933609R1

RING

1шт.

4

3131883R2

SCREW

PLUG

1шт.

5

3218617R91

DIPSTICK

1шт.

6

3218634R1

O-RING,2.4mm Thk x 8.3mm ID, 72 Duro

1шт.

7

3218412R1

TUBE

1шт.

8

3055668R1

SCREW,Hex, 5/16" - 18 x 176mm

5/16 x 178 mm

2шт.

9

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

13шт.

10

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

11

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock

4шт.

12

3050129R1

LOCK WASHER

WASHER lock, 8 mm

15шт.
