Запчасти Case IH 533 (2-62) - CRANKSHAFT AND FLYWHEEL (02) - ENGINE

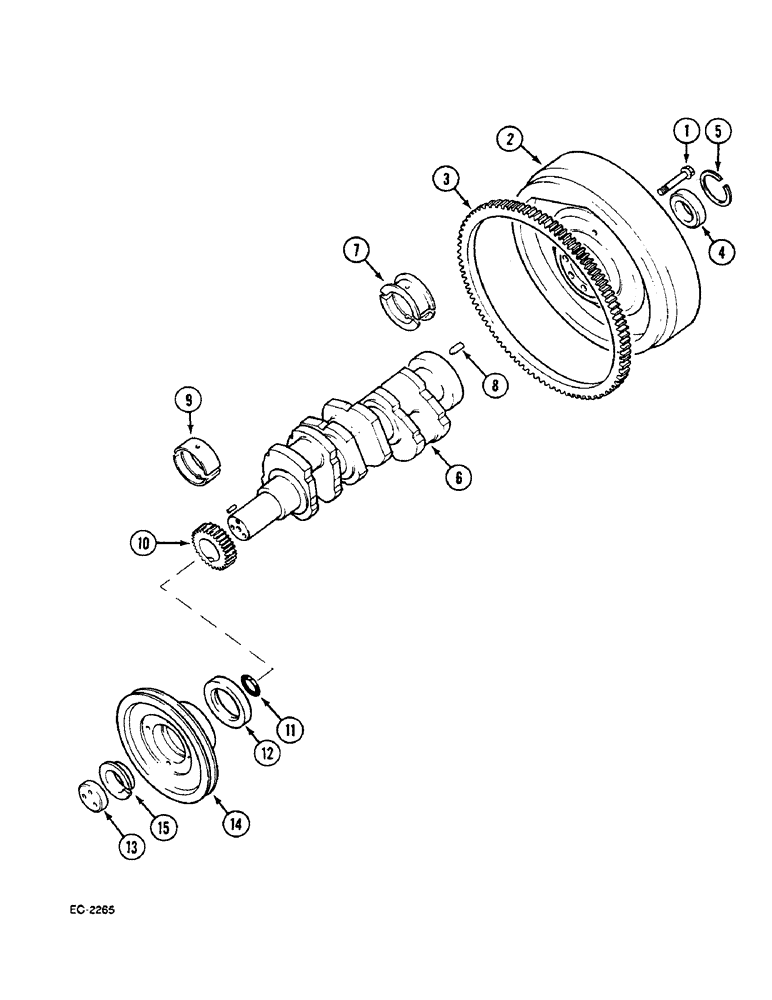

Схема запчастей Case IH 533 - (2-62) - CRANKSHAFT AND FLYWHEEL (02) - ENGINE
9
13
14
4
5
15
1
7
11
12
2
8
6
10
3

Артикул

Название

Примечание

Количество

See also Figure 2-72

1шт.

1

3055497R2

BOLT

7шт.

2

3055430R31

FLYWHEEL

Consists of: 3, 4, 5, for models 433, 533

1шт.

2

3228404R91

FLYWHEEL

Consists of: 3, 4, 5, for model 633

1шт.

3

3055358R1

CROWN WHEEL

GEAR for models 433, 533

1шт.

3

3144612R1

GEAR

for model 633

1шт.

4

3055431R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

1шт.

5

933616R1

CIRCLIP,#47, 43.7 x 4.04 x 1.12

retaining

1шт.

6

3055746R92

CRANKSHAFT BEARING

standard, for models 433, 533

1шт.

6

3055770R92

CRANKSHAFT

undersize 0.250 mm, for models 433, 533

1шт.

6

3055772R92

CRANKSHAFT

undersize 0.500 mm, for models 433, 533

1шт.

6

3055774R92

CRANKSHAFT

undersize 0.750 mm, for models 433, 533

1шт.

6

3055782R92

CRANKSHAFT BEARING

standard, for model 633

1шт.

6

3056818R92

CRANKSHAFT BEARING

undersize 0.250 mm, for model 633

1шт.

6

3056836R92

CRANKSHAFT BEARING

undersize 0.500 mm, for model 633

1шт.

6

3055783R92

CRANKSHAFT BEARING

undersize 0.750 mm, with: Ref. 7, 8, 9, 10, for model 633

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

With connecting rod brgs

1шт.

7

3055129R21

CRANKSHAFT BEARING

standard

1шт.

7

3056820R11

BEARING ASSY

undersize 0.250 mm

1шт.

7

3056875R11

BEARING ASSY

undersize 0.500 mm

1шт.

7

3055776R11

BEARING ASSY

undersize 0.750 mm

1шт.

8

37-2614

DOWEL,3/8" x 7/8"

1шт.

9

3055130R21

CRANKSHAFT BEARING

BEARING standard

3шт.

9

3056832R21

BEARING ASSY

undersize 0.250 mm

3шт.

9

3056877R21

BEARING ASSY

undersize 0.500 mm

3шт.

9

3055779R21

BEARING ASSY

undersize 0.750 mm

3шт.

10

3055028R1

PINION

GEAR 33T

1шт.

11

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

12

3228133R93

SEAL KIT

PACKAGE seals

1шт.

13

3055154R1

WASHER

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

14

3138778R1

PULLEY

for models 433, 533

1шт.

14

3228406R1

PULLEY

for model 633

1шт.

15

3138874R1

BEARING WASHER

RING

1шт.

Выбрано товаров: 34
