Запчасти Case IH 533 (2-58) - FLYWHEEL HOUSING (02) - ENGINE

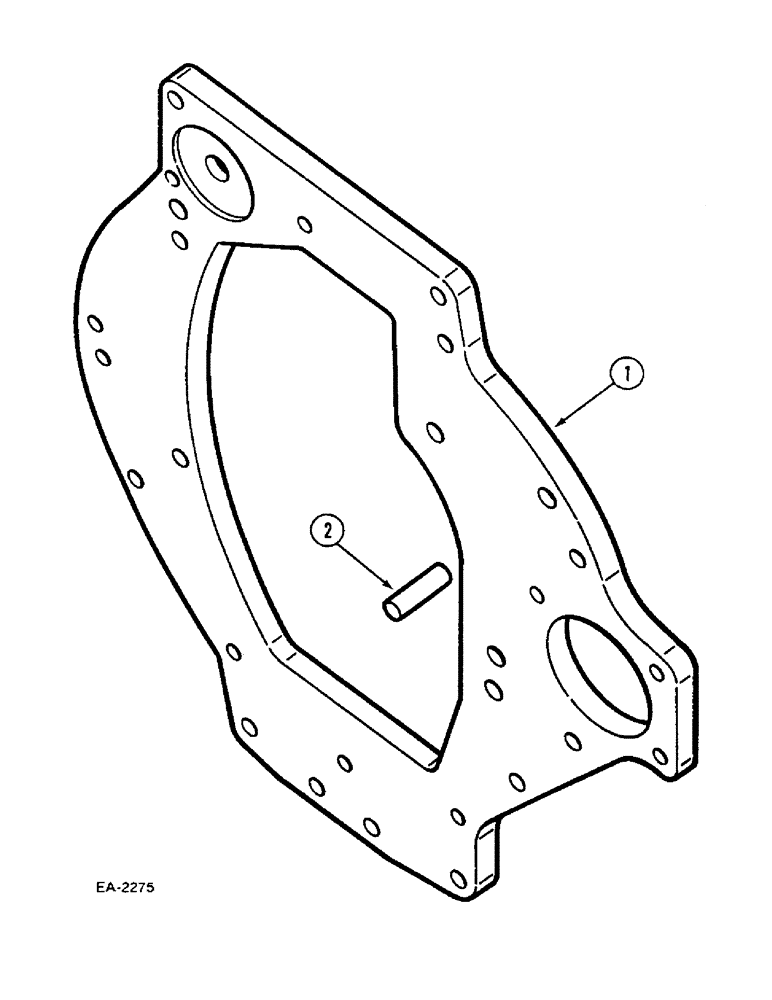

Схема запчастей Case IH 533 - (2-58) - FLYWHEEL HOUSING (02) - ENGINE
1
2

Артикул

Название

Примечание

Количество

1

3132390R91

PLATE

with: Ref. 2, for models 433, 533

1шт.

1

3144797R91

PLATE

with: Ref. 2, for models 633, 733, 833

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

for models 433, 533, 633

12шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

for models 733, 833

6шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

for models 433, 533, 633

4шт.

3050128R1

LOCK WASHER

Lock

10шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

For models 433, 533, 633

3шт.

103323

LOCK WASHER,1/2"

For model 433

12шт.

103323

LOCK WASHER,1/2"

For models 533, 633

11шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

For models 533, 633

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

for models 533, 633

1шт.

102637

NUT,1/2"-13, G5

For models 533, 633

1шт.

3052074R1

STUD

for models 533, 633

1шт.

28294R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

for models 733, 833

1шт.

28293R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

BOLT 1/2 x 10 mm, for models 733, 833

6шт.

28228R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

for models 733, 833

1шт.

711055R1

WASHER

1/2 inch, for models 733, 833

13шт.

3228196R1

STUD

for models 733, 833

1шт.

2

141287

DOWEL,1/2" x 1 1/2"

1шт.

Выбрано товаров: 19
