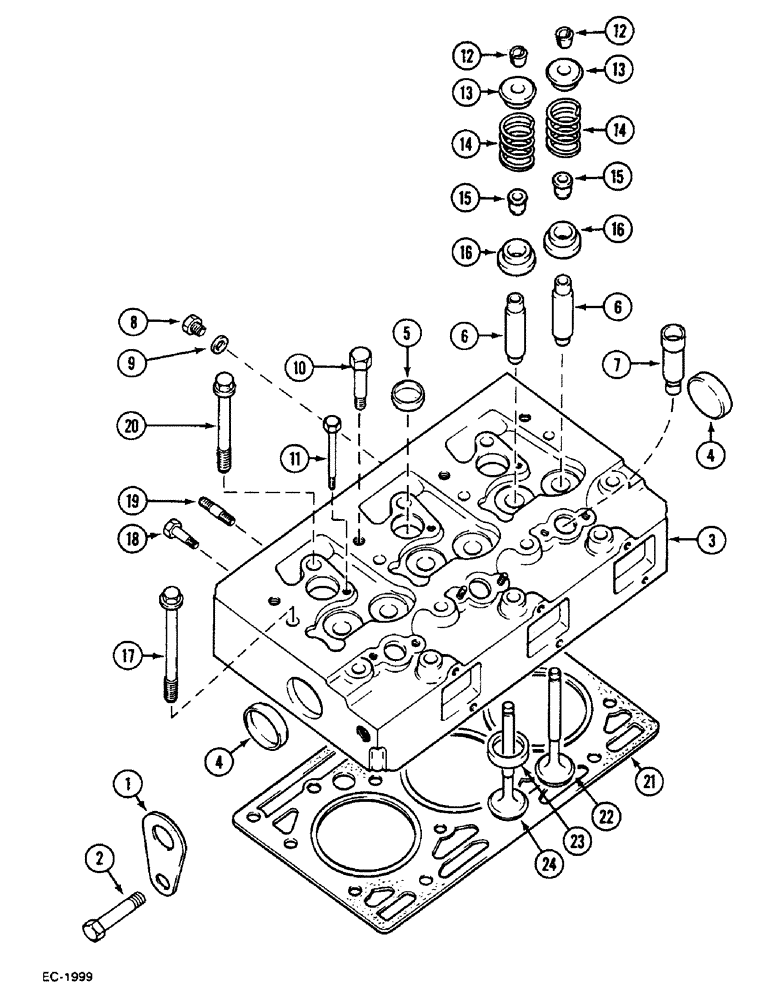

Запчасти Case IH 533 (2-32) - CYLINDER HEAD (02) - ENGINE

1

Not Used

1шт.

2

Not Used

1шт.

3

3055366R96

HEAD (CYLINDER)

ASSY.

1шт.

4

934003R1

PLUG,M52, Conical

2шт.

5

933537R1

PLUG,M25, Conical

3шт.

6

3055022R2

VALVE GUIDE

6шт.

7

3055344R1

SLEEVE

3шт.

8

934259R1

PLUG,Hex, M10 x 1

1шт.

9

718743R1

SEALING RING,M10 x 16 x 1

1шт.

10

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

11

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

2шт.

12

3055057R91

ROCKER ARM COTTER

KEY ASSY.

12шт.

13

3055058R2

SPRING CUP

CAP

6шт.

14

3055060R1

SPRING

6шт.

15

3218399R91

GASKET KIT

PACKAGE Consists of:

1шт.

NSS

NOT SOLD SEPARAT

SEAL

6шт.

3132420R1

SLEEVE

1шт.

16

3055059R91

CAP

ROTATOR

6шт.

17

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

9/16 x 146 mm

8шт.

18

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

19

3055663R1

STUD

3/8 x 38 mm

6шт.

20

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

9/16 x 123 mm

6шт.

21

3228361R1

CYLINDER HEAD GASKET

1шт.

22

3055055R2

OVERSIZE INLET VALVE

3шт.

23

3132361R1

INSERT

VALVE seat, oversize 0.40 mm

3шт.

23

3132362R1

VALVE SEAT

VALVE seat, oversize 0.15 mm

3шт.

24

3055056R2

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

3шт.

3136798R98

GASKET KIT

PACKAGE Consists of:, not illustrated

1шт.

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

not illustrated

3шт.

3053133R1

SEALING RING,M8 x 11.5 x 1

Not Illustrated

6шт.

3138641R1

GASKET

not illustrated

1шт.

3055397R2

GASKET

not illustrated

1шт.

3055306R1

GASKET

not illustrated

3шт.

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

not illustrated

2шт.

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING not illustrated

3шт.

3132143R1

GASKET

not illustrated

1шт.

3228361R1

CYLINDER HEAD GASKET

not illustrated

1шт.

3132434R1

MANIFOLD GASKET,0.5mm Thk

not illustrated

3шт.

3218399R91

GASKET KIT

PACKAGE not illustrated

1шт.
