Запчасти Case IH 533 (2-28) - VALVE HOUSING COVER (02) - ENGINE

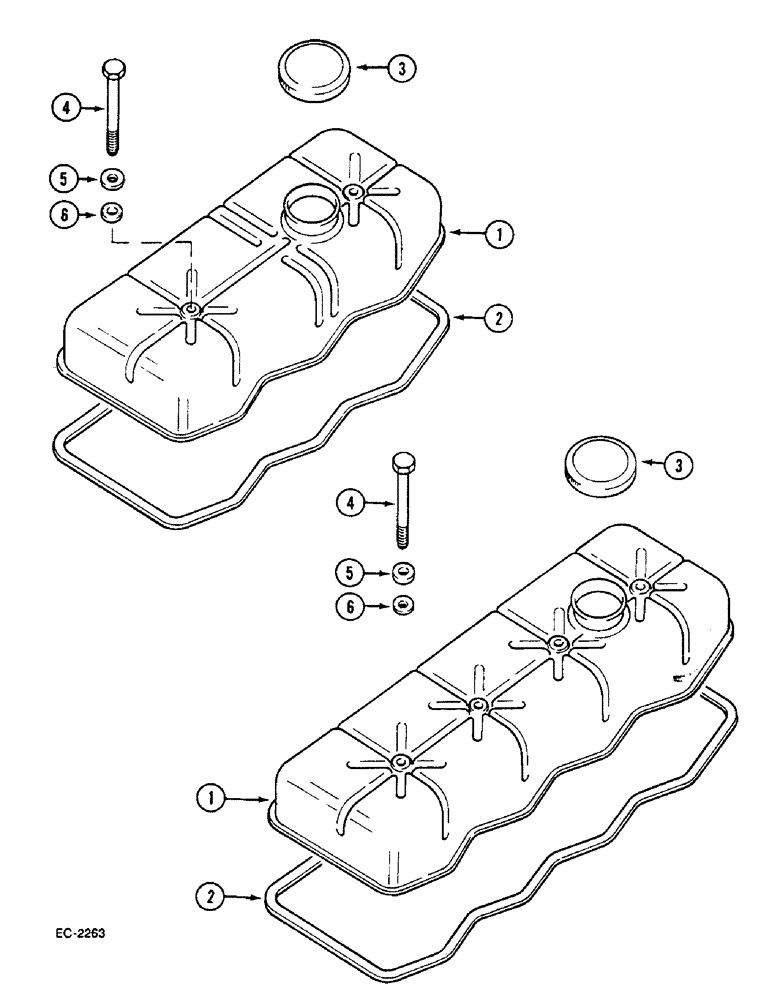

Схема запчастей Case IH 533 - (2-28) - VALVE HOUSING COVER (02) - ENGINE
5
6
4
6
4
2
1
1
5
3
2
3

Артикул

Название

Примечание

Количество

1

3218613R91

COVER

for models 433, 533, 633

1шт.

1

3218618R91

COVER

for models 733, 833

1шт.

2

3138641R1

GASKET

3 cylinder, for models 433, 533, 633

1шт.

2

3138642R1

GASKET

4 cylinder, for models 733, 833

1шт.

3

3218408R1

COVER

CAP

1шт.

4

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

For models 433, 533, 633

3шт.

4

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

For models 733, 833

4шт.

5

3138637R1

CUP WASHER

WASHER for models 433, 533, 633

3шт.

5

3138637R1

CUP WASHER

WASHER for models 733, 833

4шт.

6

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

for models 433, 533, 633

3шт.

6

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

for models 733, 833

4шт.

Выбрано товаров: 11
