Запчасти Case IH 533 (2-10) - WATER PUMP AND FAN (02) - ENGINE

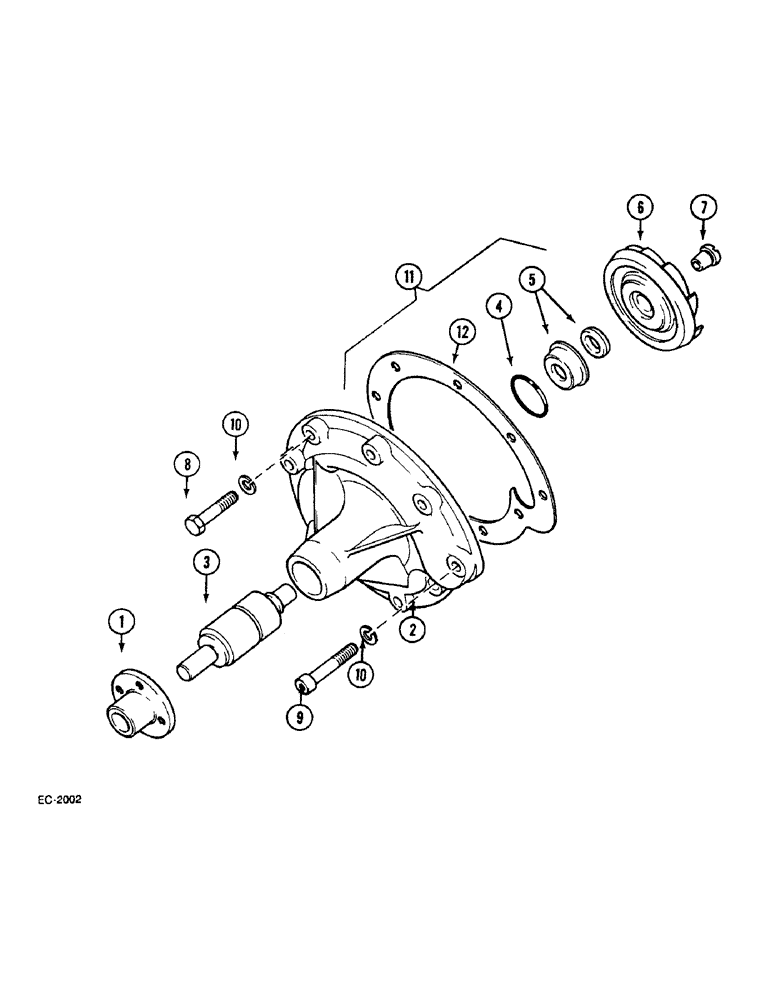

Схема запчастей Case IH 533 - (2-10) - WATER PUMP AND FAN (02) - ENGINE
11
3
12
5
8
4
2
1
10
6
7
9
10

Артикул

Название

Примечание

Количество

3136217R92

PUMP, WATER

Consists of: 1-12, for models 433, 533, 633, 733

1шт.

3136053R93

PUMP, WATER

Consists of: 1-12 for model 633

1шт.

3136053R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

735102C91

REMAN-WATER PUMP

Remanufactured, WATER PUMP

1шт.

1928123C1

CORE-WATER PUMP

Return Number

1шт.

3132738R93

PUMP, WATER

Consists of: 1-12, for model 833

1шт.

735098C91

REMAN-WATER PUMP

Reman for New PN 3132738R93

1шт.

1928117C1

CORE-WATER PUMP

Return Number

1шт.

1

3136218R1

HUB

for models 433, 533, 633, 733

1шт.

1

3055188R1

HUB

for model 833

1шт.

2

3132677R41

BODY

with: Ref. 3

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

6

3055211R2

IMPELLER

1шт.

7

3055308R1

PLUG

1шт.

8

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

3шт.

9

28300R1

HEX SOC SCREW,5/16" - 18 x 3 3/8"

1шт.

10

3050129R1

LOCK WASHER

WASHER lock, 8 mm

8шт.

11

3055285R93

GASKET KIT

PACKAGE service, Consists of: 4, 5, 12

1шт.

12

3055177R1

GASKET

1шт.

Выбрано товаров: 21
