Запчасти Case IH 533 (9-576) - DRAWBARS (09) - CHASSIS/ATTACHMENTS

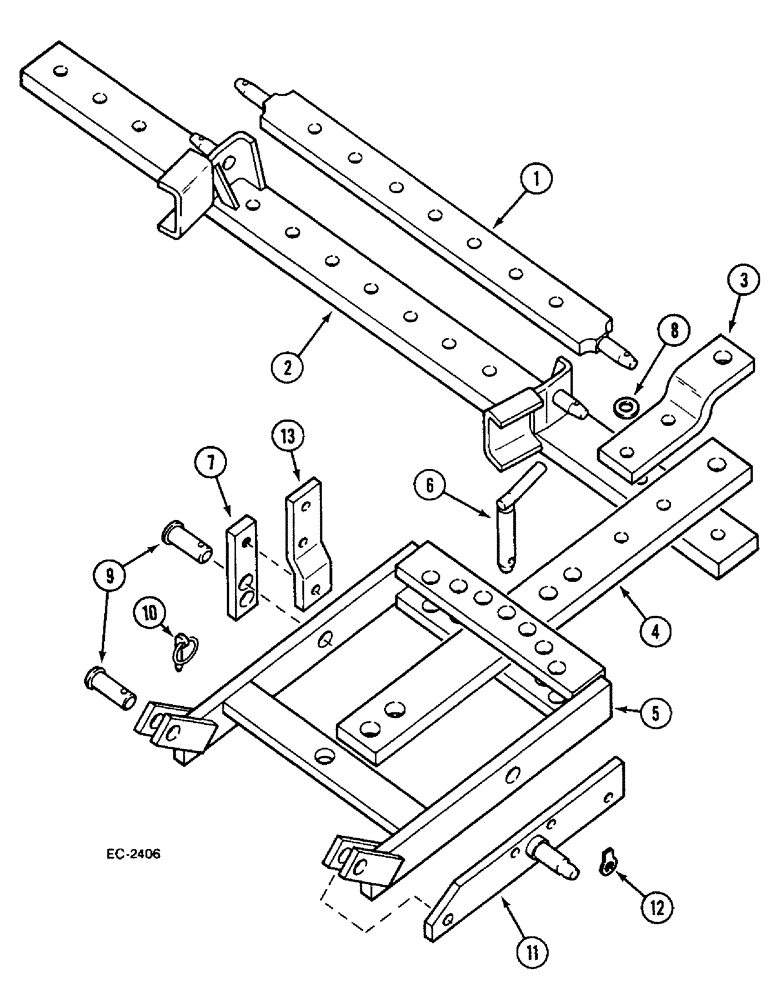

Схема запчастей Case IH 533 - (9-576) - DRAWBARS (09) - CHASSIS/ATTACHMENTS
12
7
10
11
1
6
5
3
4
9
2
13
8

Артикул

Название

Примечание

Количество

1

3134344R2

DRAWBAR

for models 433, 533, 633

1шт.

1

3140007R2

DRAWBAR,952mm L x 80mm W x 30mm Thk

for models 733, 833

1шт.

2

3058563R92

SWINGING DRAWBAR

for models 433, 533, 633

1шт.

2

3233150R1

DRAWBAR

for models 733, 833

1шт.

3

3058476R1

CLAMP

for models 433, 533, 633, 733, 833

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

for models 433, 533, 633, 733, 833

2шт.

103325

LOCK WASHER,5/8"

For models 433, 533, 633, 733, 833

2шт.

102639

NUT,5/8"-11, G5

For models 433, 533, 633, 733, 833

2шт.

4

3058525R1

DRAWBAR, SWINGING

for models 433, 533, 633, 733, 833

1шт.

5

3058519R11

FRAME

for models 433, 533, 633, 733, 833

1шт.

6

764122R11

PIN

for models 433, 533, 633, 733, 833

1шт.

7

3058524R2

PLATE

for models 433, 533, 633, 733, 833

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

for models 433, 533, 633, 733, 833

2шт.

103325

LOCK WASHER,5/8"

For models 433, 533, 633, 733, 833

2шт.

8

10620P

WASHER

for models 433, 533, 633, 733, 833

2шт.

9

3134910R2

PIN

for models 433, 533, 633, 733, 833

4шт.

10

3057346R11

LINCH PIN

11 mm, for models 433, 533, 633, 733, 833

1шт.

11

3058495R22

BRACKET

left, for models 433, 533, 633, 733, 833

1шт.

11

3058496R94

BRACKET

right, for models 433, 533, 633, 733, 833

1шт.

12

714258R1

WASHER,Tab, M17 ID x 36 OD x 1 Thk

for models 433, 533, 633, 733, 833

4шт.

13

3233138R1

SUPPORT

left, for models 433, 533, 633, 733, 833

1шт.

13

3233139R1

SUPPORT

right, for models 433, 533, 633, 733, 833

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

For models 433, 533, 633, 733, 833

4шт.

103325

LOCK WASHER,5/8"

For models 433, 533, 633, 733, 833

4шт.

Выбрано товаров: 24
