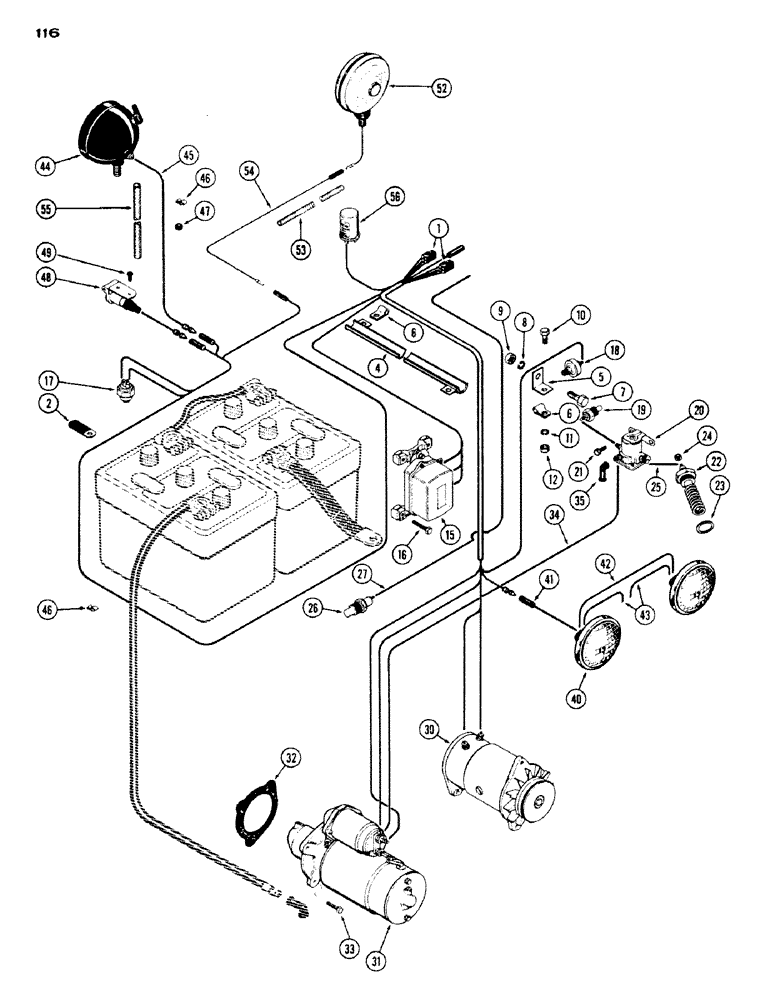

Запчасти Case IH 530 (116) - ELECTRICAL EQUIPMENT AND WIRING, 530, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A37933

HARNESS - main wire (includes plugs) (used w/flasher attachment)

1шт.

1

A36676

HARNESS

(used w/out flasher attachment)

1шт.

2

A37179

CLIP

- wire harness

1шт.

4

20411

BLOCK

CONDUIT - wire harness (under fuel tank)

1шт.

5

A38439

BRACKET

- tach. cable

1шт.

6

A20541

CLIP

CLAMP - tach. cable

2шт.

7

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Clamp to bracket Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

25-104

NUT,1/4"-20, G5

1шт.

10

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Clamp to supt. Hex, 5/16"-18 x 5/8", G5, Full Thd

1шт.

11

92-5

LOCK WASHER,5/16"

1шт.

12

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.

15

A41464

REGULATOR

- voltage (Replaces A36564)

1шт.

16

114-4

BOLT,Hex, 1/4" - 28 x 1-1/2", Gr 5

- 1/4 x 1-1/2" N.F. hex.

4шт.

17

A20990

SWITCH

- safety, neutral start

1шт.

18

A13794

TRANSMITTER

SENDER - engine oil presure

1шт.

19

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

20

A39079

SOLENOID

- heater, manifold (Replaces A21481, A57069)

1шт.

21

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

22

A37775

HEATER

- manifold

1шт.

23

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

24

129-503

NUT,1/4"-20, Brass

Cable 1/4"-20, Brass

1шт.

25

A21483

CABLE

- heater, Serial Range: solenoid-heater

1шт.

26

A33241

SWITCH

- warning, converter temperature

1шт.

27

A36677

ELECTRICAL WIRE

WIRE - conv. temp. switch (16")

1шт.

30

A36563

GENERATOR

ASSY. - (Repairs Figure 118)

1шт.

31

A36582

STARTER ASSY. - (Delco #1104854) (Order A36583) (See Figure 121A)

1шт.

31

A36583

STARTER MOTOR

STARTER ASSY. - (Delco #1107583) (Repairs Figure 120)

1шт.

32

G46873

GASKET

- starter to block (C-O-M)

1шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

34

A36896

CABLE PULLING GRIP

CABLE - starter to heater solenoid (6")

1шт.

35

A21753

CAP

BOOT - solenoid terminal

1шт.

40

A24572

LAMP

ASSY. - head (Repairs, Figure 117C)

2шт.

41

A11943

WIRE - head lamp to harness (21")

1шт.

42

A11764

WIRE - jumper, head lamp (16")

1шт.

43

A33439

WIRE - ground, head lamp (12")

2шт.

44

A20965

LAMP BASE

LAMP ASSY. - flood and tail (Repairs Figure 122)

1шт.

45

A37934

WIRE - harness to tail lamp (48")

1шт.

46

G46047

CLIP - wire, tall lamp & main harness

1шт.

47

A27338

GROMMET

- tail lamp wire (in fender)

1шт.

48

A8170

SOCKET

- electrical outlet

1шт.

49

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- #10-32 x 1/2" rd. hd.

2шт.

52

A34853

LAMP

ASSY. - flasher warning (Repairs, Figure 125A)

1шт.

53

A37940

LOOM

- wire, 1/4 x 5-1/2"

1шт.

54

A34889

WIRE - lamp to main harness, 47-1/2"

1шт.

55

A11776

LOOM - tail & flasher lamp wire, 3/8 x 41"

1шт.

56

A34867

FLASHER UNIT

FLASHER - 12 volt (See Figure 125A)

1шт.
