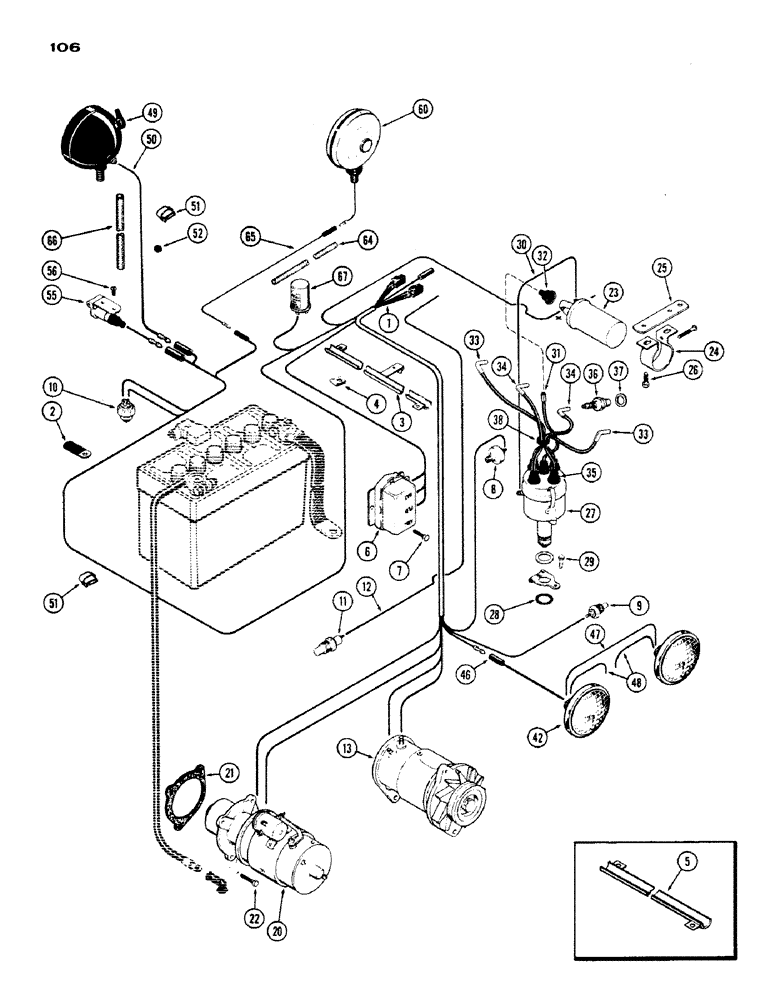

Запчасти Case IH 530 (106) - ELECTRICAL EQUIPMENT AND WIRING, 530, 159, SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A37933

HARNESS - main wire (includes plugs) (used w/flasher attachment)

1шт.

1

A36676

HARNESS

- main wire (includes plugs) (used w/out flasher attachment)

1шт.

2

A37179

CLIP

- harness

1шт.

3

A38438

CONDUIT - wire harness & tach. cable, Start Serial: 8659651

1шт.

4

A20541

CLIP

CLAMP - tach. cable (rear conduit stud), Start Serial: 8359651

1шт.

5

A20411

CONDUIT - harness (under fuel tank), Serial Range: -8359651

1шт.

6

A36194

REGULATOR

- voltage

1шт.

7

114-4

BOLT,Hex, 1/4" - 28 x 1-1/2", Gr 5

- regulator (1/4 x 1-1/2" N.F. hex.)

3шт.

8

A13794

TRANSMITTER

SENDER - engine oil pressure

1шт.

9

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

10

A20990

SWITCH

- safety, neutral start

1шт.

11

A33241

SWITCH

- warning, converter temp.

1шт.

12

A36677

ELECTRICAL WIRE

WIRE - converter temp. switch (24")

1шт.

13

A41452

GENERATOR ASSY. - (Repairs Figure 110)

1шт.

13

A36195

GENERATOR ASSY. - (Repairs Figure 110) (Order A41452)

1шт.

20

A36581

STARTER ASSY. - (Repairs Figure 112)

1шт.

21

G46873

GASKET

- starter to block (w/C-O-M)

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

23

A41820

COIL

- ignition (Replaces A33438)

1шт.

24

G46106

BRACKET

CLAMP - coil (includes screw)

1шт.

25

G11705

BRACKET

- coil mounting

1шт.

26

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

27

A30358

DISTRIBUTOR

ASSY. - (Repairs Figure 109C)

1шт.

28

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - distributor to block (1-1/16 x 1-5/16 x 1/8")

1шт.

29

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Dist. adj. arm Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

30

G13085

ELECTRICAL WIRE

WIRE - lo-tension, dist. to coil (12")

1шт.

31

NLS

NO LONGER SERVICED

WIRE - hi-tension, coil to dist. (11")

1шт.

32

G46803

BOOT

NIPPLE -, Serial Range: wire-coil

1шт.

33

A29994

CABLE

WIRE - #1 and #4 spark plug (10-1/2")

2шт.

34

A30018

CABLE

WIRE - #2 and #3 spark plug (8-1/2")

2шт.

35

A29338

COVER

NIPPLE -, Serial Range: wire-distributor

5шт.

36

G44840

SPARK PLUG

PLUG ASSY. - spark (18 mm), Includes: Ref. 37

4шт.

37

G46839

GASKET

- spark plug

1шт.

38

A30109

WASHER

RING - harness, dist. wires

1шт.

42

A24572

LAMP

ASSY. - head (See Figure 117C)

2шт.

46

A11943

WIRE - head lamp to harness (21")

1шт.

47

A11764

WIRE - jumper, head lamp (16")

1шт.

48

A33439

WIRE - ground, head lamp (12")

2шт.

49

A20965

LAMP BASE

LAMP ASSY. - flood and tail (Repairs Figure 122)

1шт.

50

A37934

WIRE - harness to tail lamp (48")

1шт.

51

G46047

CLIP - tail lamp & harness wire

1шт.

52

A27338

GROMMET

-, Serial Range: wire-fender

1шт.

55

A8170

SOCKET

- electrical outlet

1шт.

56

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- #10-32 x 1/2" rd. hd.

2шт.

60

A34853

LAMP

ASSY. - flasher warning (Repairs Figure 125A)

1шт.

64

A37940

LOOM

- wire, 1/4 x 5-1/2"

1шт.

65

A34889

WIRE - lamp to main harness, 47-1/2"

1шт.

66

A11776

LOOM - tail & flasher lamp wires, 3/8 x 41"

1шт.

67

A34867

FLASHER UNIT

FLASHER - 12 volt (See Figure 125A)

1шт.
