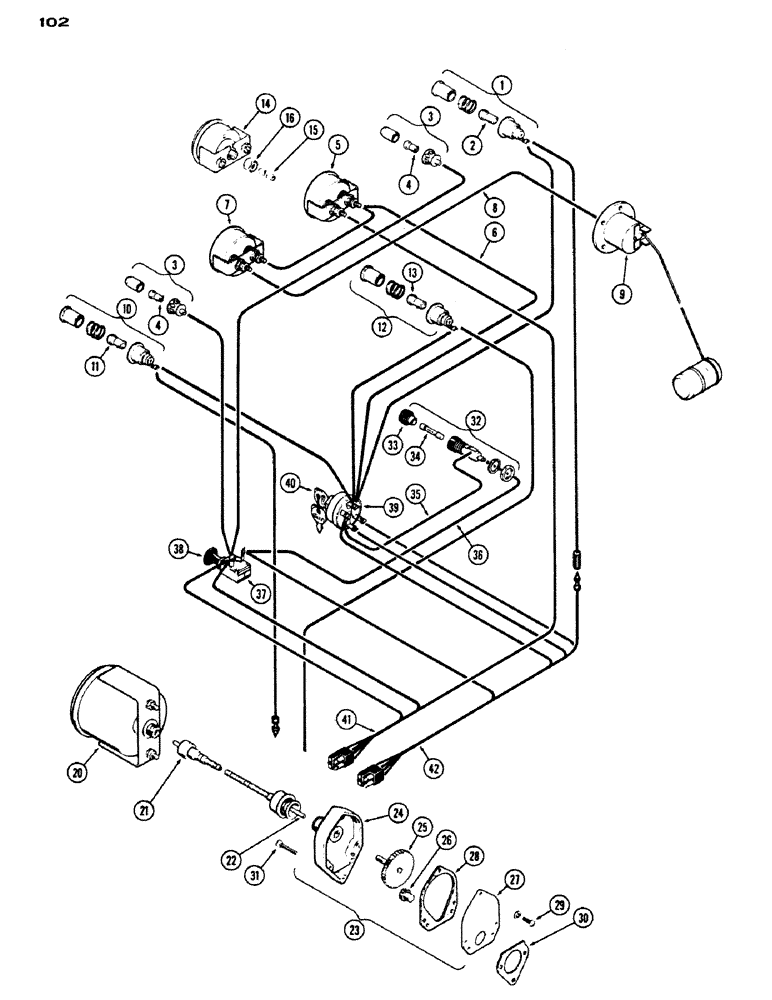

Запчасти Case IH 530 (102) - INSTRUMENTS AND WIRING, 530 SERIES (04) - ELECTRICAL SYSTEMS

1

A24085

LAMP

ASSY. - warning, generator, Includes: Ref. 2

1шт.

2

A24354

BULB

- warning lamp

1шт.

3

A24087

LAMP BASE

LAMP ASSY. - instrument panel, Includes: Ref. 4

2шт.

4

A22349

BULB

- panel lamp

1шт.

5

A24080

GAUGE

ASSY. - engine temperature

1шт.

6

A24078

ELECTRICAL WIRE

WIRE - temp. gauge to starting switch

1шт.

7

A24079

GAUGE ASSY.

GAUGE - fuel

1шт.

8

A11783

ELECTRICAL WIRE

WIRE - fuel tank, Serial Range: sender-gauge

1шт.

9

A23480

SENDER UNIT

SENDER - fuel tank

1шт.

10

A24084

LAMP

ASSY. - engine oil pressure, Includes: Ref. 11

1шт.

11

A24354

BULB

- oil pressure lamp

1шт.

12

A32145

LAMP BASE

LAMP ASSY. - converter temp. (C-O-M), Includes: Ref. 13

1шт.

13

A24354

BULB

- converter temp. lamp

1шт.

14

G45257

GAUGE ASSY.

GAUGE - converter oil pressure (C-O-M)

1шт.

15

G46292

TUBE,0.125" OD x 28" L

- converter oil pressure

1шт.

16

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

- tube to gauge (1/8" tube x 1/8" P.T.)

1шт.

20

A37767

TACHOMETER

(w/4 speed trans.)

1шт.

20

A37768

TACHOMETER

(w/8 speed trans.)

1шт.

21

G45121

HOUSING

CABLE ASSY. - tach. drive (49-1/8" w/diesel eng.), Includes: Ref. 22

1шт.

21

G45230

HOUSING

CABLE ASSY. - tach. drive (46-1/8" w/spark ign. eng.), Includes: Ref. 22

1шт.

22

A24523

KIT

SHAFT - repair, cable assy.

1шт.

23

A36818

DRIVE

ASSY. - tachometer (on generator), Includes: Ref. 24 - 29

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING (Order A36818)

1шт.

25

A36522

GEAR WHEEL

GEAR - driven

1шт.

26

G46306

GEAR WHEEL

GEAR - drive

1шт.

27

G46307

COVER - drive housing

1шт.

28

G46882

GASKET

-, Serial Range: cover-housing

1шт.

29

187-1108

SCREW - cover (#8-32 x 3/8" pan hd.)

3шт.

30

G46878

GASKET

-, Serial Range: drive-generator

1шт.

31

193-518

SCREW,SEMS, Pan Hd, #8-32 x 1"

- drive to gen. (#8-32 x 1" pan hd. Sems)

3шт.

32

A22874

HOLDER

ASSY. - fuse, Includes: Ref. 33

1шт.

33

A10958

CAP

- fuse holder

1шт.

34

223-20

FUSE,20 Amp, Type SFE

- 20 amp

1шт.

35

A22875

ELECTRICAL WIRE

WIRE - fuse to ignition switch (Replaces A22876)

1шт.

36

A22875

ELECTRICAL WIRE

WIRE - fuse to light switch

1шт.

37

G13142

IGNITION SWITCH

SWITCH ASSY. - light, Includes: Ref. 38

1шт.

38

G13141

KNOB

- light switch

1шт.

39

A24510

SWITCH

- starting w/keys (diesel eng.)

1шт.

39

A24511

SWITCH

- starting w/key (Gas) (spark ignition eng.), Includes: Ref. 40

1шт.

40

A24509

KEY

- ignition switch (Set of 2)

1шт.

41

A21613

HARNESS

- wire (w/black plug)

1шт.

42

A24076

PLUG

HARNESS - wire (w/red plug)

1шт.
