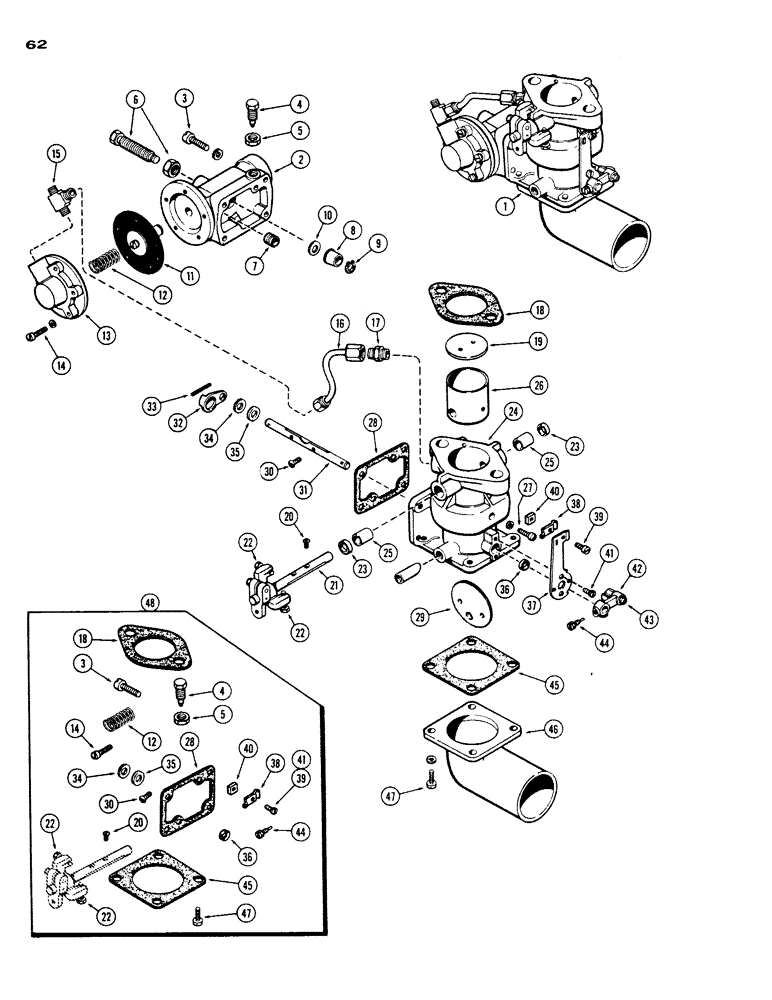

Запчасти Case IH 530 (062) - LPG CARBURETOR, 530, 159, SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A36922

CARBURETOR ASSY. - L.P.G., Includes: Ref. 2 - 47

1шт.

2

A40646

BODY - economizer

1шт.

3

B50043

SCREW -, Serial Range: economizer-carb.

1шт.

Part of Repair Kit, P/N A40560

1шт.

4

A25252

SCREW - starting adjusting, Includes: Ref. 5

1шт.

Part of Repair Kit, P/N A40560

1шт.

5

B50148

NUT - lock

1шт.

Part of Repair Kit, P/N A40560

1шт.

6

A25250

SCREW - fuel adjusting (includes nut)

1шт.

7

A40647

SCREW - economizer orifice

1шт.

8

B50088

VALVE - fuel adjusting

1шт.

9

A7111

SNAP RING,#25, Ext

RING - snap, , fuel valve #25, Ext

1шт.

10

B50075

WASHER - spring, fuel valve

1шт.

11

B50077

DIAPHRAGM ASSY - economizer

1шт.

12

B50146

SPRING - economizer (yellow)

1шт.

Part of Repair Kit, P/N A40560

1шт.

13

B50158

COVER - economizer

1шт.

14

B50030

SCREW - cover

5шт.

Part of Repair Kit, P/N A40560

1шт.

15

B50044

TEE -, Serial Range: tube-economizer

1шт.

16

B50109

TUBE -, Serial Range: economizer-carburetor

1шт.

17

A40654

CONNECTOR -, Serial Range: tube-carburetor

1шт.

18

G46826

GASKET

-, Serial Range: carb.-manifold

1шт.

Part of Repair Kit, P/N A40560

1шт.

19

A40650

DISC - throttle

1шт.

Part of Repair Kit, P/N A40560

1шт.

20

B50143

SCREW - throttle disc.

1шт.

21

A40846

SHAFT ASSY - throttle, Includes: Ref. 22

1шт.

22

B50014

SCREW - set

2шт.

Part of Repair Kit, P/N A40560

1шт.

23

B50145

SEAL - throttle shaft

2шт.

24

NSS

NOT SOLD SEPARAT

BODY ASSY - (Order A36922)

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - throttle shaft

1шт.

26

A40649

VENTURI

1шт.

27

B50042

SCREW - venturi

1шт.

28

B50163

GASKET -, Serial Range: economizer-carb.

1шт.

29

A40645

DISC - choke

1шт.

30

B50142

SCREW - choke disc.

2шт.

Part of Repair Kit, P/N A40560

1шт.

31

A40648

SHAFT - choke

1шт.

32

B50160

LEVER - valve

1шт.

33

B50161

PIN - valve lever

1шт.

34

B50075

WASHER - spring

1шт.

Part of Repair Kit, P/N A40560

1шт.

35

B50136

WASHER - valve lever

1шт.

Part of Repair Kit, P/N A40560

1шт.

36

B50144

SEAL - choke shaft

1шт.

Part of Repair Kit, P/N A40560

1шт.

37

B50150

SUPPORT ASSY - choke, Includes: Ref. 38 and 39

1шт.

38

B50204

CLAMP - support

1шт.

Part of Repair Kit, P/N A40560

1шт.

39

A40044

PIPE

SCREW - clamp

1шт.

Part of Repair Kit, P/N A40560

1шт.

40

A40046

NUT - clamp screw

1шт.

Part of Repair Kit, P/N A40560

1шт.

41

A40342

PROTECTOR

SCREW -, Serial Range: support-carburetor

1шт.

Part of Repair Kit, P/N A40560

1шт.

42

A40343

LEVER ASSY - choke

1шт.

43

B50033

SCREW - choke swivel

1шт.

44

B50014

SCREW - set

1шт.

Part of Repair Kit, P/N A40560

1шт.

45

A27539

GASKET

- inlet elbow

1шт.

Part of Repair Kit, P/N A40560

1шт.

46

A40643

ELBOW - air inlet

1шт.

47

A40560

SCREW - elbow

4шт.

Part of Repair Kit, P/N A40560

1шт.

48

B50203

REPAIR KIT - (includes ref. 3, 4, 5, 12, 14, 18, 20, 22, 28, 30, 34, 35, 36, 38, 39, 40, 41, 44, 45 and 47)

1шт.
