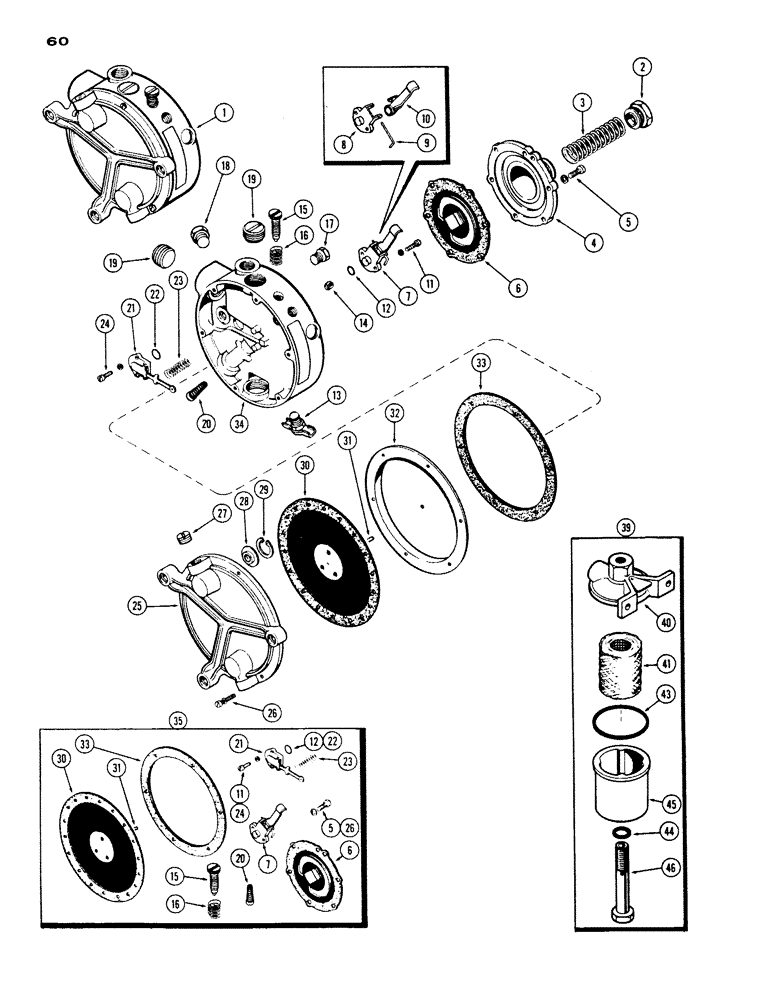

Запчасти Case IH 530 (060) - LPG REGULATOR, 530, 159, SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

G45345

REGULATOR ASSY - L.P.G., Includes: Ref. 2 - 34

1шт.

2

B50112

GUIDE - regulator spring

1шт.

3

B50111

SPRING - pressure regulator

1шт.

4

B50110

COVER - pressure regulator

1шт.

5

B50035

SCREW - cover

6шт.

Part of Repair Kit, P/N B50052

1шт.

6

B50108

DIAPHRAGM ASSY - regulator

1шт.

Part of Repair Kit, P/N B50052

1шт.

7

B50183

VALVE ASSY - hi-pressure, Includes: Ref. 8 - 10

1шт.

Part of Repair Kit, P/N B50052

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - valve (Order B50183)

1шт.

9

B50159

PIN - pivot

1шт.

10

B50182

LEVER ASSY - hi-pressure valve

1шт.

11

B50029

SCREW - hi-pressure valve

1шт.

Part of Repair Kit, P/N B50052

1шт.

12

B50179

GASKET - hi-pressure valve

1шт.

Part of Repair Kit, P/N B50052

1шт.

13

217-102

PLUG, DRAIN

DRAIN COCK - 1/8" P.T.

1шт.

14

A40640

SCREW - orifice

1шт.

15

B50024

SCREW - idle adjusting

1шт.

Part of Repair Kit, P/N B50052

1шт.

16

B50022

SPRING - idle adjusting

1шт.

Part of Repair Kit, P/N B50052

1шт.

17

221-1001

PLUG,Sq Hd, 1/8"-27 NPTF

- pipe, 1/8" sq. hd.

1шт.

18

221-1005

PLUG - pipe, 3/4" sq. hd.

2шт.

19

221-1044

PLUG - pipe, 1/2" slotted

2шт.

20

B50168

STRAINER - fuel inlet

1шт.

Part of Repair Kit, P/N B50052

1шт.

21

B50181

VALVE - lo-pressure

1шт.

Part of Repair Kit, P/N B50052

1шт.

22

B50179

GASKET - low pressure valve

1шт.

Part of Repair Kit, P/N B50052

1шт.

23

B50121

SPRING - lo-pressure valve

1шт.

Part of Repair Kit, P/N B50052

1шт.

24

B50029

SCREW - low pressure valve

1шт.

Part of Repair Kit, P/N B50052

1шт.

25

A40169

PLATE - back cover

1шт.

Part of Repair Kit, P/N B50052

1шт.

26

B50035

SCREW - cover

6шт.

Part of Repair Kit, P/N B50052

1шт.

27

B50058

PLUG - brass pipe, 1/8" slotted

1шт.

28

A40642

VALVE - compensator

1шт.

29

B50086

RING - valve retaining

1шт.

30

B50180

DIAPHRAGM

ASSY - lo-pressure, Includes: Ref. 31

1шт.

Part of Repair Kit, P/N B50052

1шт.

31

B50178

PIN - push

1шт.

Part of Repair Kit, P/N B50052

1шт.

32

B50175

PLATE - partition

1шт.

33

B50177

GASKET - partition plate

1шт.

Part of Repair Kit, P/N B50052

1шт.

34

NSS

NOT SOLD SEPARAT

BODY - (Order G45345)

1шт.

35

B50052

REPAIR KIT - regulator (includes ref. 5, 6, 7, 11, 12, 15, 16, 20, 21, 22, 23, 24, 26, 30, 31 & 33)

1шт.

39

A24535

FILTER

ASSY. - LPG, Includes: Ref. 40 - 46

1шт.

40

A24536

TOP - filter, L.P.G.

1шт.

41

A24616

KIT

ELEMENT KIT - filter, Includes: Ref. 43 and 44, L.P.G.

1шт.

43

A24539

GASKET

- filter top, L.P.G.

1шт.

44

A24538

GASKET

- bolt to housing, L.P.G. filter

1шт.

45

A24537

HOUSING - filter element, L.P.G.

1шт.

46

A24541

BOLT - top to housing, L.P.G. filter

1шт.
