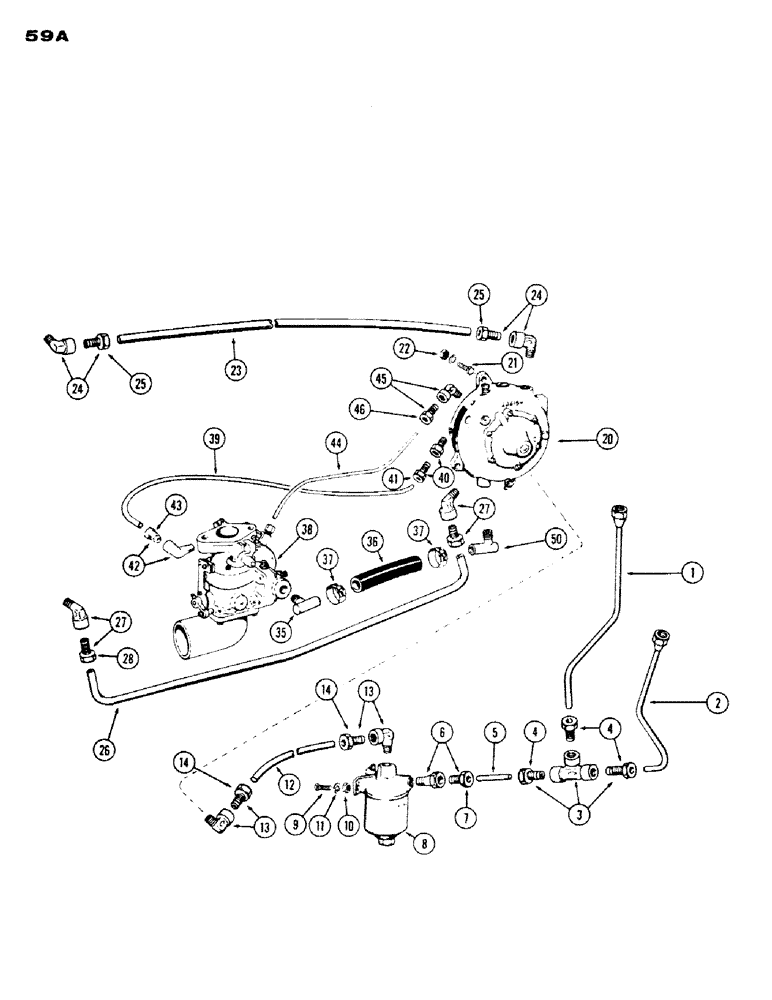

Запчасти Case IH 530 (059A) - L.P.G. FUEL SYSTEM, 530 (159) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A36932

TUBE - vapor, Serial Range: valve-tee

1шт.

2

36930

TUBE - liquid, Serial Range: valve-tee

1шт.

3

222-564

TEE ASSY. - 3/8" tube, Includes: Ref. 4

1шт.

4

222-504

TUBE NUT,9/16"-20

NUT - 3/8" tube

3шт.

5

A36934

TUBE -, Serial Range: tee-filter

1шт.

6

222-407

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR ASSY. - tube to filter, 3/8" O.D. 1/4" P.T., Includes: Ref. 7

1шт.

7

222-504

TUBE NUT,9/16"-20

NUT - 3/8" tube

1шт.

8

A24535

FILTER

ASSY. - L.P.G. (Repairs Figure 60)

1шт.

9

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

11

92-5

LOCK WASHER,5/16"

2шт.

12

A36935

TUBE -, Serial Range: filter-regulator

1шт.

13

222-437

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

ASSY. - 3/8" tube x 3/8" P.T., Includes: Ref. 14

2шт.

14

222-504

TUBE NUT,9/16"-20

NUT - 3/8" tube

1шт.

20

G45345

REGULATOR ASSY, - L.P.G. (Repairs Figure 60)

1шт.

21

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

22

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

3шт.

23

A36929

TUBE - water outlet, regulator

1шт.

24

222-442

ELBOW ASSY. - 90 degrees, 1/2" tube x 5/8" P.T., Includes: Ref. 25 90º x 3/8" NPT x 11/16"-16

2шт.

25

222-506

TUBE NUT,11/16"-16

NUT - 1/2" tube

1шт.

26

A36928

TUBE - water inlet, regulator

1шт.

27

222-470

ELBOW ASSY. - 45 degree, 1/2" tube x 3/8" P.T. 45º x 3/8" NPT x 11/16"-16

2шт.

28

222-506

TUBE NUT,11/16"-16

NUT - 1/2" tube

1шт.

35

A36925

ELBOW - regulator & carburetor hose

2шт.

36

A36942

HOSE

-, Serial Range: regulator-carburetor

1шт.

37

222-253

CLAMP - hose, Serial Range: 9/16"-1-1/16"

2шт.

38

A36922

CARBURETOR ASSY. - L.P.G. (Repairs Figure 62)

1шт.

39

A36927

TUBE - balance, Serial Range: regulator-carb.

1шт.

40

222-402

HYD CONNECTOR,1/8" NPT x 7/16"-24

CONNECTOR ASSY. - balance tube, 1/4" O.D. x 1/8" P.T., Includes: Ref. 41

1шт.

41

222-502

TUBE NUT,7/16"-24

NUT - 1/4" tube

1шт.

42

222-432

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

ASSY. - balance tube, 1/4" O.D. x 1/8" P.T., Includes: Ref. 43

1шт.

43

222-502

TUBE NUT,7/16"-24

NUT - 1/4" tube

1шт.

44

A36926

TUBE - idle, Serial Range: carb.-regulator

1шт.

45

222-431

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

ASSY. - idle tube to reg., O.D. x 1/8"P.T., Includes: Ref. 46

1шт.

46

222-501

TUBE NUT,3/8"-24

NUT - 3/16" tube

1шт.
