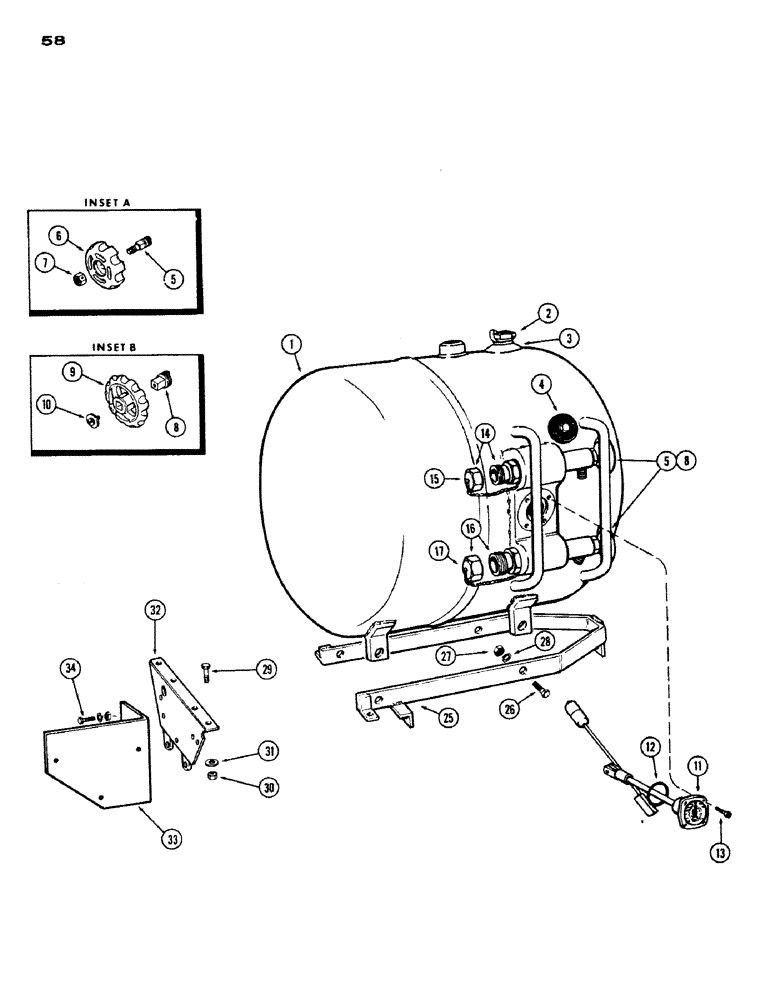

Запчасти Case IH 530 (058) - LPG FUEL TANK AND SUPPORTS, 530, 159, SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A36923

TANK ASSY. - (LPG), Includes: Ref. 2 - 17

1шт.

2

A20696

SEAL

VALVE ASSY. - safety, Includes: Ref. 3

1шт.

3

A20697

WIPER

CAP - weather

1шт.

4

A29941

GAUGE - fixed level

1шт.

5

A57245

VALVE

ASSY. - outlet, liquid & vapor (See inset A), Includes: Ref. 6 and 7

2шт.

6

A41434

WHEEL - hand, valve (used w/A41433 lock nut)

1шт.

7

A41433

LOCK NUT

NUT - lock, hand wheel

1шт.

8

A22947

X

VALVE ASSY. - outlet, liquid & vapor (See inset B) (Order A57245), Includes: Ref. 9 and 10

2шт.

9

B52058

WHEEL - hand, valve (used w/B52057 screw)

1шт.

10

B52057

SCREW - hand wheel

1шт.

11

G44848

GAUGE - fuel level, Includes: Ref. 12 and 13

1шт.

12

G46848

GASKET - fuel gauge

1шт.

13

177-133

SCREW - 1/4 x 5/16" fillister hd.

4шт.

14

A9320

VALVE - vapor return, Includes: Ref. 15

1шт.

15

A40630

CAP & CHAIN ASSY.

1шт.

16

A29942

VALVE - liquid filler, Includes: Ref. 17

1шт.

17

A40631

CAP & CHAIN ASSY.

1шт.

25

G30438

FRAME - support, fuel tank

1шт.

26

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex.

4шт.

27

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

28

92-8

LOCK WASHER,1/2"

4шт.

29

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

30

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

3шт.

31

92-5

LOCK WASHER,5/16"

3шт.

32

G30439

BRACKET - front support, fuel tank

1шт.

33

A36936

PLATE - regulator mounting

1шт.

34

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.
