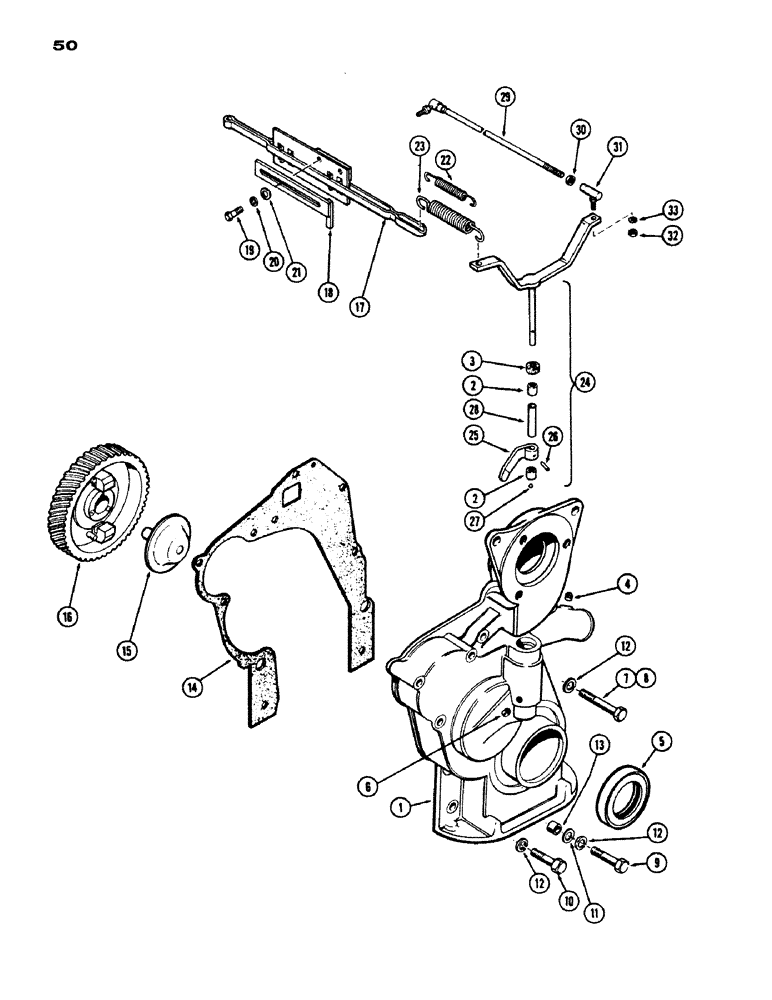

Запчасти Case IH 530 (050) - GOVERNOR AND TIMING GEAR COVER, 530, 159, SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A36979

COVER

ASSY - timing gear, Includes: Ref. 2 - 6

1шт.

2

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - governor shaft

2шт.

3

A30011

SEAL

- dust, governor shaft (3/8 x 13/16 x 3/8" felt)

1шт.

4

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

5

A36609

OIL SEAL

- oil, crankshaft, front (2 x 3 x 1/2")

1шт.

6

A30016

FITTING

PLUG - pipe, 1/8" slotted

1шт.

7

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

3шт.

8

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex.

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

11

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

2шт.

12

92-6

LOCK WASHER,3/8"

10шт.

13

A29442

RING

- dowel, Serial Range: cover-block

2шт.

14

A38226

GASKET

- cover to block (Replaces A38226)

1шт.

15

A29957

SHAFT

ASSY - governor

1шт.

16

G37066

GEAR

ASSY. - camshaft (includes governor weight)

1шт.

17

G45793

ROD

- governor control

1шт.

18

G45792

STOP

GUIDE - control rod

1шт.

19

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

21

195-521

WASHER,5/16", SAE

- (11/32 x 11/16 x 1/16")

2шт.

22

A37005

SPRING

- inner, governor speed (red)

1шт.

23

G48515

SPRING

- outer, governor speed (blue w/std. clutch)

1шт.

23

G48511

SPRING

- outer, governor speed (black w/C-O-M)

1шт.

24

A30125

SHAFT

& LEVER ASSY. - governor, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

LEVER (Order A30125)

1шт.

26

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

27

211-5

BALL,3/16" Dia

- thrust, governor shaft (.) 3/16" Dia

1шт.

28

A30012

SPACER

- thrust, governor shaft

1шт.

29

G45310

ROD ASSY.

- governor to carburetor, Includes: Ref. 30 and 31

1шт.

30

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

31

A10329

BALL JOINT,1/4" - 28 x 1"

1шт.

32

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
