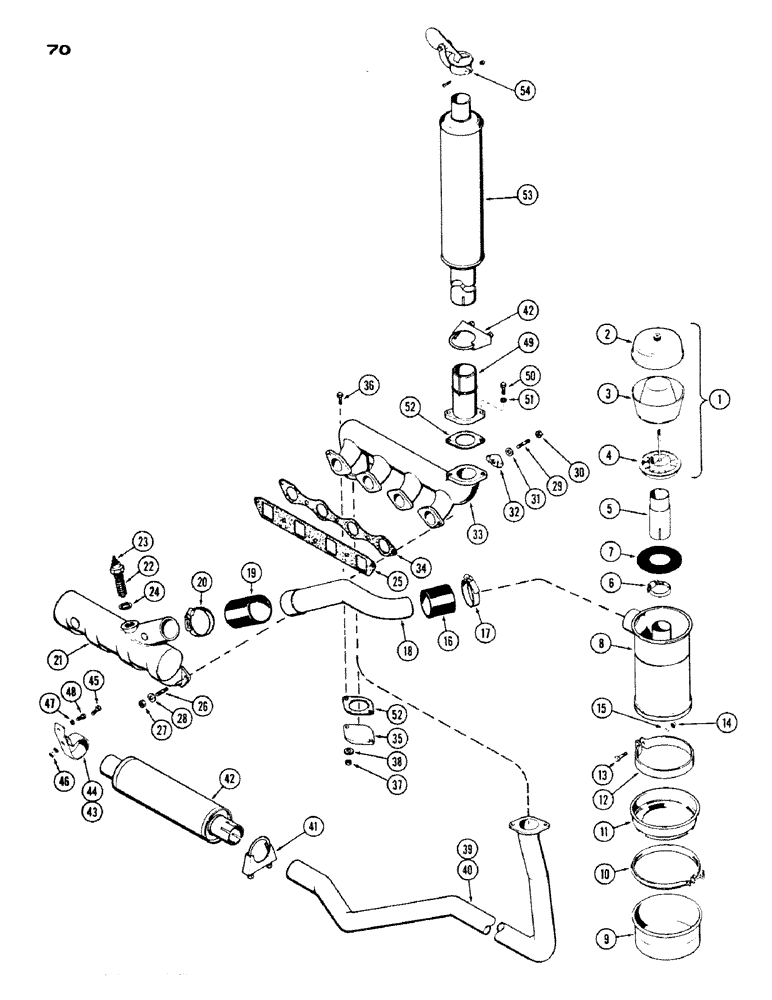

Запчасти Case IH 530 (070) - AIR CLEANER, MANIFOLD, MUFFLER, 530, 188, DIESEL ENGINE (02) - ENGINE

1

A24439

CLEANER

PRE-CLEANER ASSY., Includes: Ref. 2 - 4

1шт.

2

73187

COVER

1шт.

3

73186

HOUSING

BODY

1шт.

4

NSS

NOT SOLD SEPARAT

BASE ASSY. - pre-cleaner

1шт.

5

A24437

EXTENSION

- pipe, pre-cleaner

1шт.

6

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - extension to air cleaner

1шт.

7

A36856

SHIELD

- extension opening

1шт.

8

G45260

AIR CLEANER ASSY., Includes: Ref. 9 - 11

1шт.

9

R15279

CUP ASSY.

CUP - oil, outer (Replaces G46327)

1шт.

10

G45333

CLAMP

- oil cup

1шт.

11

R15280

CUP

- oil, inner (Replaces G46326)

1шт.

12

A16898

BAND

- mounting, air cleaner

1шт.

13

173-216

SCREW,Sl Rnd Hd, 1/4" - 20 x 1 3/4"

- 1/4 x 3/4" N.C. rd. hd.

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

G46338

INTAKE AIR HOSE,2.25" ID x 3.00", SAE 20R2

- Tube to air cleaner 2.25" ID x 3.00", SAE 20R2

1шт.

17

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (2-5/16" to 3-1/4")

2шт.

18

G46270

TUBE - air cleaner to manifold 2.25" OD

1шт.

19

A30098

HOSE,2.50" ID x 2.81", SAE 20R2 CLASS R

RADIATOR HOSE, , Tube to Manifold 2.50" ID x 2.81", SAE 20R2 CLASS R

1шт.

20

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (2-5/16" to 3-1/4")

3шт.

21

A35781

MANIFOLD - intake

1шт.

22

A37775

HEATER

- intake manifold

1шт.

23

129-503

NUT,1/4"-20, Brass

4шт.

24

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.

25

G46871

GASKET

- intake manifold

1шт.

26

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4")

4шт.

27

25-106

NUT,3/8"-16, G5

- 3/8" N. C. hex.

5шт.

28

92-6

LOCK WASHER,3/8"

5шт.

29

A35175

STUD

- manifold clamp (3/8" N.C. x 2-7/16")

6шт.

30

232-4115

LOCK NUT,5/16"-18, GC

NUT - 3/8" N. C. hex. (Seez-Pruf)

5шт.

31

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

5шт.

32

A35028

CLAMP

- manifold

6шт.

33

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust

1шт.

34

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

35

A38188

PLATE

COVER - exhaust opening (Replaces G2044)

1шт.

36

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N. C. hex. hd.

2шт.

37

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Seez-Pruf)

2шт.

38

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

2шт.

39

A36908

PIPE, EXHAUST SYSTEM

PIPE - exhaust, underneath (Std. 4 wheel)

1шт.

40

A36910

PIPE

- exhaust, underneath (Gen. Purpose)

1шт.

41

A27077

CLAMP

-, Serial Range: pipe-muffler

1шт.

42

G45287

MUFFLER

- underneath

1шт.

43

A36909

BRACKET

CLAMP - rear, muffler (Std. 4 wheel)

1шт.

44

A35178

BRACKET

CLAMP - rear, muffler (Gen. Purpose)

1шт.

45

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

46

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N. C. hex.

1шт.

47

92-5

LOCK WASHER,5/16"

2шт.

48

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

49

G2095

FITTING

OUTLET - exhaust, upright muffler

1шт.

50

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

50

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(w/Case-o-matic) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

51

92-6

LOCK WASHER,3/8"

2шт.

52

G46853

MANIFOLD GASKET

- exhaust outlet

2шт.

53

G45239

MUFFLER

- upright

1шт.

54

G45048

CAP

- weather, upright muffler

1шт.
