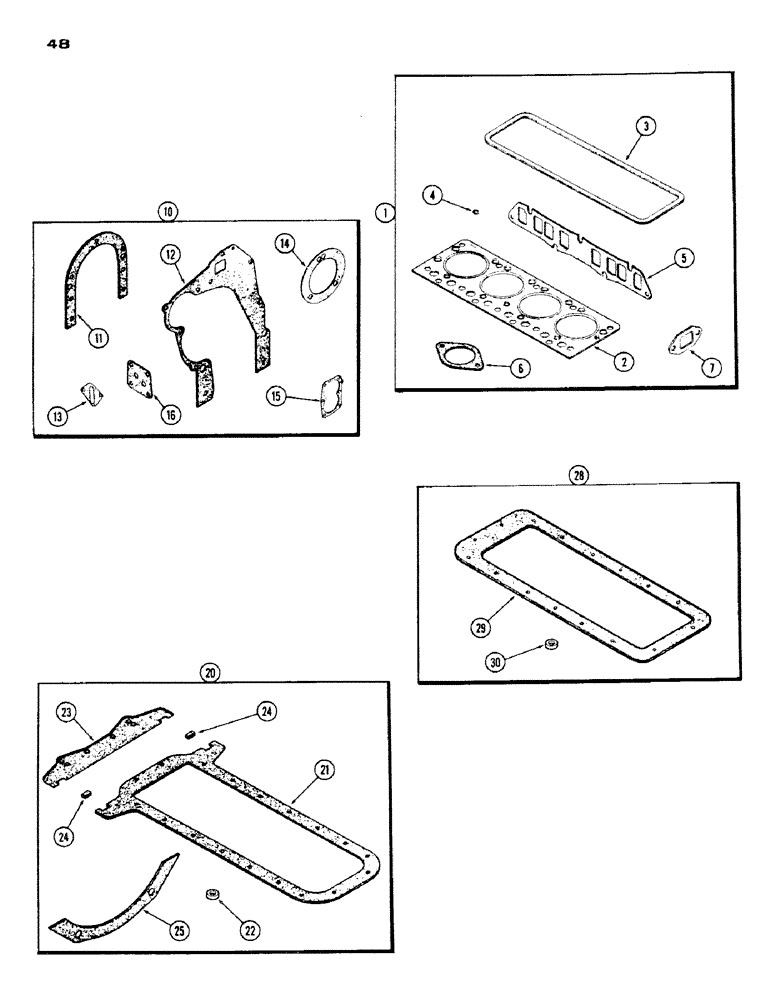

Запчасти Case IH 530 (048) - ENGINE GASKET KITS, 530, 159, SPARK IGNITION ENGINE (02) - ENGINE

1

G11963

GASKET

KIT - valve grind, Includes: Ref. 2 - 7

1шт.

For complete engine overhaul Order: G11963, A41465 & A40711 or A40710

1шт.

2

G46870

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

3

A30009

GASKET

- valve cover

1шт.

4

G46851

SEAL

- valve stem

4шт.

5

A30030

GASKET

- manifold

1шт.

6

G46826

GASKET

- carburetor

1шт.

7

A30003

GASKET

- water outlet elbow

1шт.

10

A41465

GASKET

KIT - cylinder block, (Replaces G11916), Includes: Ref. 11 - 16

1шт.

For complete engine overhaul Order: G11963, A41465 & A40711 or A40710

1шт.

11

A38196

GASKET

- rear oil seal retainer

1шт.

12

A38226

GASKET

- timing gear cover

1шт.

13

G46902

GASKET

- fuel pump opening

1шт.

14

A38083

GASKET

- water pump

1шт.

15

G46852

GASKET

- oil pump cover

1шт.

116

G46854

GASKET

- oil filter bracket

1шт.

20

A40711

GASKET KIT

- oil pan (w/Case-O-Matic), Includes: Ref. 21 - 25

1шт.

For complete engine overhaul Order: G11963, A41465 & A40711 or A40710

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40711)

1шт.

22

A58608

GASKET

- drain plug (3/4" I.D.)

1шт.

23

A36653

GASKET

- radius rod support

1шт.

24

A11604

OIL PAN GASKET SET

- rear, oil pan support

2шт.

25

G46913

GASKET

- block to torque tube

1шт.

28

A40710

KIT

GASKET KIT - oil pan (w/dry clutch), Includes: Ref. 29 and 30

1шт.

For complete engine overhaul Order: G11963, A41465 & A40711 or A40710

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40710)

1шт.

30

A58608

GASKET

- drain plug (3/4" I.D.)

1шт.
