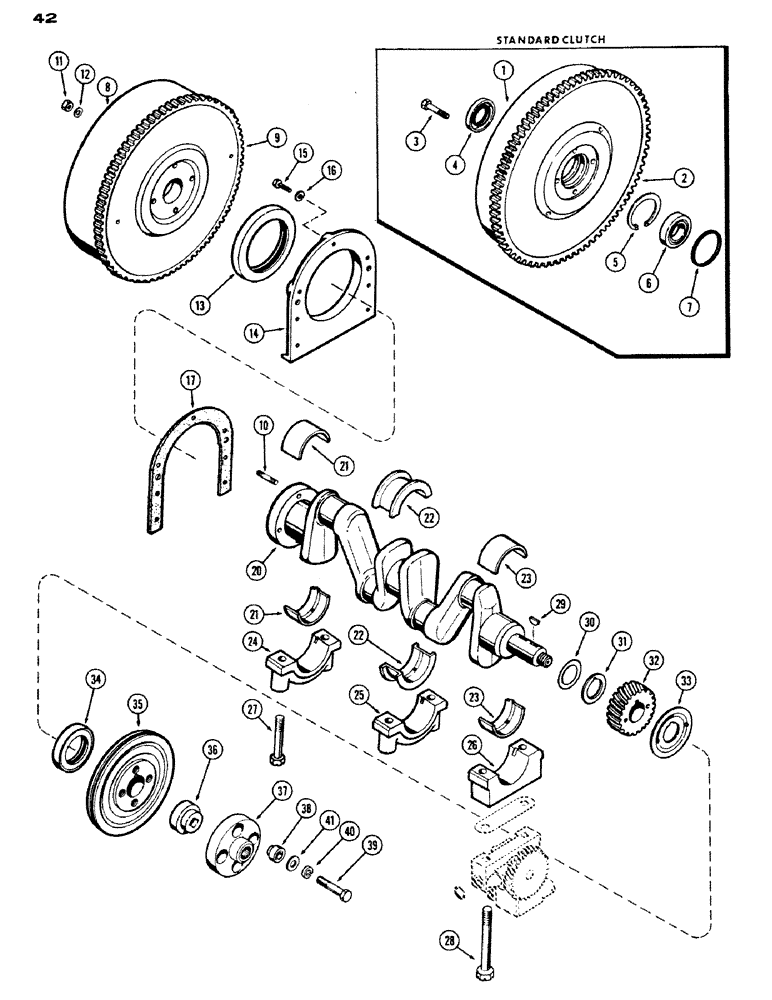

Запчасти Case IH 530 (042) - CRANKSHAFT AND FLYWHEEL, 530, 159, SPARK IGNITION ENGINE (02) - ENGINE

1

A144358

FLYWHEEL

ASSY - (w/dry clutch drive), Includes: Ref. 2

1шт.

2

G11710

GEAR

- ring (135T)

1шт.

3

A37216

BOLT

- flywheel to crankshaft (w/dry clutch) (7/16 x 1-5/8" N.F. hex.)

4шт.

4

A37647

OIL SEAL

- oil, flywheel (w/dry clutch)(1-3/16 x 2-5/32 x 1/4")

1шт.

5

49482

SNAP RING,2.125", Int, #212

RING- snap, , brg (with dry clutch) 2.125", Int, #212

1шт.

6

T17389

BALL BEARING,1.1811" ID x 2.1654" OD x 0.5118"

BEARING - flywheel (w/dry clutch)

1шт.

7

A37646

O-RING,2.237" ID x 2.443" OD x 0.103"

RING - seal, flywheel (w/dry clutch) (2-7/23 x 2-7/16 x 7/64")

1шт.

8

G11860

FLYWHEEL

ASSY. (w/Case-O-Matic), Includes: Ref. 9

1шт.

9

G11710

GEAR

- ring (135T)

1шт.

10

A29434

STUD

- flywheel to crankshaft (w/C-O-M) (7/16" N.F. x 1-3/4")

4шт.

11

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

12

92-7

LOCK WASHER,7/16"

4шт.

13

A39111

OIL SEAL

- oil, crankshaft, rear (4 x 5 x 1/2") (Replaces A36610)

1шт.

14

A38390

RETAINER

- oil seal, rear (Replaces G2017)

1шт.

15

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

15

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

17

A38196

GASKET

- retainer, rear oil seal (Replaces G46802)

1шт.

20

A37210

CRANKSHAFT

1шт.

21

G37051

KIT

LINERS - rear bearing (Std.) (Set of 2)

1шт.

21

G37052

KIT

LINERS - rear bearing (.002" undersize) (Set of 2)

1шт.

21

A42322

FIP KIT

LINERS - rear bearing (.010" undersize) (Set of 2)

1шт.

21

G37053

KIT

LINERS - rear bearing (.020" undersize) (Set of 2)

1шт.

21

G37054

KIT

LINERS - rear bearing (.040" undersize) (Set of 2)

1шт.

22

G37047

KIT

LINERS - center bearing (Std.) (Set of 2)

1шт.

22

G37048

KIT

LINERS - center bearing (.002" undersize) (Set of 2)

1шт.

22

A42321

FIP KIT

LINERS - center bearing (.010" undersize) (Set of 2)

1шт.

22

G37049

KIT

LINERS - center bearing (.020" undersize) (Set of 2)

1шт.

22

G37050

KIT

LINERS - center bearing (.040" undersize) (Set of 2)

1шт.

23

G37043

KIT

LINERS - front bearing (Std.) (Set of 2)

1шт.

23

G37044

KIT

LINERS - front bearing (.002" undersize) (Set of 2)

1шт.

23

A42320

BEARING LINER

LINERS - front bearing (.010" undersize) (Set of 2)

1шт.

23

G37045

KIT

LINERS - front bearing (.020" undersize) (Set of 2)

1шт.

23

G37046

KIT

LINERS - front bearing (.040" undersize) (Set of 2)

1шт.

24

G2037

CAP

- rear bearing liners

1шт.

25

G2036

CAP

- center bearing liners

1шт.

26

G2035

CAP

- front bearing liners

1шт.

27

G49037

BOLT

- bearing cap (1/2" x 3")

4шт.

28

G49059

BOLT

- oil pump & frt. brg. cap (1/2 x 4-3/4")

2шт.

29

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

30

A29293

SHIM,.010" Thk

Thrust .010" Thk

1шт.

31

A29294

BUSHING

SPACER - thrust

1шт.

32

A29263

GEAR

- crankshaft (24T)

1шт.

33

A29259

SLINGER

- oil

1шт.

34

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front (2 x 3 x 1/2") (Replaces A36609)

1шт.

35

G11342

X

PULLEY - fan & generator drive

1шт.

36

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

37

D140524

FLEXIBLE COUPLING,13T

COUPLING ASSY - flexible, Includes: Ref. 38

1шт.

38

G36905

BLOCK

BUSHING - flex

4шт.

39

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

40

92-7

LOCK WASHER,7/16"

4шт.

41

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- (29/64 x 3/4" x 16 ga.)

4шт.
