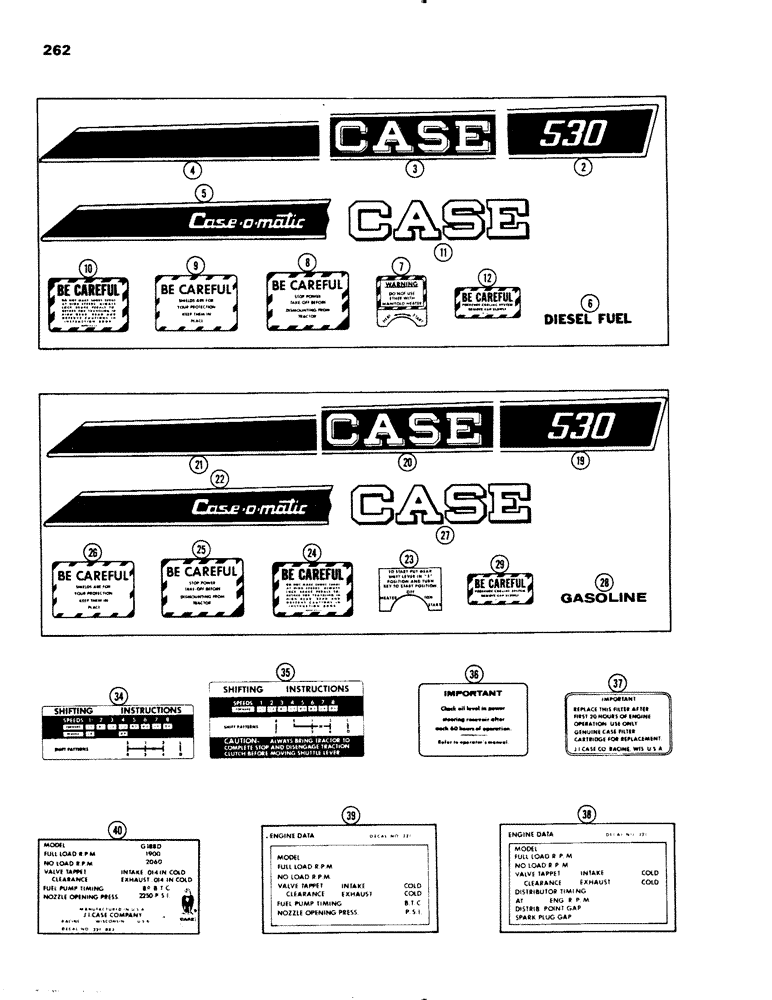

Запчасти Case IH 530 (262) - 530 DECALS, 1ST USED TRAC. SER. NO. 8347504, DIESEL ENGINE (09) - CHASSIS/ATTACHMENTS

A41595

KIT

DECAL KIT - diesel (for complete machine set also order from loose decals ref. 34 thru 40), Includes: Ref. 2 - 12

1шт.

2

321-1142

DECAL

530 - right hand (hood cap) (vinyl)

1шт.

2

321-1143

DECAL

530 - left hand (hood cap) (vinyl)

1шт.

3

321-1144

DECAL

CASE - right hand (hood) (vinyl)

1шт.

3

321-1145

DECAL

CASE - left hand (hood) (vinyl)

1шт.

4

321-1154

DECAL

PLAIN STRIP - right hand (hood) (vinyl)

1шт.

4

321-1155

DECAL

PLAIN STRIP - left hand (hood) (vinyl)

1шт.

5

321-1148

DECAL

CASE-O-MATIC - right hand (hood) (vinyl)

1шт.

5

321-1149

DECAL

CASE-O-MATIC - left hand (hood) (vinyl)

1шт.

6

321-230

DECAL

DIESEL FUEL - fuel tank

1шт.

7

321-422

DECAL

STARTING INSTRUCTIONS - (inst. panel)

1шт.

8

321-605

DECAL

BE CAREFUL - P.T.O. (tool box)

1шт.

9

321-608

DECAL

BE CAREFUL - P.T.O. shield

1шт.

10

321-606

DECAL

CAUTION - (inst. panel)

1шт.

11

321-287

DECAL

CASE - seat

1шт.

12

321-122

DECAL

BE CAREFUL - radiator cap

1шт.

A41594

KIT

DECAL KIT - gasoline (for complete machine set also order from loose decals ref. 34 thru 40), spark ignition engine, Includes: Ref. 19 - 28

1шт.

19

321-1142

DECAL

530 - right hand (hood cap) (vinyl), spark ignition engine

1шт.

19

321-1143

DECAL

530 - left hand (hood cap) (vinyl), spark ignition engine

1шт.

20

321-1146

DECAL

CASE - right hand (hood) (vinyl), spark ignition engine

1шт.

20

321-1147

DECAL

CASE - left hand (hood) (vinyl), spark ignition engine

1шт.

21

321-1154

DECAL

PLAIN STRIP - right hand (hood) (vinyl), spark ignition engine

1шт.

21

321-1155

DECAL

PLAIN STRIP - left hand (hood) (vinyl), spark ignition engine

1шт.

22

321-1148

DECAL

CASE-O-MATIC - right hand (hood) (vinyl), spark ignition engine

1шт.

22

321-1149

DECAL

CASE-O-MATIC - left hand (hood) (vinyl), spark ignition engine

1шт.

23

321-666

DECAL

STARTING INSTRUCTIONS - (inst. panel), spark ignition engine

1шт.

24

321-606

DECAL

CAUTION - (inst. panel), spark ignition engine

1шт.

25

321-605

DECAL

BE CAREFUL - P.T.O. (tool box), spark igniton engine

1шт.

26

321-608

DECAL

BE CAREFUL - P.T.O. shield, spark ignition engine

1шт.

27

321-287

DECAL

CASE - seat, spark ignition engine

1шт.

28

321-18

DECAL

GASOLINE - fuel tank, spark ignition engine

1шт.

29

321-122

DECAL

BE CAREFUL - radiator cap, spark ignition engine

1шт.

34

321-1028

DECAL

SHIFTING INSTRUCTIONS - (dual range), miscellaneous decals

1шт.

35

321-1029

DECAL

SHIFTING INSTRUCTIONS - (dual range w/shuttle), miscellaneous decals

1шт.

36

321-695

DECAL

OIL CHANGE - steering pump, miscellaneous decals

1шт.

37

321-367

DECAL

FILTER CHANGE, miscellaneous decals

1шт.

38

321-1356

DECAL

ENGINE DATA - gasoline (w/std. clutch) (replaces 321-891), miscellaneous decals

1шт.

38

321-1358

DECAL

ENGINE DATA - gasoline (w/Case-O-Matic) (replaces 321-892), miscellaneous decals

1шт.

39

321-1371

ENGINE DATA - Diesel (w/std. clutch)(Replaces 321-1109) (1st used eng. ser. no. 2627377), miscellaneous decals

1шт.

39

321-1374

DECAL

ENGINE DATA - Diesel (w/Case-O-Matic) (Replaces 321-1110)(1st used eng. ser. no. 2627377), miscellaneous decals

1шт.

40

321-883

ENGINE DATA - Diesel (w/std. clutch) (used prior to eng. ser. no. 2627377), miscellaneous decals

1шт.

40

321-884

ENGINE DATA - Diesel (w/Case-O-Matic) (used prior to eng. ser. no. 2627377), miscellaneous decals

1шт.
