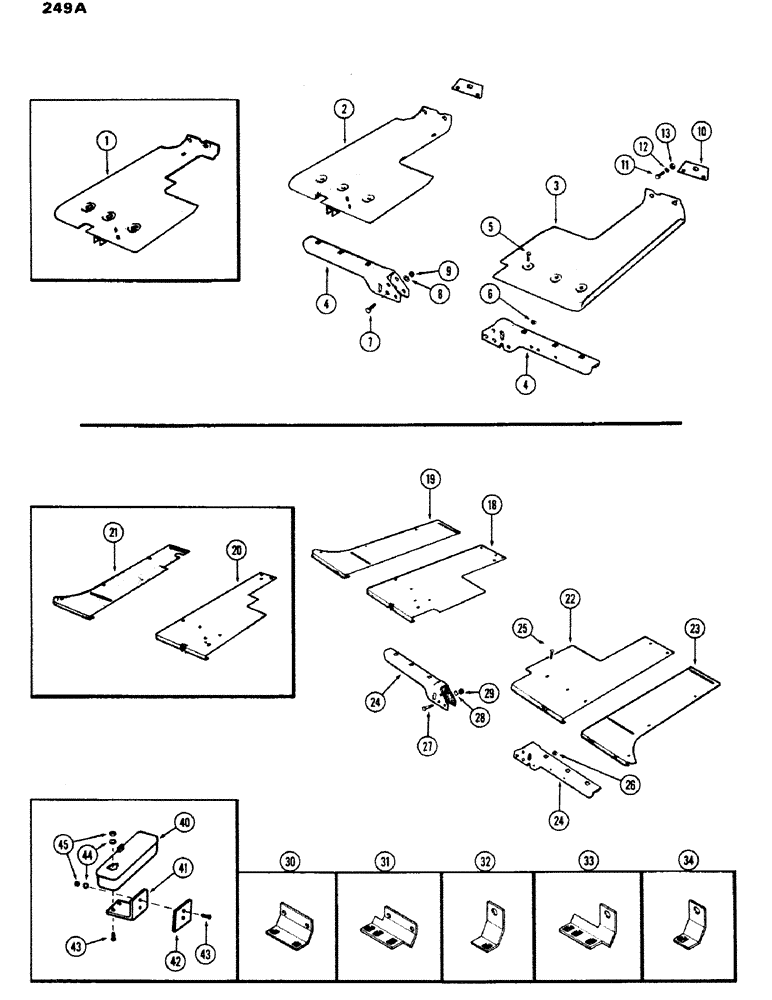

Запчасти Case IH 530 (249A) - PLATFORMS AND SUPPORTS, MODEL 530, 1ST USED TRAC. SER. NO. 8365950 (09) - CHASSIS/ATTACHMENTS

1

A38428

PLATFORM - right hand (w/diff. lock)

1шт.

2

A38430

PLATFORM - right hand (w/out diff. lock)

1шт.

3

A38427

PLATFORM - left hand

1шт.

4

G10752

SUPPORT - platform, front

2шт.

5

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- plat. to frt. supt. (5/16 x 3/4" N.C. Phillips hd.)

6шт.

6

1502286C2

NUT,Floating Cage, 5/16"-18

- cage, 5/16" N.C.

6шт.

7

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Frt. supt. to trans. case Hex, 3/8"-16 x 1 3/4", G5

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

10

G17219

SUPPORT - platform, rear

2шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Platform to rear supt Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

18

G14388

PLATFORM - right hand (w/out diff. lock), Serial Range: -8365950

1шт.

19

G10756

EXTENSION

- R.H. platform (w/out diff. lock), Serial Range: -8365950

1шт.

20

A36603

PLATFORM - right hand (w/diff. lock), Serial Range: -8365950

1шт.

21

A36605

EXTENSION

- R.H. platform (w/diff. lock), Serial Range: -8365950

1шт.

22

G15651

PLATFORM - left hand, Serial Range: -8365950

1шт.

23

G10757

EXTENSION - L.H. platform, Serial Range: -8365950

1шт.

24

G10752

SUPPORT - platform, front, Serial Range: -8365950

2шт.

25

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- plat. to frt. supt. (5/16 x 3/4" N.C. Phillips), Serial Range: -8365950

10шт.

26

1502286C2

NUT,Floating Cage, 5/16"-18

- cage, 5/16" N.C., Serial Range: -8365950

10шт.

27

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Frt. supt. to trans. case Hex, 3/8"-16 x 1 3/4", G5, Serial Range: -8365950

6шт.

28

92-6

LOCK WASHER,3/8"

, Serial Range: -8365950

10шт.

29

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., Serial Range: -8365950

10шт.

30

G10753

SUPPORT

- rear (Gen. Purp.) (w/out diff. lock), Serial Range: -8365950

2шт.

31

A36972

SUPPORT - rear, R.H. (Gen. Purp.) (w/diff. lock), Serial Range: -8365950

1шт.

32

A35170

SUPPORT

- R.H. rear (Std. 4 wheel) (w/out diff. lock), Serial Range: -8365950

1шт.

33

A36970

BRACKET

SUPPORT - R.H. rear (Std. 4 wheel) (w/diff. lock), Serial Range: -8365950

1шт.

34

A35171

SUPPORT

- L.H. rear (Std. 4 wheel), Serial Range: -8365950

1шт.

40

G13138

BOX ASSY. - tools

1шт.

41

A35831

BRACKET - tool box mounting

1шт.

42

A35832

PLATE - reinforcing (on fender), tool box

1шт.

43

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Tool box Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

44

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Tool box 1/4"

4шт.

45

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Tool box

4шт.
