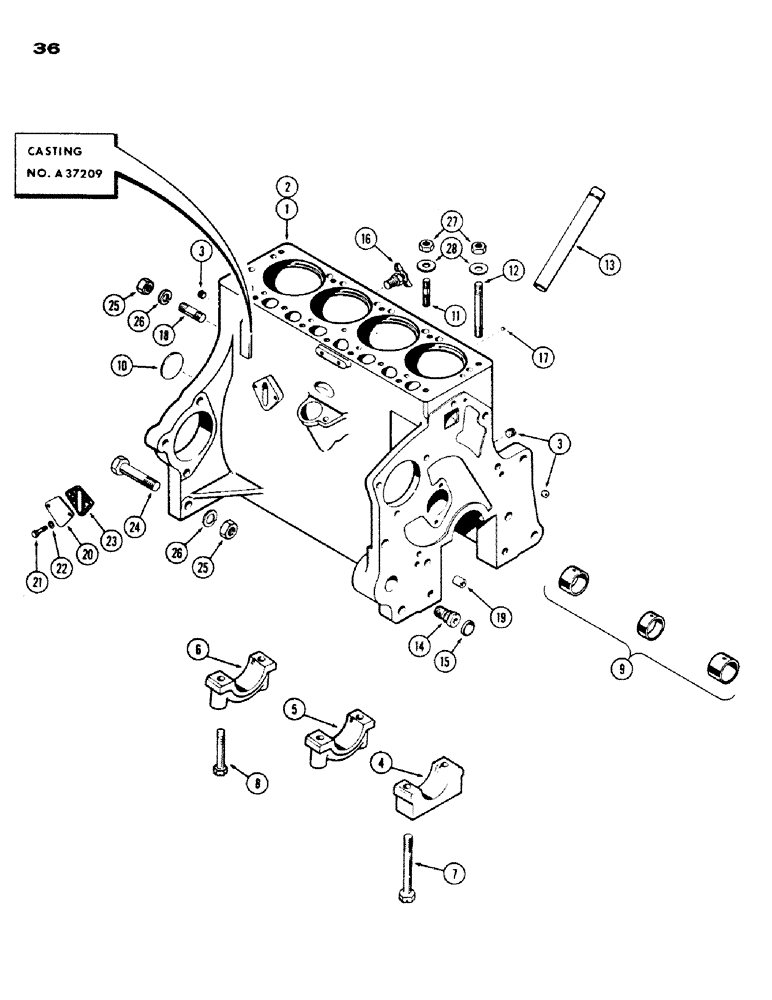

Запчасти Case IH 530 (036) - CYLINDER BLOCK ASSEMBLY, 530,159, SPARK IGNITION ENGINE (02) - ENGINE

1

A41599

SKELETON ENGINE

BLOCK ASSY. - cylinder, short (Casting No. A37209) (incl. crankshaft & brgs., connecting rods & brgs., piston assy., camshaft & oil pump) (Replaces A40815), Includes: Ref. 2 - 19

1шт.

2

A40816

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting #A37209), Includes: Ref. 3 - 15

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

4

G2035

CAP

- crankshaft front bearing

1шт.

5

G2036

CAP

- crankshaft center bearing

1шт.

6

G2037

CAP

- crankshaft front bearing

1шт.

7

G49059

BOLT

- front brg. cap (1/2 x 4-3/4")

2шт.

8

G49037

BOLT

- bearing cap (1/2 x 3")

4шт.

9

A41225

KIT

BUSHING SET - camshaft (pre-sized)

1шт.

10

A39241

PLUG,Exp, 2.12" dia

- rear (2-1/8" dia.)

1шт.

11

A30057

STUD

- head (1/2" N.F. x 2")

9шт.

12

A29436

STUD

- head (1/2" N.F. x 5-7/8")

5шт.

13

A37149

TUBE

- dipstick & oil filler

1шт.

14

A153552

ADAPTER

- oil filter

1шт.

15

A37207

X

PLUG - filter adapter

1шт.

16

A23656

COCK, DRAIN

DRAIN COCK

1шт.

17

221-850

PLUG,Hex Soc, 1/16"-27

- pipe, 1/16" ctsk. sckt. hd.

1шт.

18

A29333

STUD

- engine mounting, 5/8" N.F. x 3"

2шт.

19

A29442

RING

- dowel, timing gear cover

2шт.

20

G11702

COVER

- fuel pump opening

1шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

G46902

GASKET

- cover

1шт.

24

A30099

X

BOLT - engine mounting 5/8 x 3-1/2" N.F. hex.

2шт.

25

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

4шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

27

A30021

NUT

- head stud 1/2" N.F.

14шт.

28

G49404

WASHER

- head stud

14шт.
