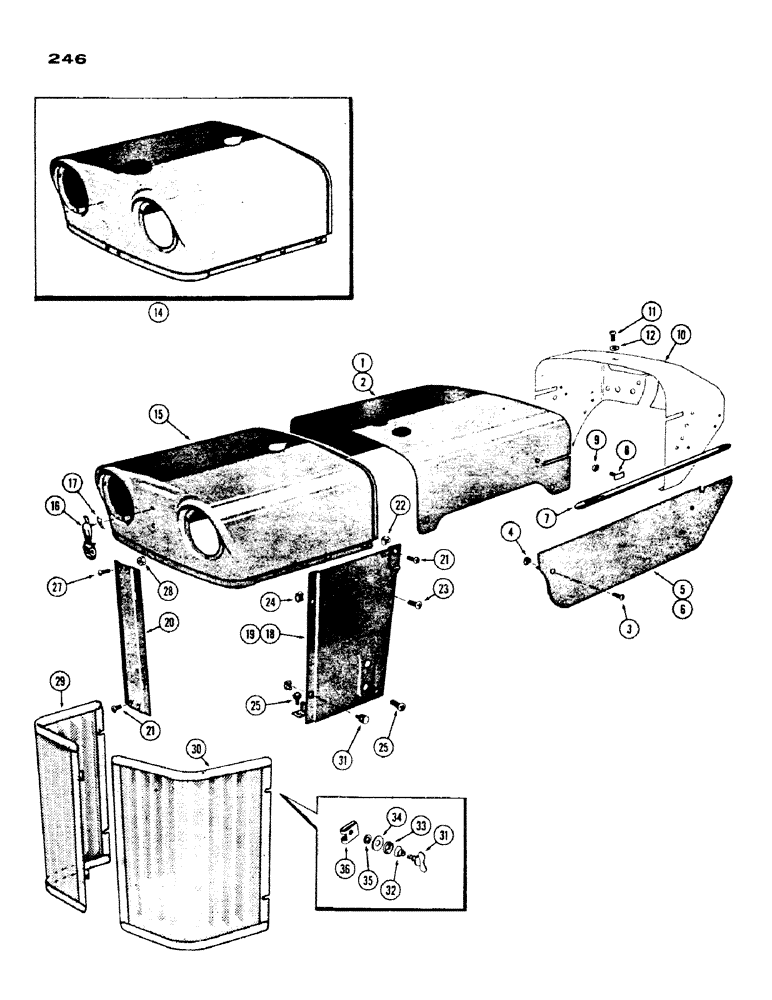

Запчасти Case IH 530 (246) - HOOD, GRILLE AND PANELS-530 (09) - CHASSIS/ATTACHMENTS

1

A37819

HOOD (diesel w/upright muffler)

1шт.

1

A37820

HOOD (gas w/upright muffler)

1шт.

2

A37821

HOOD (diesel w/underneath muffler)

1шт.

2

A37822

HOOD (gas w/underneath muffler)

1шт.

3

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

- 5/16 x 5/8" N. F. truss hd.

2шт.

4

131-123

NUT,Ret, 5/16"-24

- cage, 5/16" N. F. (on fuel tank)

2шт.

5

G15618

PANEL - side, R. H. rear (L. H. shown)

1шт.

6

G15619

PANEL - side, L. H. rear

1шт.

7

G46259

MOLDING

STRIP - chrome, fuel tank

2шт.

8

A11459

BOLT

"T" BOLT - chrome strip

4шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. (Keps)

4шт.

10

A36678

PANEL - instrument (w/adj. frt. axle)

1шт.

10

A36679

PANEL - instrument (w/dual or single front)

1шт.

11

175-431

SCREW - 1/4 x 3/8" truss hd.

3шт.

12

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

3шт.

14

A38774

CAP - grille, radiator (for 470 & 570 models)

1шт.

15

A36685

CAP - grille, radiator (for 430 & 530 models)

1шт.

16

A24526

MEDALLION - Case eagle (used w/A36685 cap)

1шт.

17

131-138

PUSH-ON NUT

- 1/4" Tinnerman (used w/A24526 medallion)

1шт.

18

A36680

PANEL - R. H. side, radiator (L.H. shown)

1шт.

19

A36681

PANEL - L. H. side, radiator

1шт.

20

G30275

BRACE - center, radiator grille

1шт.

21

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4 x 1/2" N.C. truss hd.

8шт.

22

131-102

SPRING NUT,Ret, 1/4"-20

4шт.

23

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

- 5/16 x 5/8" N.F. truss hd. (Replaces 174-429)

2шт.

24

131-123

NUT,Ret, 5/16"-24

- cage, 5/16" N.F. (to radiator)

2шт.

25

175-437

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" N.C. truss hd.

4шт.

27

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. truss hd.

2шт.

28

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

29

A36686

GRILLE

- R.H., radiator

1шт.

30

A36687

GRILLE - L.H., radiator

1шт.

31

A32881

STUD

- grille lock

4шт.

32

A32882

VALVE SPRING

SPRING - lock stud

4шт.

33

A32883

WASHER

- wear, grille stud

4шт.

34

A34012

WASHER

- grille stud

4шт.

35

A36041

RETAINER

RING - snap, stud retaining

4шт.

36

A36042

CLIP

RECEPTACLE - grille stud

4шт.
