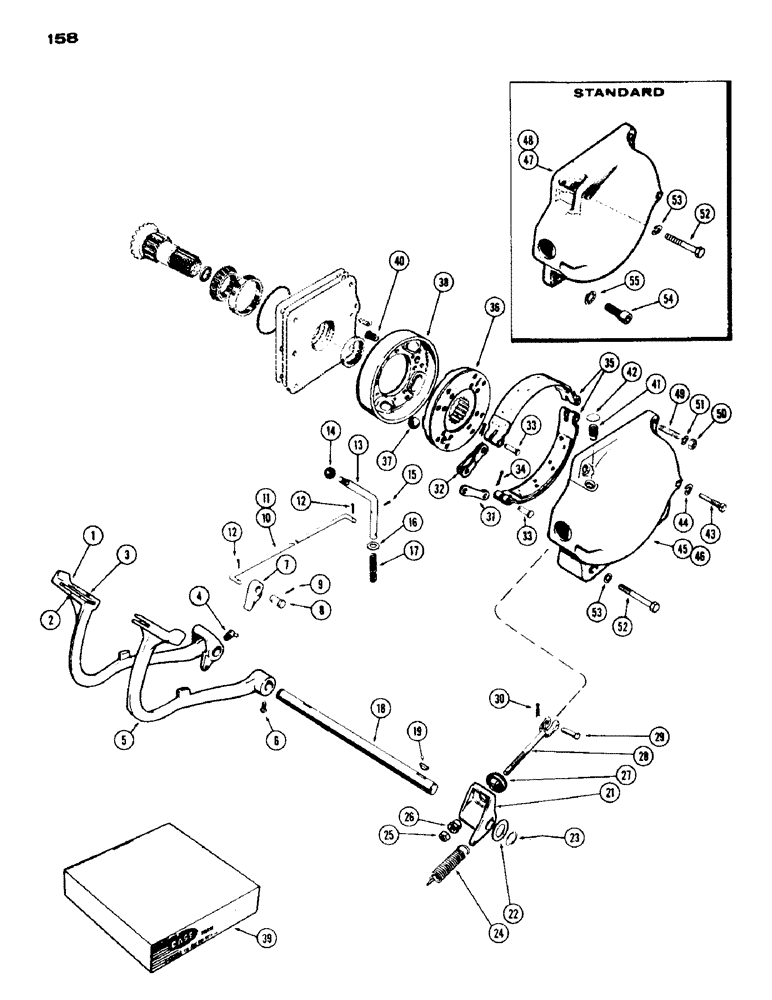

Запчасти Case IH 530 (158) - BRAKE SYSTEM, 530 SERIES (06) - POWER TRAIN

1

G13012

PEDAL

ASSY. - R.H. brake, Includes: Ref. 2 and 3

1шт.

2

A29086

INTERLOCK - pedal

1шт.

3

46-420

RIVET - 1/4" x 1-1/4" ctsk. hd.

1шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8", 67-1/2 deg.

1шт.

5

G13013

PEDAL

ASSY. - L.H. brake, Includes: Ref. 6

1шт.

6

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - set, 3/8" x 5/8" N.C. sq. hd. cup pt.

1шт.

7

G16604

BRAKE LINE

PAWL - brake lock

1шт.

8

A30119

AXLE PIN

PIN - pawl pivot

1шт.

9

132-48

COTTER PIN,1/8" x 1"

PIN - cotter, 3/32" x 5/8"

1шт.

10

G10764

DRAG LINK

LINK - brake lock (See Ref. 11)

1шт.

11

A36606

LINK - brake lock (w/differential lock)

1шт.

12

132-25

COTTER PIN,3/32" x 5/8"

PIN - cotter, 1/8" x 1"

2шт.

13

G10765

LEVER

- hand, brake release

1шт.

14

G10766

KNOB

- hand lever

1шт.

15

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

16

95-8

WASHER,1/2"

- plain 1/2"

2шт.

17

G10707

VALVE SPRING

SPRING - release lever

1шт.

18

G10708

SHAFT

- cross, brake pedal

1шт.

19

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - brake pedal & lever

2шт.

21

G1057

LEVER

- L. H. brake

1шт.

22

B18145

WASHER

- retainer, cross shaft

2шт.

23

F62093

RING, SNAP

SNAP RING - cross shaft

2шт.

24

G10848

SPRING

- return, pedal & lever

2шт.

25

25-157

JAM NUT,Jam, 7/16"-20, G5

- jam, 7/16" N.F. hex.

2шт.

26

G10709

NUT

- adjusting, brake rod

2шт.

27

G10943

DUST CAP

CAP - dust, brake rod

2шт.

28

G46351

ROD

- brake

2шт.

29

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke, brake rod to link

2шт.

30

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

31

G46345

LINK

- straight, brake actuating

4шт.

32

G46344

LINK

- offset, brake actuating

4шт.

33

G49082

PIN,14.22mm OD x 40.03mm L

-, Serial Range: link-band

2шт.

34

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

35

G45468

BRAKE LINING

BAND - actuating, set of 2 (See Ref. 39)

2шт.

36

NLS

NO LONGER SERVICED

- brake (See Ref. 39)

2шт.

37

211-21

BALL

- actuating, drum (1" dia.)

8шт.

38

G45361

DRUM

- brake actuating (See Ref. 39 and 43)

2шт.

39

A41728

LINING

KIT - lining, brake band

1шт.

39

A41552

LINER

KIT - lining, brake disc

1шт.

40

G48508

SPRING

- disc return

4шт.

41

G48507

SPRING

- band return

4шт.

42

41-13

GUARD,Exp, 13/16"

- return spring (3/16" dia.)

4шт.

43

G15801

BOLT

- anchor, actuating band

2шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

45

G1400

COVER - R.H. brake (Gen. Purpose)

1шт.

46

G1401

COVER - L.H. brake (Gen. Purpose)

1шт.

47

G1394

COVER

- R.H. brake (Standard)

1шт.

48

G1395

COVER

- L.H. brake (Standard)

1шт.

49

A29336

STUD

- cover (1/2 x 2-1/2")(4 used std. models)

6шт.

50

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

6шт.

51

92-8

LOCK WASHER,1/2"

6шт.

52

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Cover Hex, 1/2"-13 x 3 3/4", G5

2шт.

53

92-8

LOCK WASHER,1/2"

2шт.

54

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - cover, 1/2 x 1-3/4" hex. sckt. hd. (Standard only)

2шт.

55

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
