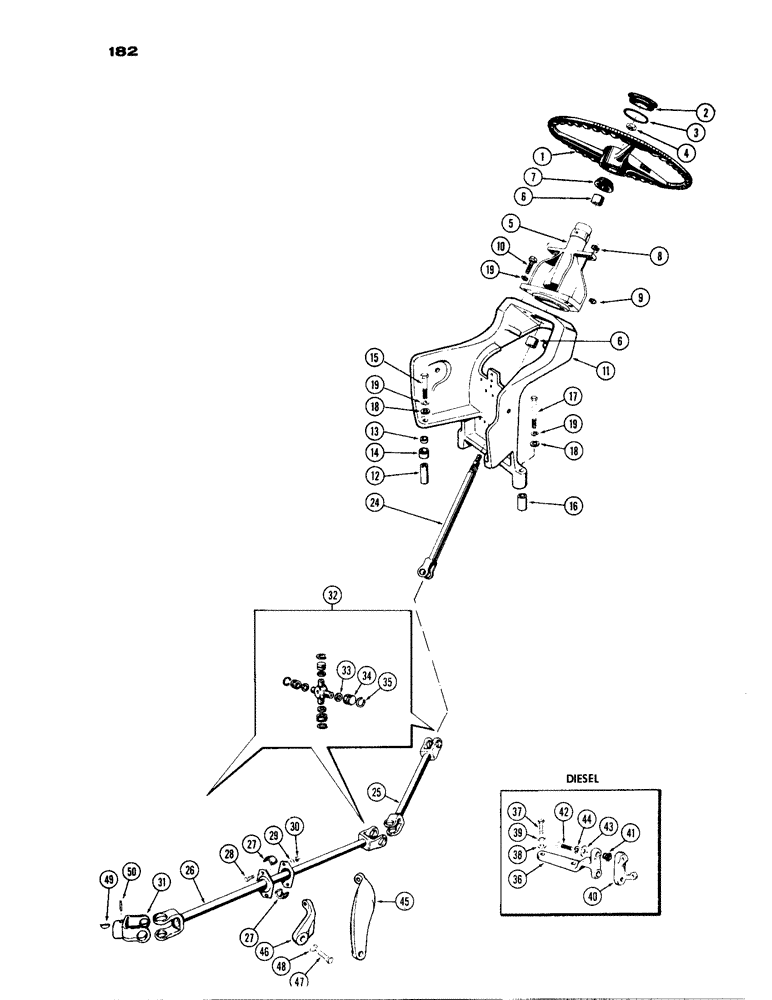

Запчасти Case IH 530 (182) - STEERING WHEEL AND LINKAGE, 530 WITH DUAL OR SINGLE FRONT WHEEL (05) - STEERING

1

A20456

WHEEL (STEERING)

WHEEL - steering

1шт.

2

A20449

EMBLEM CASE/IH

MEDALLION - steering wheel

1шт.

2

A20475

CAP

MEDALLION - steering wheel (w/Power Steering)

1шт.

3

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - medallion (2-1/2 x 2-3/4 x 1/8")

1шт.

4

25-1512

JAM NUT,Jam, 3/4"-10, G5

- wheel ret. (3/4" N. F., half hex.)

1шт.

5

A36525

COLUMN ASSY. - steering, Includes: Ref. 6

1шт.

6

G10741

BUSHING,25.44mm ID x 27mm OD x 34.92mm L

- str. column

2шт.

7

G10742

SEAL

- dust, str. column

1шт.

8

219-11

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, upper (1/4" P.T. str.)

1шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight), lower 1/4"-28 NPT x .54" lg

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Column Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

11

A36178

SUPPORT - steering column

1шт.

12

G49624

SPACER

- support, front (w/dry clutch)(4-7/8" long)

2шт.

12

G49623

SUPPORT TUBE,0.625" OD x 1.255" L

SPACER - support, front (w/torque conv.)(1-1/4" long)

2шт.

13

G11270

SPACER

SLEEVE - support, front (3/8 x 5/8 x 1/4")

2шт.

14

G45343

COMPOSITE RING

BUSHING ASSY. - support front (w/rubber insert)

2шт.

15

15-6104

X

BOLT - (use w/G49624 spacer)(3/8 x 6-1/2" N.C. hex.)

2шт.

15

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- (used w/G49623 spacer)(3/8 x 3" N.C. hex.)

2шт.

16

A35627

BUSHING

SPACER - support, rear (w/gas eng.)(3/8" long)

2шт.

16

G49622

SPACER,5/8" Tube x 1 7/16"

- support, rear (w/diesel eng.)(1-7/16" long)

2шт.

17

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- rear support (3/8 x 2-3/4" N.C. hex.)

2шт.

18

195-522

WASHER,5/16"

- (3/8 x 3/4 x 5/64")

4шт.

19

92-6

LOCK WASHER,3/8"

7шт.

24

G45261

SHAFT - steering, upper

1шт.

25

G45262

SHAFT - steering, intermediate

1шт.

26

G45263

SHAFT ASSY. - steering, lower (diesel)(36-1/2" long), Includes: Ref. 27 - 30

1шт.

26

G45237

SHAFT ASSY. - steering, lower (gas)(35-1/2" long), Includes: Ref. 27 - 30

1шт.

27

G17025

CYLINDER END CAP

BEARING - half shell

2шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Brg. flange Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

29

92-5

LOCK WASHER,5/16"

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

31

G10897

YOKE

- universal joint, front

1шт.

32

A30435

KIT

UNIVERSAL JOINT ASSY., Includes: Ref. 33 - 35

3шт.

33

A30766

WASHER - cork

4шт.

34

NSS

NOT SOLD SEPARAT

BEARING - (Order A30435)

4шт.

35

A31149

RING, SNAP

RING - snap, brg. ret.

4шт.

36

G1379

BRACKET - brg. support (diesel)

1шт.

37

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Bracket Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

38

95-5

WASHER,3/8" x 7/8" x .083"

- (5/16" small flat)

2шт.

39

92-5

LOCK WASHER,5/16"

2шт.

40

G1380

SUPPORT - bearing (diesel)

1шт.

41

G45343

COMPOSITE RING

BUSHING ASSY. - support (diesel)(w/rubber insert)

2шт.

42

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- support (3/8 x 1-1/2" N. C. hex.)

2шт.

43

95-6

WASHER,3/8"

- ( small flat) 3/8"

2шт.

44

92-6

LOCK WASHER,3/8"

2шт.

45

G1342

SUPPORT - bearing (gas)(w/torque conv.)

1шт.

46

G1343

SUPPORT - bearing (gas)(w/dry clutch)

1шт.

47

15-1020

X

BOLT - support (5/8 x 1-1/4" N. C. hex.)

1шт.

48

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

49

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Yoke to worm shaft #15, 1/4" x 1"

1шт.

50

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Yoke to worm shaft 1/4" x 1 1/2", Slotted

1шт.
