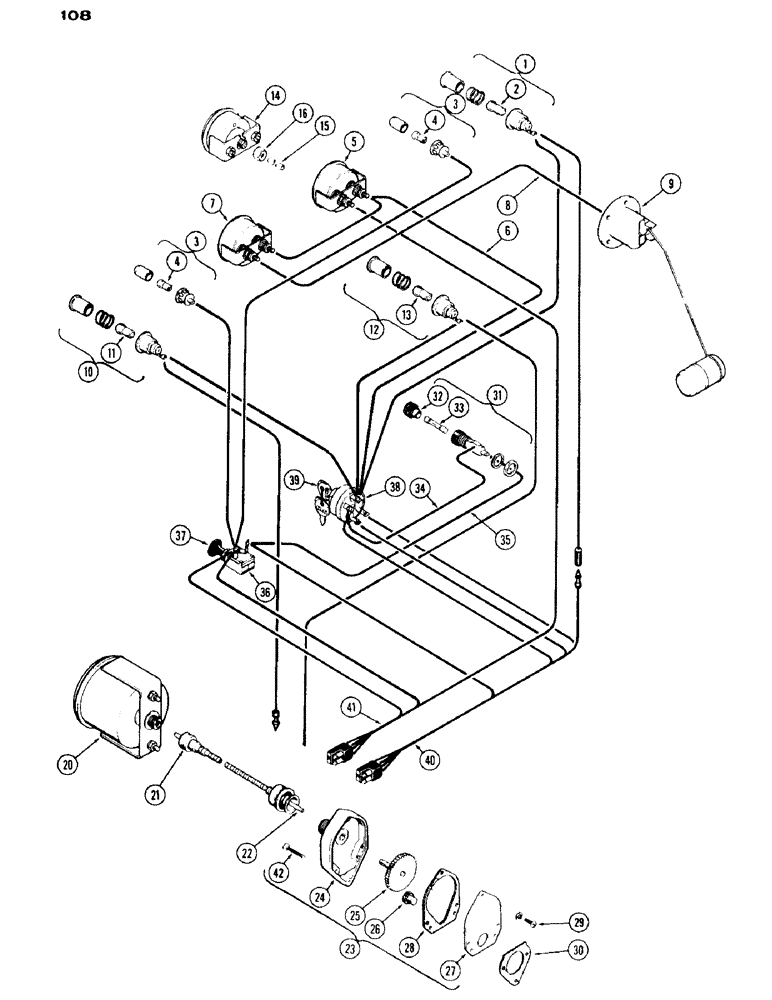

Запчасти Case IH 530 (108) - INSTRUMENTS AND WIRING, 530 SERIES, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A24085

LAMP

ASSY. - warning, generator, Includes: Ref. 2

1шт.

2

A24354

BULB

- warning lamp

1шт.

3

A24087

LAMP BASE

LAMP ASSY. - instrument panel, Includes: Ref. 4

2шт.

4

A22349

BULB

- panel lamp

1шт.

5

A24080

GAUGE

ASSY. - engine temperature

1шт.

6

A24078

ELECTRICAL WIRE

WIRE - temp. gauge to ignition switch

1шт.

7

A24079

GAUGE ASSY.

- fuel

1шт.

8

A11783

ELECTRICAL WIRE

WIRE - fuel gauge

2шт.

9

A23480

SENDER UNIT

UNIT - fuel sending

1шт.

10

A24084

LAMP

ASSY. - engine oil pressure, Includes: Ref. 11

1шт.

11

A24354

BULB

- oil pressure lamp

1шт.

12

A32145

LAMP BASE

LAMP ASSY. - coverter temp. (Case-O-Matic), Includes: Ref. 13

1шт.

13

A24354

BULB

- converter temp. lamp

1шт.

14

A23676

GAUGE

ASSY. - clutch pressure (C.O.M)

1шт.

15

G46292

TUBE,0.125" OD x 28" L

- clutch pressure gauge

1шт.

16

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - clutch pressure tube

1шт.

20

A36745

FORK

TACHOMETER ASSY. - (std. trans.)

1шт.

20

A36746

TACHOMETER

ASSY. - (Dual Range trans.)

1шт.

20

A36747

TACHOMETER ASSY. - (Tripl range trans.)

1шт.

21

G45347

PIPE CLAMP

CABLE ASSY. - tachometer, Includes: Ref. 22

1шт.

22

A20260

X

SHAFT - tachometer drive

1шт.

23

A36818

DRIVE

ASSY. - tachometer, Includes: Ref. 24 - 29

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - (Order A36818)

1шт.

25

A36522

GEAR WHEEL

GEAR - driven

1шт.

26

G46306

GEAR WHEEL

GEAR - drive

1шт.

27

G46307

COVER - tachometer housing

1шт.

28

G46882

GASKET

-, Serial Range: covet-housing

1шт.

29

187-1108

SCREW - cover (#8-32 x 3/8" pan hd.)

3шт.

30

G46878

GASKET

-, Serial Range: tachometer-generator

1шт.

31

A22874

HOLDER

ASSY. - fuse, Includes: Ref. 32

1шт.

32

A10958

CAP

- fuse holder

1шт.

33

223-20

FUSE,20 Amp, Type SFE

- (20 amp)

1шт.

34

A22876

ELECTRICAL WIRE

WIRE - fuse to ignition switch

1шт.

35

A22875

ELECTRICAL WIRE

WIRE - fuse to light switch

1шт.

36

G13142

IGNITION SWITCH

SWITCH ASSY. - lights, Includes: Ref. 37

1шт.

37

G13141

KNOB

- light switch

1шт.

38

A24510

SWITCH

ASSY - ignition, w/keys (Diesel) Includes: Ref 39

1шт.

39

A24509

KEY

- ignition switch (Set of 2)

1шт.

40

A24076

PLUG

HARNESS - wire, w/red plug

1шт.

41

A21613

HARNESS

HARENSS - wire, w/black plug

1шт.

42

193-518

SCREW,SEMS, Pan Hd, #8-32 x 1"

- (#8-32 x 1" pan hd.)

3шт.
