Артикул
Название
Примечание
Количество
1
A36195

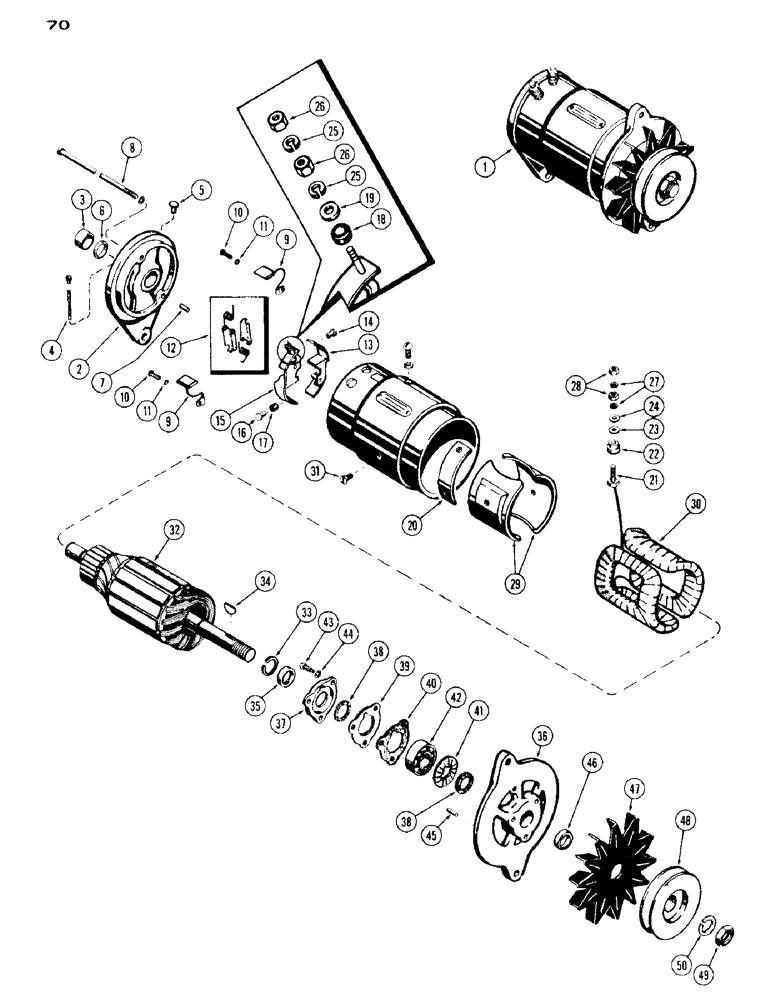

GENERATOR ASSY. - (Prestolite #GJT7403A) For production only. For repairs order A41452, Includes: Ref. 2 - 45
1шт.
1
A41452
GENERATOR ASSY. - (GJT-7403-SN), Includes: Ref. 2 - 45
1шт.
2
A25856
HEAD ASSY. - commutator end, Includes: Ref. 3 - 7
1шт.
3
A25623
BUSHING
- armature shaft
1шт.
4
NSS
NOT SOLD SEPARAT
WICK - oil
1шт.
5
NSS
NOT SOLD SEPARAT
OILER
1шт.
6
NSS
NOT SOLD SEPARAT
RETAINER - oil
1шт.
7
NSS
NOT SOLD SEPARAT
DOWEL - comm. head locating
1шт.
8
NSS
NOT SOLD SEPARAT
BOLT - thru
2шт.
9
A25873
BRUSH ASSY.
BRUSH SET
1шт.
10
173-224
SCREW,Sl Rnd Hd, #8 - 32 x 1/4"
- brush lead (#8-32 x 1/4" rd. hd.)
2шт.
11
192-16
LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND
WASHER - lock, #8
2шт.
12
A40276
SPRING
ARM & SPRING KIT - brush
1шт.
A40279
STUD
TERMINAL & HOLDER KIT - (not illust.), Includes: Ref. 13 - 24
1шт.
13
NSS
NOT SOLD SEPARAT
HOLDER - brush, ground
1шт.
14
NSS
NOT SOLD SEPARAT
RIVET - ground brush holder
2шт.
15
NSS
NOT SOLD SEPARAT
HOLDER - brush, insulated
1шт.
16
NSS
NOT SOLD SEPARAT
RIVET - insulated brush holder
1шт.
17
NSS
NOT SOLD SEPARAT
BUSHING - insulated holder rivet
1шт.
18
NSS
NOT SOLD SEPARAT
BUSHING - armature term., insulation
1шт.
19
NSS
NOT SOLD SEPARAT
WASHER - arm. term., plain (metal)
1шт.
20
NSS
NOT SOLD SEPARAT
INSULATION - brush holder
1шт.
21
NSS
NOT SOLD SEPARAT
STUD - field terminal
1шт.
22
NSS
NOT SOLD SEPARAT
BUSHING - field term., insulation
1шт.
23
NSS
NOT SOLD SEPARAT
WASHER - field term., insulation
1шт.
24
NSS
NOT SOLD SEPARAT
WASHER - field term., insulation
1шт.
25
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, , Arm terminal 1/4"
2шт.
26
129-121
NUT,1/4"-28, G5
Armature terminal 1/4"-28, G5
2шт.
27
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, , Field terminal #10
2шт.
28
129-37
NUT,#10-32
Field terminal #10-32
2шт.
29
NSS
NOT SOLD SEPARAT
SHOE - pole
2шт.
30
A40273
COIL ASSY. - field (incl. Ref. 21 and 31)
1шт.
31
NSS
NOT SOLD SEPARAT
SCREW - pole shoes
2шт.
32
A25886
ARMATURE
ASSY., Includes: Ref. 33
1шт.
33
NSS
NOT SOLD SEPARAT
RING - snap, spacer stop
1шт.
34
126-11
WOODRUFF KEY,#5, 1/8" x 5/8"
1шт.
35
NSS
NOT SOLD SEPARAT
SPACER - retainer
1шт.
36
A25616
HEAD ASSY - drive end, Includes: Ref. 37 - 45
1шт.
37
NSS
NOT SOLD SEPARAT
RETAINER - bearing
1шт.
38
NSS
NOT SOLD SEPARAT
WASHER - drive end (felt)
2шт.
39
NSS
NOT SOLD SEPARAT
PLATE - bearing retainer
1шт.
40
NSS
NOT SOLD SEPARAT
GASKET -, Serial Range: plate-head
1шт.
41
NSS
NOT SOLD SEPARAT
RETAINER - bearing, outer
1шт.
42
A25618
BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"
BEARING - ball, drive end
1шт.
43
173-227
SCREW,Sl Rnd Hd, #10 - 24 x 1/2", SST
- brg. ret. (#10-32 x 1/2" rd. hd.)
3шт.
44
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
3шт.
45
NSS
NOT SOLD SEPARAT
PIN - head locating
1шт.
46
NSS
NOT SOLD SEPARAT
SPACER - fan & pulley
1шт.
47
14503
FAN - ventilating
1шт.
48
G4521
PULLEY
- generator drive
1шт.
49
A25619
NUT - pulley retaining
1шт.
50
92-11
WASHER - lock, pulley nut (11/16" std.)
1шт.
Выбрано товаров: 52
