Запчасти Case IH 530 (066) - ELECTRICAL EQUIPMENT AND WIRING, 530 SERIES, 159 SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

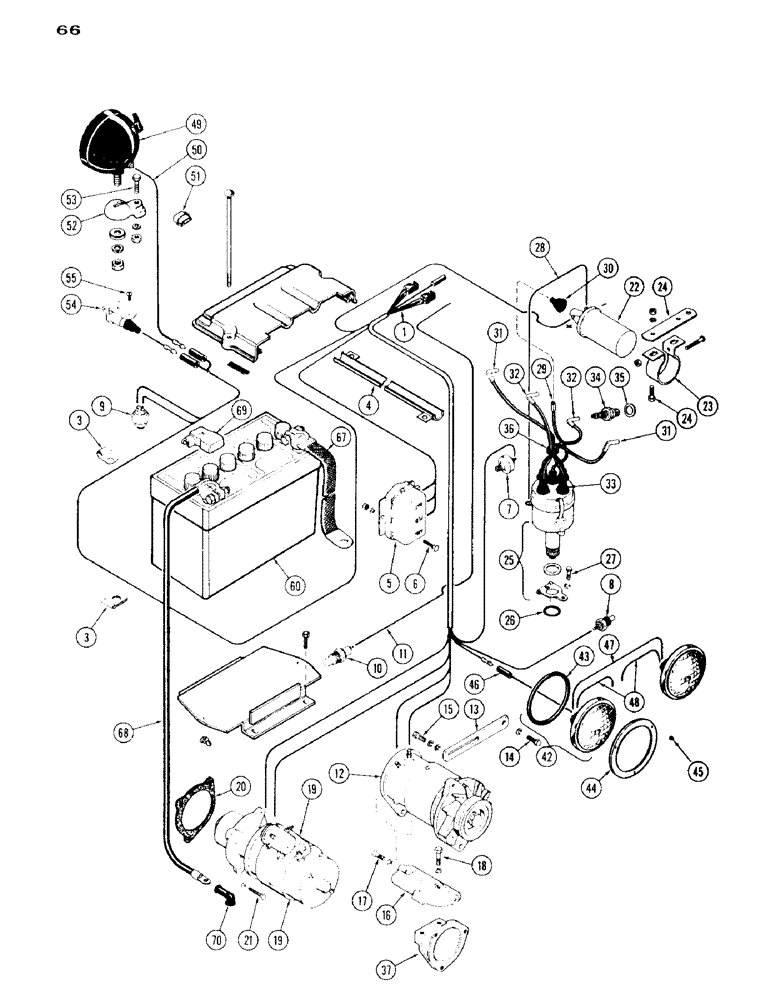

Схема запчастей Case IH 530 - (066) - ELECTRICAL EQUIPMENT AND WIRING, 530 SERIES, 159 SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS
35
23
51
67
48
8
3
47
42
32
27
22
20
45
1
24
29
3
54
32
69
31
33
53
5
13
16
26
30
19
34
43
50
68
37
17
31
11
6
44
10
60
70
9
4
15
46
12
24
18
21
25
49
55
19
28
36
52
7
14

Артикул

Название

Примечание

Количество

1

A36676

HARNESS

- main wire, w/plugs

1шт.

3

A37179

CLIP

- main wire harness

1шт.

4

A20411

CONDUIT - wire

1шт.

5

A36194

REGULATOR

ASSY. - voltage

1шт.

6

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT - regulator (1/4" x 5/8" N.F. hex.)

3шт.

7

A13794

TRANSMITTER

UNIT - sending, oil pressure

1шт.

8

A21462

SENDER UNIT

UNIT - sending, engine temperature

1шт.

9

A20990

SWITCH

- safety, neutral start

1шт.

10

A33241

SWITCH

- warning, converter temp

1шт.

11

A32534

WIRE - temp. switch to panel (37")

1шт.

12

A36195

GENERATOR ASSY. - (See Figure 70)

1шт.

13

G11344

STRAP - generator adjusting

1шт.

14

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- adj. strap (3/8 x 1-1/4" N.F. hex.)

1шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Adj. strap to gen. Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

16

G2131

X

BRACKET - generator mounting

1шт.

17

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- gen. to mtg. brkt. (5/16" x 1" N.F. hex.)

2шт.

18

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- mtg. brkt. (5/16" x 1-3/8" N.F. hex.)

2шт.

19

A36581

STARTER ASSY. - (See Figure 72)

1шт.

20

G46873

GASKET

- starter to block (C-O-M)

1шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Starter Hex, 3/8"-16 x 2", G5

3шт.

22

A33438

COIL

ASSY. - ignition

1шт.

23

G46106

BRACKET

CLAMP - ignition coil

1шт.

24

G11705

BRACKET

- coil mounting

1шт.

25

A30358

DISTRIBUTOR

(Repairs Figure 68)

1шт.

26

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - distributor seal (1-1/16 x 1-5/16 1/8")

1шт.

27

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Adjusting arm Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

28

G13085

ELECTRICAL WIRE

WIRE - distributor to coil (lo-tension) (12")

1шт.

29

NLS

NO LONGER SERVICED

WIRE - coil to dist. (11" long) (hi-tension)

1шт.

30

G46803

BOOT

NIPPLE - coil wire

1шт.

31

A29994

CABLE

WIRE - dist. to #1 and #4 spark plugs (10-1/2" long)

2шт.

32

A30018

CABLE

WIRE - dist. to #1 and #3 spark plugs (8-1/2" long)

2шт.

33

A29338

COVER

NIPPLE - dist. to hi-tension, wires

5шт.

34

G44840

SPARK PLUG

(gas), Includes: Ref. 35

4шт.

34

G44842

SPARK PLUG

(L.P.G.), Includes: Ref. 35

4шт.

35

G46839

GASKET

- spark plug

1шт.

36

A30109

WASHER

RING - tie, hi-tension wires

1шт.

37

G2098

SUPPORT - generator (w/o power steering)

1шт.

42

A24572

LAMP

HEAD LAMP ASSY. - (sealed beam unit), Includes: Ref. 43

2шт.

43

A11276

GASKET

- head lamp

1шт.

44

A11275

RING

- retainer, head lamp

2шт.

45

187-1102

SELF-TAP SCREW,#6 x 1/2"

SCREW - lamp ret. ( self-tapping) #6 x 1/2"

6шт.

46

A11943

WIRE - head lamp to harness (21")

1шт.

47

A11764

WIRE - jumper, head lamp (16")

1шт.

48

A33439

WIRE - ground, head lamp (12")

2шт.

49

A20965

LAMP BASE

TAIL LAMP ASSY. - (See Figure 116)

1шт.

50

A36554

ELECTRICAL WIRE

WIRE - tail lamp to harness (48" long)

1шт.

51

G46047

CLIP - tail lamp mounting

1шт.

52

A34046

BRACKET

- tail lamp mounting

1шт.

53

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Lamp bracket Hex, 5/16"-18 x 2 1/4", G5

1шт.

54

A8170

SOCKET

ASSY. - auxiliary

1шт.

55

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- aux. socket (#10 x 1/2" N.F. rd. hd.)

2шт.

60

F22631

DRY BATTERY

- (12 volt) (dry) (See note) (F22631)

1шт.

67

A36368

STRAP

- battery ground

1шт.

68

A27987

CABLE

-, Serial Range: battery-solenoid

1шт.

69

G46879

COVER

- cable terminal (stamped EL)

1шт.

70

A21753

CAP

BOOT - cable terminal cover

1шт.

Выбрано товаров: 56
