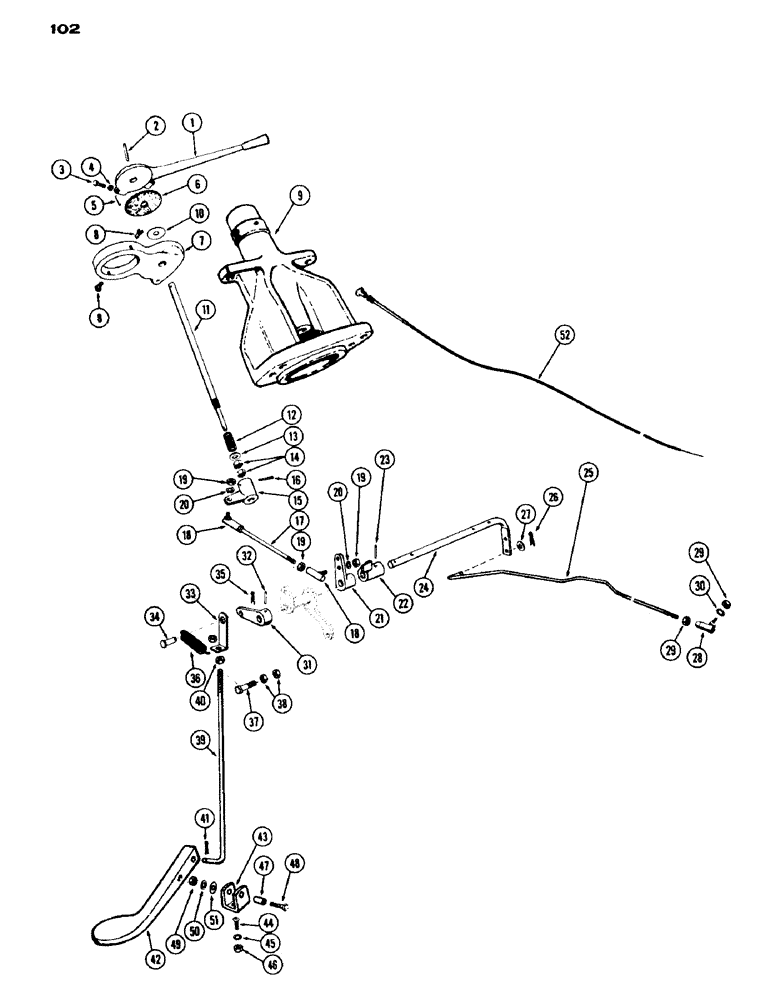

Запчасти Case IH 530 (102) - THROTTLE LINKAGE, 530 SERIES, 188 DIESEL ENGINE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A36513
LEVER
- hand
1шт.
2
138-77
LOCK PIN,5/32" x 1", Slotted
PIN, 5/32" x 1", Slotted
1шт.
3
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
Stop Hex, 1/4"-20 x 3/4", G5, Full Thd
2шт.
4
25-104
NUT,1/4"-20, G5
2шт.
5
138-135
LOCK PIN,1/4" x 1 1/8", Slotted
PIN, LOCK, , Lever stop 1/4" x 1 1/8", Slotted
1шт.
6
A11969
GASKET
DISC. - friction
1шт.
7
A35706
SUPPORT - hand lever (w/Dual or Single front wheel only)
1шт.
8
A27892
SET SCREW,1/4" - 20 x 7/8"
- set, support
2шт.
9
A36525
COLUMN - steering shaft (w/Dual or Single front wheel only)
1шт.
10
A32838
WASHER
- spacer
1шт.
11
A36512
SHAFT
- hand lever (12-1/16" long, threaded)
1шт.
12
A34113
SPRING
- tension (1" free length, 4 coils)
1шт.
13
195-33
WASHER,1/2"
- plain 1/2"
1шт.
14
25-158
JAM NUT,Jam, 1/2"-20, G5
- jam, 1/2" N.F. hex.
2шт.
15
A35644
LEVER - lower
1шт.
16
138-77
LOCK PIN,5/32" x 1", Slotted
PIN, 5/32" x 1", Slotted
1шт.
17
A35642
ROD
- intermediate
1шт.
18
A10329
BALL JOINT,1/4" - 28 x 1"
- intermediate shaft
2шт.
19
25-114
NUT,1/4"-28, G5
- 1/4" N.F. hex.
4шт.
20
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
21
A35638
LEVER
- cross shaft
1шт.
22
A35639
LEVER
- override, foot throttle
1шт.
23
138-77
LOCK PIN,5/32" x 1", Slotted
PIN, 5/32" x 1", Slotted
2шт.
24
A35636
SHAFT
- cross
1шт.
25
A35635
ROD - cross, Serial Range: shaft-pump
1шт.
26
132-26
COTTER PIN
PIN - split (Cotter), 3/32" x 3/4"
1шт.
27
95-5
WASHER,3/8" x 7/8" x .083"
- 5/16" plain
1шт.
28
A10329
BALL JOINT,1/4" - 28 x 1"
-, Serial Range: rod-pump
1шт.
29
25-114
NUT,1/4"-28, G5
- 1/4" N.F. hex.
2шт.
30
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
31
A35640
LEVER - foot throttle
1шт.
32
138-77
LOCK PIN,5/32" x 1", Slotted
PIN, 5/32" x 1", Slotted
1шт.
33
G16898
LINK - foot, Serial Range: throttle-lever
1шт.
34
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, , Link to lever 3/8" x 1.060"
1шт.
35
132-26
COTTER PIN
PIN - split (Cotter), 3/32" x 3/4"
1шт.
36
B18277
SPRING
- return
1шт.
37
14-648
CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5
BOLT - 3/8" x 3" N.F. hex. hd.
1шт.
38
25-156
JAM NUT,Jam, 3/8"-24, G5
- jam, 3/8" N.F. hex.
2шт.
39
A35641
ROD
- foot throttle
1шт.
40
25-116
NUT,Hex, 3/8"-24, G5
- 3/8" N.F. hex.
2шт.
41
132-26
COTTER PIN
PIN - split (Cotter), 3/32" x 3/4"
1шт.
42
G15692
PEDAL
- foot throttle
1шт.
43
G15694
BRACKET
- pedal pivot
1шт.
44
77-512
SCREW
- 5/16" x 3/4" N.C. truss hd.
2шт.
45
92-5
LOCK WASHER,5/16"
2шт.
46
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N.C. hex
2шт.
47
G49618
BUSHING
- pedal
1шт.
48
14-524
BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5
- 5/16" x 1-1/2" N.F. hex. hd.
1шт.
49
25-115
NUT,5/16"-24, G5
- 5/16" NF hex
1шт.
50
92-5
LOCK WASHER,5/16"
1шт.
51
95-5
WASHER,3/8" x 7/8" x .083"
- 5/16" plain
1шт.
52
A36573
CONTROL
ROD - fuel shut-off
1шт.
Выбрано товаров: 52
