Запчасти Case IH 530 (062) - THROTTLE LINKAGE, 530 SERIES, 159 SPARK INGINTION ENGINE (03) - FUEL SYSTEM

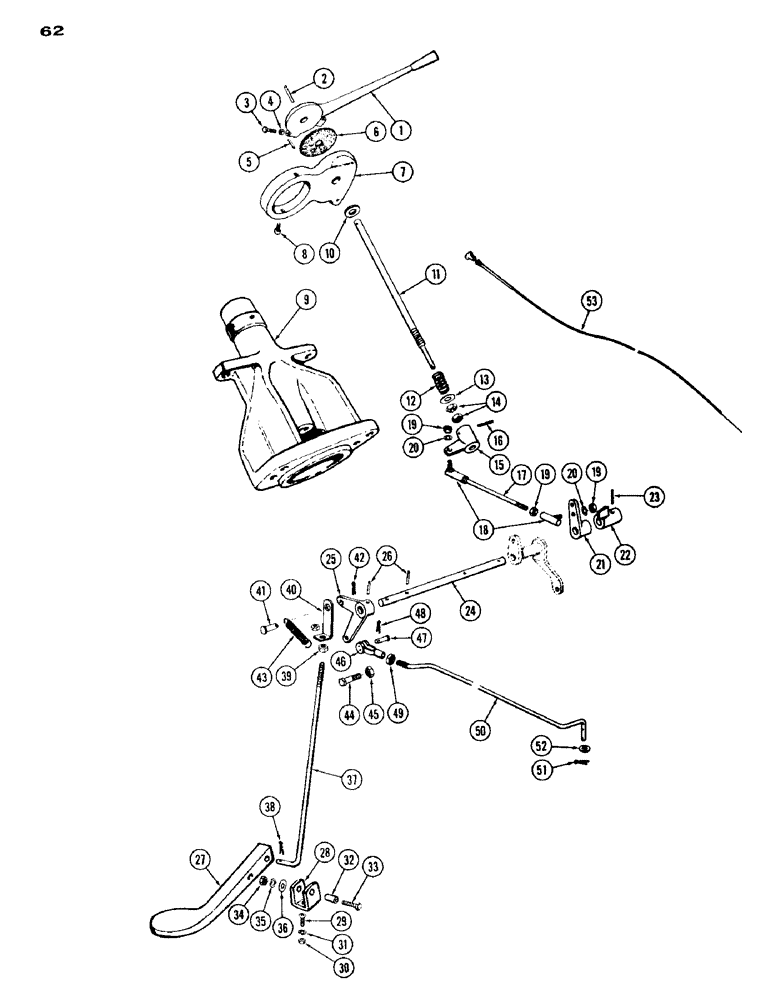

Схема запчастей Case IH 530 - (062) - THROTTLE LINKAGE, 530 SERIES, 159 SPARK INGINTION ENGINE (03) - FUEL SYSTEM
18
24
20
30
23
52
38
51
9
20
13
25
7
16
11
33
4
50
15
45
19
37
8
44
21
42
46
10
32
17
28
6
35
43
2
29
41
19
19
1
53
47
12
14
39
40
5
22
31
48
26
49
27
3
34
36

Артикул

Название

Примечание

Количество

1

A36513

LEVER

- hand

1шт.

2

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

3

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Stop Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

4

25-104

NUT,1/4"-20, G5

2шт.

5

138-135

LOCK PIN,1/4" x 1 1/8", Slotted

PIN, LOCK, , Lever stop 1/4" x 1 1/8", Slotted

1шт.

6

A11969

GASKET

DISC - friction

1шт.

7

A35706

SUPPORT - hand lever (w/Dual or Single front wheel only)

1шт.

8

A27892

SET SCREW,1/4" - 20 x 7/8"

- set, support

2шт.

9

A36525

COLUMN - steering shaft (w/Dual or Single front wheel only)

1шт.

10

A32838

WASHER

- spacer

1шт.

11

A36512

SHAFT

- hand lever

1шт.

12

A22618

SPRING

- tension

1шт.

13

195-33

WASHER,1/2"

- plain 1/2"

1шт.

14

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F.

2шт.

15

A35644

LEVER - lower

1шт.

16

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

17

A35642

ROD

- intermediate

1шт.

18

A10329

BALL JOINT,1/4" - 28 x 1"

- intermediate shaft

2шт.

19

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

A35638

LEVER

- cross shaft

1шт.

22

A35639

LEVER

- override, foot throttle

1шт.

23

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

24

A35637

SHAFT - cross

1шт.

25

A35633

LEVER - throttle rod

1шт.

26

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

27

G15692

PEDAL

- foot throttle

1шт.

28

G15694

BRACKET

- pivot, foot throttle

1шт.

29

77-512

SCREW

- truss hd., 5/16" x 3/4"

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

31

92-5

LOCK WASHER,5/16"

2шт.

32

G49618

BUSHING

- pedal pivot

1шт.

33

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex. hd.

1шт.

34

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

35

92-5

LOCK WASHER,5/16"

1шт.

36

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

1шт.

37

A35830

ROD

- foot throttle

1шт.

38

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

1шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

40

G16898

LINK - foot throttle rod

1шт.

41

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Link to lever 3/8" x 1.060"

1шт.

42

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

1шт.

43

B18277

SPRING

- return

1шт.

44

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

BOLT - 3/8" x 3" N.F. hex. hd.

1шт.

45

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

2шт.

46

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - throttle rod

1шт.

47

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

48

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

1шт.

49

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

50

A35634

ROD

- throttle

1шт.

51

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

52

95-6

WASHER,3/8"

- plain 3/8"

1шт.

53

A36578

ROD

- choke control

1шт.

Выбрано товаров: 53
