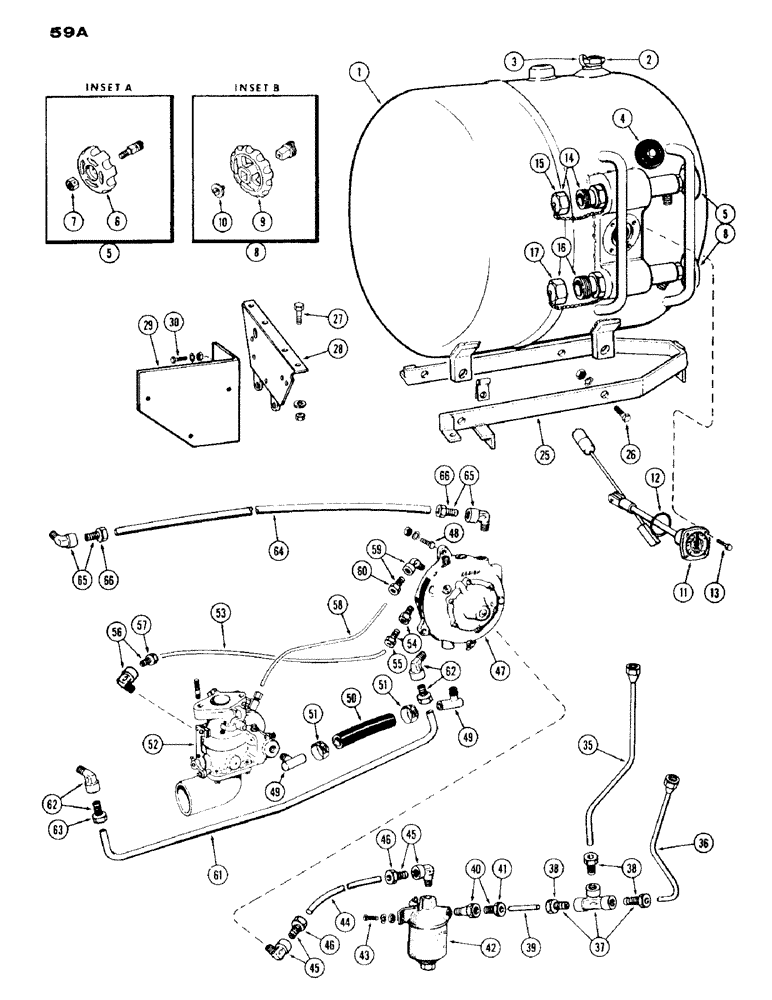

Запчасти Case IH 530 (059A) - L.P.G. FUEL SYSTEM, 530 SERIES, 159 SPARK IGNITION ENGINE (02) - ENGINE

1

A36923

TANK ASSY., Includes: Ref. 2 - 17

1шт.

2

A20696

SEAL

VALVE ASSY. - safety, Includes: Ref. 3

1шт.

3

A20697

WIPER

CAP - weather

1шт.

4

A29941

GAUGE - fixed liquid level

1шт.

5

A57245

VALVE

ASSY. - outlet, liquid & vapor (See inset A), Includes: Ref. 6 and 7

2шт.

6

A41434

WHEEL - hand, valve (Used w/A41433 lock nut)

1шт.

7

A41433

LOCK NUT

NUT - lock, hand wheel

1шт.

8

A22947

X

VALVE ASSY. - outlet, liquid & vapor (See inset B), Includes: Ref. 9 and 10

2шт.

9

B52058

WHEEL - hand, valve (used w/B52057 screw)

1шт.

10

B52057

SCREW - hand wheel

1шт.

11

G44848

GAUGE - fuel level, Includes: Ref. 12 and 13

1шт.

12

G46848

GASKET - fuel gauge

1шт.

13

177-133

SCREW - 1/4" x 5/16" fillister hd.

4шт.

14

A9320

VALVE - vapor return, Includes: Ref. 15

1шт.

15

A40630

CAP & CHAIN ASSY.

1шт.

16

A29942

VALVE - liquid filler, Includes: Ref. 17

1шт.

17

A40631

CAP & CHAIN ASSY.

1шт.

25

G30438

FRAME - support, fuel tank

1шт.

26

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex. hd.

4шт.

27

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

28

G30439

BRACKET - front support, fuel tank

1шт.

29

A36936

PLATE - regulator mounting

1шт.

30

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

35

A36932

TUBE - vapor, Serial Range: valve-tee

1шт.

36

A36930

TUBE - liquid, Serial Range: valve-tee

1шт.

37

222-564

TEE - 3/8" tube, Includes: Ref. 38

1шт.

38

222-504

TUBE NUT,9/16"-20

NUT - 3/8" tube

3шт.

39

A36934

TUBE -, Serial Range: tee-filter

1шт.

40

222-407

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR - tube to filter, 3/8" tube x 1/4" P.T., Includes: Ref. 41

1шт.

41

222-504

TUBE NUT,9/16"-20

NUT - 3/8" tube

1шт.

42

A24535

FILTER

ASSY. - L.P.G. (Repairs Figure 59C)

1шт.

43

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

44

A36935

TUBE -, Serial Range: filter-regulator

1шт.

45

222-437

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

- 3/8" tube x 3/8" P.T., Includes: Ref. 46

2шт.

46

222-504

TUBE NUT,9/16"-20

NUT - 3/8" tube

1шт.

47

G45345

REGULATOR - L.P.G. (Repairs Figure 59C)

1шт.

48

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

49

A36925

ELBOW - regulator & carburetor hose

2шт.

50

A36942

HOSE

-, Serial Range: regulator-carburetor

1шт.

51

222-253

CLAMP - hose

2шт.

52

A36922

CARBURETOR - (Repairs Figure 59E)

1шт.

53

A36927

TUBE - balance, Serial Range: reg.-carb.

1шт.

54

222-402

HYD CONNECTOR,1/8" NPT x 7/16"-24

CONNECTOR - balance tube, 1/4" O.D. x 1/8" P.T., Includes: Ref. 55

1шт.

55

222-502

TUBE NUT,7/16"-24

NUT - 1/4" tube

1шт.

56

222-432

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

- balance tube 1/4" O.D. x 1/8" P.T., Includes: Ref. 57

1шт.

57

222-502

TUBE NUT,7/16"-24

NUT - 1/4" tube

1шт.

58

A36926

TUBE - idle, Serial Range: carb.-reg.

1шт.

59

222-431

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

- idle tube to reg., 3/16" O.D. x 1/8" P.T., Includes: Ref. 60

1шт.

60

222-501

TUBE NUT,3/8"-24

NUT - 3/16" tube

1шт.

61

A36928

TUBE - water inlet, regulator

1шт.

62

222-470

ELBOW - 45 deg., 1/2" tube x 3/8" P.T., Includes: Ref. 63 45º x 3/8" NPT x 11/16"-16

2шт.

63

222-506

TUBE NUT,11/16"-16

NUT - 1/2" tube

1шт.

64

A36929

TUBE - water outlet, regulator

1шт.

65

222-442

ELBOW - 90 deg., 1/2" tube x 5/8" P.T., Includes: Ref. 66 90º x 3/8" NPT x 11/16"-16

2шт.

66

222-506

TUBE NUT,11/16"-16

NUT - 1/2" tube

1шт.
