Запчасти Case IH 530 (058) - A35816 CARBURETOR PARTS, 530 SERIES, 159 SPARK IGNITION ENGINE (02) - ENGINE

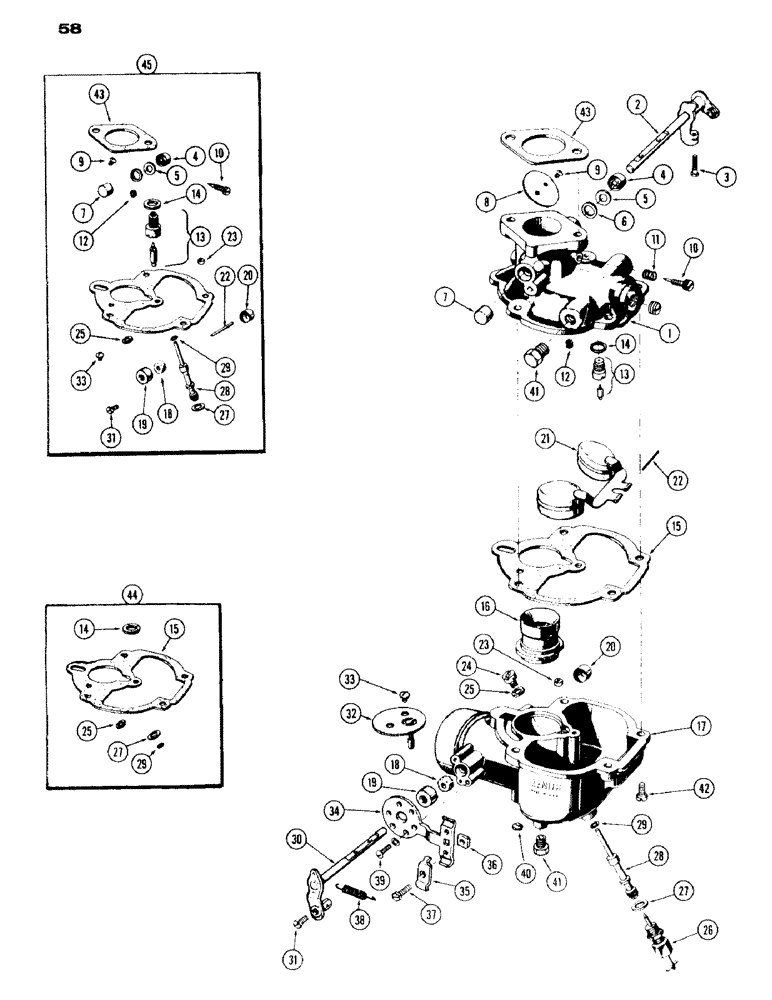

Схема запчастей Case IH 530 - (058) - A35816 CARBURETOR PARTS, 530 SERIES, 159 SPARK IGNITION ENGINE (02) - ENGINE
2
22
38
12
33
10
31
36
15
19
5
29
21
35
22
39
18
6
10
17
25
40
14
4
27
12
24
29
7
9
41
32
37
34
29
45
20
15
3
23
26
28
1
30
25
13
27
9
14
4
31
43
44
43
7
25
23
16
18
27
5
19
13
41
33
11
20
14
8
42
28

Артикул

Название

Примечание

Количество

A35816

X

CARBURETOR ASSY. - (Zenith #0-12509) (not illust.) Order A37173 when depleted. See Figure 57A, Includes: Ref. 1 - 42

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A35816 or A37173)

1шт.

2

B51245

SHAFT

ASSY. - throttle, Includes: Ref. 3

1шт.

3

B51581

SCREW - throttle stop

1шт.

4

B51528

SEAL

- throttle shaft

1шт.

5

B51416

RETAINER

- seal, throttle shaft

1шт.

6

B51530

SPACER

- throttle lever

2шт.

7

B51438

PLUG

- throttle shaft hole

1шт.

8

B59366

LARGE PLATE

PLATE - throttle

1шт.

9

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- throttle plate

2шт.

Part of repair kit P/N B51568

1шт.

10

B51265

HOSE

NEEDLE - idle adjusting

1шт.

Part of repair kit P/N B51568

1шт.

11

B51404

SPRING

- idle adj. needle

1шт.

12

A25174

JET

- idle

1шт.

Part of repair kit P/N B51568

1шт.

13

B51344

SEAT

VALVE ASSY. - fuel seat, Includes: Ref. 14

1шт.

Part of repair kit P/N B51568

1шт.

14

B51618

WASHER

- fuel valve seat (See B51496)

1шт.

Part of repair kit P/N B51568

1шт.

15

B51471

GASKET

- bowl to body (See B51496)

1шт.

Part of repair kit P/N B51568

1шт.

16

A25187

VENTURI

1шт.

17

B51180

BOWL

ASSY. - fuel, Includes: Ref. 18 - 20

1шт.

18

B51533

WASHER

- packing, choke shaft

1шт.

Part of repair kit P/N B51568

1шт.

19

B51439

RETAINER

- packing washer

1шт.

Part of repair kit P/N B51568

1шт.

20

B51509

PLUG

- choke shaft hole

1шт.

Part of repair kit P/N B51568

1шт.

21

B51359

FLOAT

1шт.

22

B51433

AXLE

- float pivot

1шт.

Part of repair kit P/N B51568

1шт.

23

B51340

JET

- well vent

1шт.

Part of repair kit P/N B51568

1шт.

24

A25173

JET

- main

1шт.

25

B51619

WASHER

- main jet (See B51496)

1шт.

Part of repair kit P/N B51568

1шт.

26

B51330

ADJUSTER

ADJUSTMENT ASSY. - main jet

1шт.

27

B51618

WASHER

- main jet adjustment (See B51496)

1шт.

Part of repair kit P/N B51568

1шт.

28

B51323

JET

- discharge

1шт.

Part of repair kit P/N B51568

1шт.

29

B51610

WASHER

- discharge jet (See B51496)

1шт.

Part of repair kit P/N B51568

1шт.

30

B59632

SHAFT

ASSY. - choke, Includes: Ref. 31

1шт.

31

B51579

SCREW - swivel, choke lever

1шт.

Part of repair kit P/N B51568

1шт.

32

B51365

PLATE

DISC ASSY. - choke

1шт.

33

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke disc

2шт.

Part of repair kit P/N B51568

1шт.

34

B51400

SUPPORT

BRACKET ASSY. - choke cable, Includes: Ref. 35 - 37

1шт.

35

B51403

CLIP

- choke cable

1шт.

36

B51594

X

NUT - choke clip screw

1шт.

37

B51580

SCREW

- choke clip

1шт.

38

B51412

SPRING

- return, choke lever

1шт.

39

B51458

SCREW,#8 - 32 x 0.37"

- choke bracket

2шт.

40

B51442

FILTER

DISC - intake drain

1шт.

41

B51541

PLUG

- pipe, bowl & body

2шт.

42

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

43

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.

Part of repair kit P/N B51568

1шт.

44

B51496

GASKET

KIT

1шт.

Part of repair kit P/N B51568

1шт.

45

B51568

KIT

REPAIR KIT - Includes: Ref. 4, 5, 7, 9, 10, 12 thru 15, 18, - 20, 22, 23, 25, 27 - 29, 31, 33, 43 and 44

1шт.
