Запчасти Case IH 530 (057A) - A37173 CARBURETOR PARTS, 530 SERIES, 159 SPARK IGNITION ENGINE (02) - ENGINE

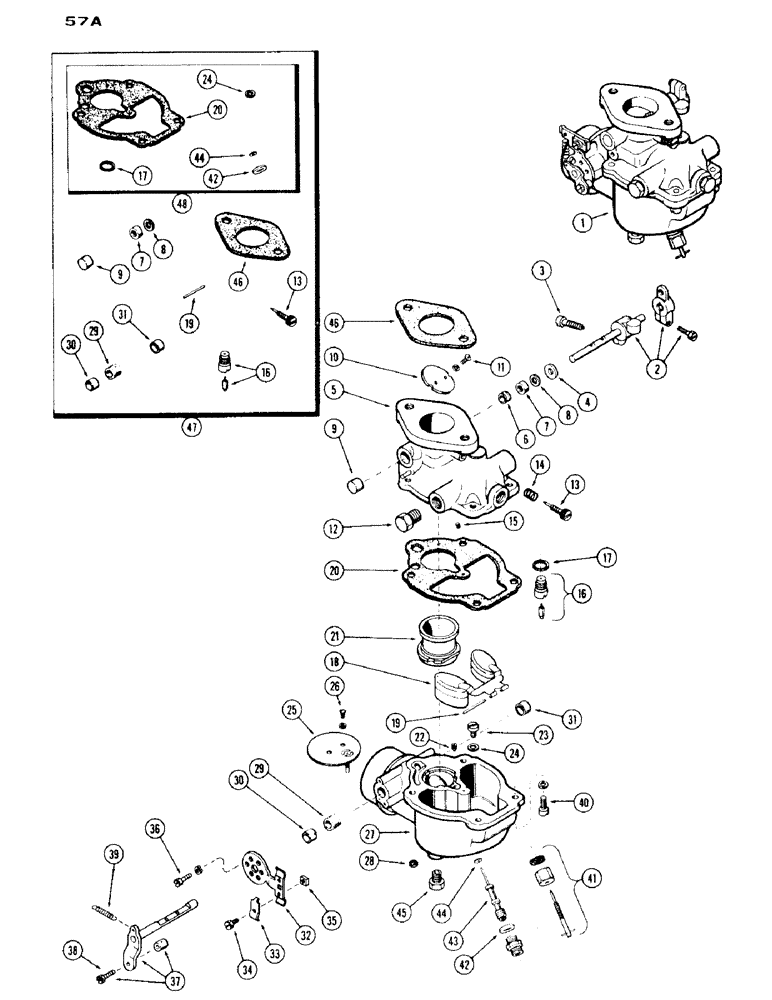

Схема запчастей Case IH 530 - (057A) - A37173 CARBURETOR PARTS, 530 SERIES, 159 SPARK IGNITION ENGINE (02) - ENGINE
33
42
6
7
26
40
20
44
30
38
4
8
31
16
32
46
29
9
15
7
42
8
25
31
2
41
37
39
3
9
48
28
34
14
12
19
5
16
1
24
20
18
13
36
17
13
11
24
29
44
43
23
30
35
10
21
17
45
27
19
47
22
45

Артикул

Название

Примечание

Количество

1

A37173

CARBURETOR

ASSY (Zenith #13106), Includes: Ref. 2 - 46

1шт.

2

B51245

SHAFT

ASSY - throttle, Includes: Ref. 3

1шт.

3

B51581

SCREW - stop

1шт.

4

A40933

WASHER

- spacer, throttle shaft

2шт.

5

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A37173)

1шт.

6

A40609

BUSHING

- throttle shaft

2шт.

7

B51528

SEAL

- throttle shaft

1шт.

Part of Repair Kit, P/N A41085

1шт.

8

B59360

RETAINER

WASHER - seal, retainer (9/32" I.D. x 1/2" O.D.)

1шт.

Part of Repair Kit, P/N A41085

1шт.

9

A40612

PLUG

- throttle shaft hole

1шт.

Part of Repair Kit, P/N A41085

1шт.

10

B51211

PLATE

- throttle

1шт.

11

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- throttle plate

2шт.

12

B51541

PLUG

- fuel inlet

2шт.

13

B51265

HOSE

NEEDLE - idle adjusting

1шт.

Part of Repair Kit, P/N A41085

1шт.

14

B51404

SPRING

- idle needle

1шт.

15

A25174

JET

- idle

1шт.

16

A41086

VALVE SEAT

VALVE & SEAT - fuel (matched), Includes: Ref. 17

1шт.

Part of Repair Kit, P/N A41085

1шт.

17

B51618

WASHER

- fuel valve seat

1шт.

Part of Gasket Kit, P/N B51496

1шт.

18

B51359

FLOAT

1шт.

19

B51433

AXLE

- float

1шт.

Part of Repair Kit, P/N A41085

1шт.

20

B51471

GASKET

- bowl

1шт.

Part of Gasket Kit, P/N B51496

1шт.

21

A25187

VENTURI

1шт.

22

B51340

JET

- well vent

1шт.

23

A25173

JET

- main

1шт.

24

B51619

WASHER

- main jet

1шт.

Part of Gasket Kit, P/N B51496

1шт.

25

B51365

PLATE

- choke

1шт.

26

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke plate

2шт.

27

B51180

BOWL

ASSY - fuel, Includes: Ref. 28 - 31

1шт.

28

B51442

FILTER

DISC - drain

1шт.

29

B51533

WASHER

- packing, choke shaft

1шт.

Part of Repair Kit, P/N A41085

1шт.

30

B51439

RETAINER

- packing

1шт.

Part of Repair Kit, P/N A41085

1шт.

31

B51509

PLUG

- choke shaft hole

1шт.

Part of Repair Kit, P/N A41085

1шт.

32

B51400

SUPPORT

BRACKET - choke, Includes: Ref. 33 - 35

1шт.

33

B51403

CLIP

- choke rod

1шт.

34

B51580

SCREW

- clip

1шт.

35

B51594

X

NUT - clip screw

1шт.

36

B51458

SCREW,#8 - 32 x 0.37"

- bracket

1шт.

37

B59632

SHAFT

ASSY - choke, Includes: Ref. 38

1шт.

38

B51579

SCREW - swivel, choke

1шт.

39

B51412

SPRING

- return, choke lever

1шт.

40

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

41

B51330

ADJUSTER

ADJUSTMENT ASSY - main jet

1шт.

42

B51618

WASHER

- adjustment assy

1шт.

Part of Gasket Kit, P/N B51496

1шт.

43

B51323

JET

- discharge

1шт.

44

B51610

WASHER

- discharge jet

1шт.

Part of Gasket Kit, P/N B51496

1шт.

45

B51541

PLUG

- bowl drain

1шт.

46

G46826

GASKET

- flange (shipped w/carburetor)

1шт.

Part of Repair Kit, P/N A41085

1шт.

47

A41085

KIT

REPAIR KIT - (includes Ref. 7, 8, 9, 13, 16, 19, 29, 30, 31, 46 and 48)

1шт.

48

B51496

GASKET

KIT (includes Ref. 17, 20, 24, 42 and 44)

1шт.

Part of Repair Kit, P/N A41085

1шт.

Выбрано товаров: 64
