Запчасти Case IH 530 (056) - FUEL SYSTEM, 530 SERIES, 159 SPARK IGNITION ENGINE (02) - ENGINE

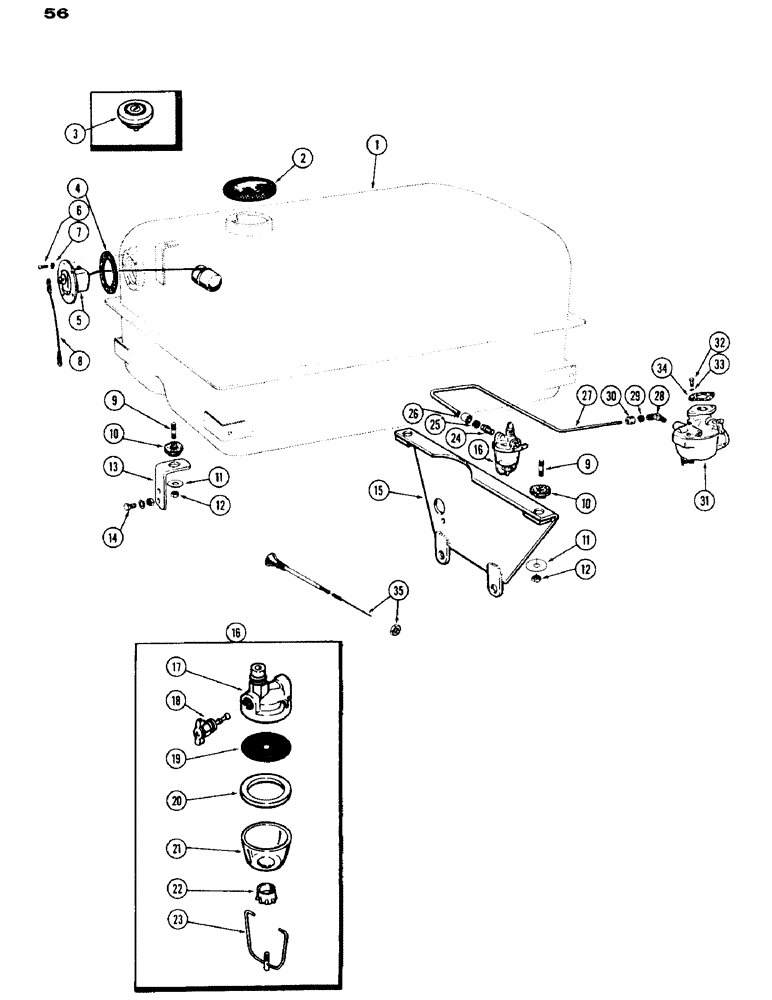

Схема запчастей Case IH 530 - (056) - FUEL SYSTEM, 530 SERIES, 159 SPARK IGNITION ENGINE (02) - ENGINE
16
11
13
6
17
32
29
8
4
25
19
30
20
11
1
12
9
23
21
5
2
26
12
35
7
15
33
3
28
10
27
18
16
14
10
31
9
22
24
34

Артикул

Название

Примечание

Количество

1

A36560

TANK

- fuel

1шт.

2

A32119

CAP

- filler (See ref. 3)

1шт.

3

A32120

CAP

- filler (Locking type) Includes keys. Keys not furnished for repairs

1шт.

4

A11822

GASKET

- sender

1шт.

5

A23480

SENDER UNIT

SENDER - fuel gauge

1шт.

6

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" rd. hd.

5шт.

7

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

8

A11783

ELECTRICAL WIRE

CABLE -, Serial Range: sender-gauge

1шт.

9

A8373

STUD

- tank mounting (3/8" x 2-7/16")

3шт.

10

A7336

CUSHION

- rubber, tank support

3шт.

11

B18261

WASHER

- stud

3шт.

12

131-103

NUT,Tinn, 1/4"-20

- lock, 3/8" N.F. hex

3шт.

13

A36177

SUPPORT - rear, fuel tank

1шт.

14

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

15

A35629

SUPPORT - front, fuel tank

1шт.

16

A30049

STRAINER ELEMENT

STRAINER ASSY. - fuel, Includes: Ref. 17 - 23

1шт.

17

A11214

HEAD

1шт.

18

A11205

VALVE

- shut-off

1шт.

19

A11211

FILTER SCREEN

SCREEN ASSY.

1шт.

20

A11208

GASKET

-, Serial Range: bowl-head

1шт.

21

A11209

BOWL

1шт.

22

A11210

ADJUSTER

CUP & NUT

1шт.

23

A11212

BAIL

ASSY.

1шт.

24

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - 5/16" tube x 1/8" P.T., Includes: Ref. 25 and 26

1шт.

25

222-103

SLEEVE,5/16" Tube

1шт.

26

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

27

G46288

TUBE,1.5" OD

LINE - fuel, strainer to carburetor

1шт.

28

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- 90 deg., 5/16" tube x 1/8" P.T., Includes: Ref. 29 and 30

1шт.

29

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube

1шт.

30

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

31

A35816

X

CARBURETOR (Zenith #12509) Order A37173 when depleted (Repairs Figure 58)

1шт.

31

A37173

CARBURETOR

(Zenith #13106) Repairs Figure 57A

1шт.

32

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.

35

A36578

ROD

- choke control

1шт.
