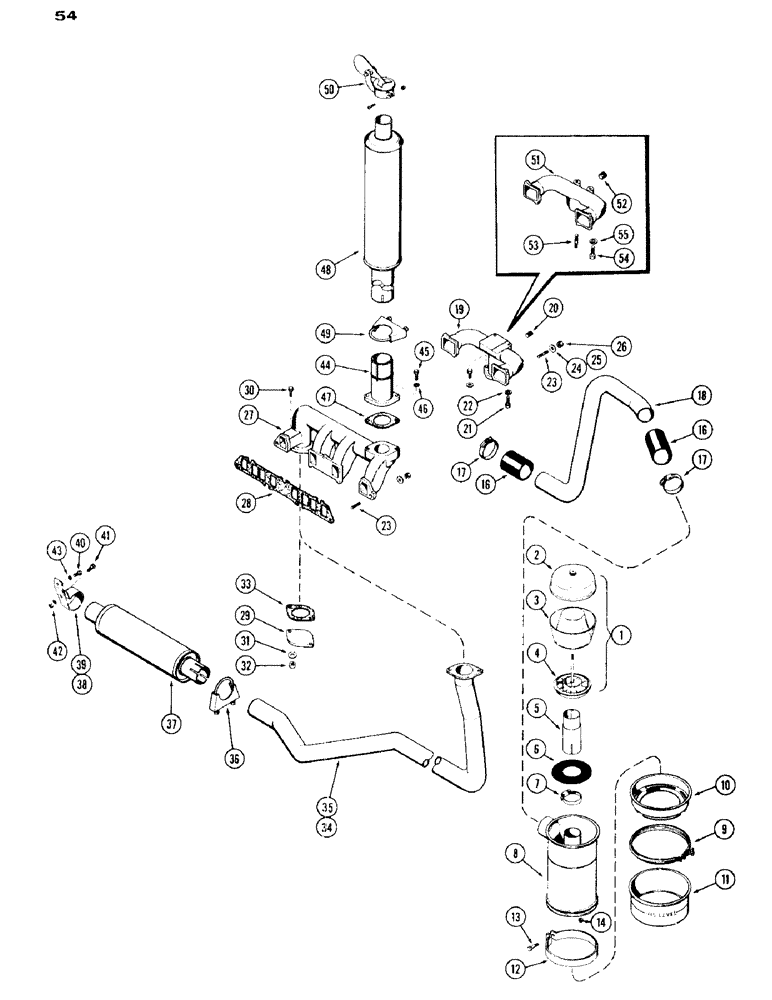

Запчасти Case IH 530 (054) - AIR CLEANER, MANIFOLD, MUFFLER, 530 SERIES, 159 SPARK IGNITION ENGINE (02) - ENGINE

1

D20604

PRECLEANER

PRE-CLEANER ASSY., Includes: Ref. 2 - 4

1шт.

2

D30676

COVER

1шт.

3

D30675

BODY

1шт.

4

NSS

NOT SOLD SEPARAT

LOWER HALF

1шт.

5

A35651

EXTENSION

- pre-cleaner

1шт.

6

A36854

SHIELD

- pre-cleaner extension

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- extension to air cleaner #28, 1.31/2.25 Type F Worm

1шт.

8

G45238

AIR CLEANER - complete, Includes: Ref. 9 - 11

1шт.

9

G45153

CLAMP

- oil cup

1шт.

10

G46324

CUP

- oil, inner

1шт.

11

G46325

CUP

- oil, outer

1шт.

12

G15614

BAND - air cleaner mounting

1шт.

13

173-216

SCREW,Sl Rnd Hd, 1/4" - 20 x 1 3/4"

- 1/4" x 1-3/4" rd. hd. mach.

1шт.

14

25-104

NUT,1/4"-20, G5

1шт.

16

G46257

HOSE - intake tube 2" ID x 2.375" OD

2шт.

17

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

18

G46258

TUBE - air cleaner to carburetor 2" OD

1шт.

19

A37004

MANIFOLD

- intake (Gas. See Ref. 51)

1шт.

20

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe 1/4" sq. hd.

1шт.

21

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex. hd.

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

A29431

STUD

- manifold to head (3/8 x 1-3/4")

7шт.

24

A30058

WASHER

- special, stud

4шт.

25

95-6

WASHER,3/8"

- plain 3/8"

3шт.

26

A30022

X

NUT - brass, 3/8" N. C.

7шт.

27

G2042

MANIFOLD

- exhaust

1шт.

28

A30030

GASKET

-, Serial Range: manifolds-head

1шт.

29

G2044

LARGE PLATE

COVER - exhaust opening

1шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover, 3/8" x 1-1/2" N.C. hex. hd.

2шт.

31

195-25

WASHER,3/8"

- plain SAE 3/8"

2шт.

32

A30022

X

NUT - brass, 3/8" N. C.

2шт.

33

G46853

MANIFOLD GASKET

- exhaust opening flange

2шт.

34

A36908

PIPE, EXHAUST SYSTEM

PIPE - underneath exhaust (Standard)

1шт.

35

A36910

PIPE

- underneath exhaust (Gen. Purpose)

1шт.

36

A27077

CLAMP

-, Serial Range: pipe-muffler

1шт.

37

G45287

MUFFLER

- underneath

1шт.

38

A36909

BRACKET

CLAMP - muffler (Standard)

1шт.

39

A35178

BRACKET

CLAMP - muffler (Gen. Purpose)

1шт.

40

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

41

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

42

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N. C. hex.

1шт.

43

92-5

LOCK WASHER,5/16"

2шт.

44

G2095

FITTING

OUTLET - upright muffler

1шт.

MEASURES 6" LONG

1шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

46

92-6

LOCK WASHER,3/8"

2шт.

47

G46853

MANIFOLD GASKET

- exhaust opening

1шт.

48

G45239

MUFFLER

- upright

1шт.

49

A13240

CLAMP,2-5/8" ID

- muffler

1шт.

50

G45048

CAP

- weather, upright muffler

1шт.

51

G37026

MANIFOLD - intake (L. P. G.), Includes: Ref. 52 and 53

1шт.

52

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe, L.P.G. Intake manifold Hex Soc, 1/4"-18 NPTF

1шт.

53

A29717

STUD

- carburetor, L.P.G. intake manifold

2шт.

54

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N. C. hex. hd., L.P.G. intake manifold

2шт.

55

92-6

LOCK WASHER,3/8"

L.P.G. intake manifold 3/8"

2шт.
