Запчасти Case IH 530 (048) - CAMSHAFT, CRANKSHAFT AND FLYWHEEL, 530 SERIES, 159 SPARK IGNITION ENGINE (02) - ENGINE

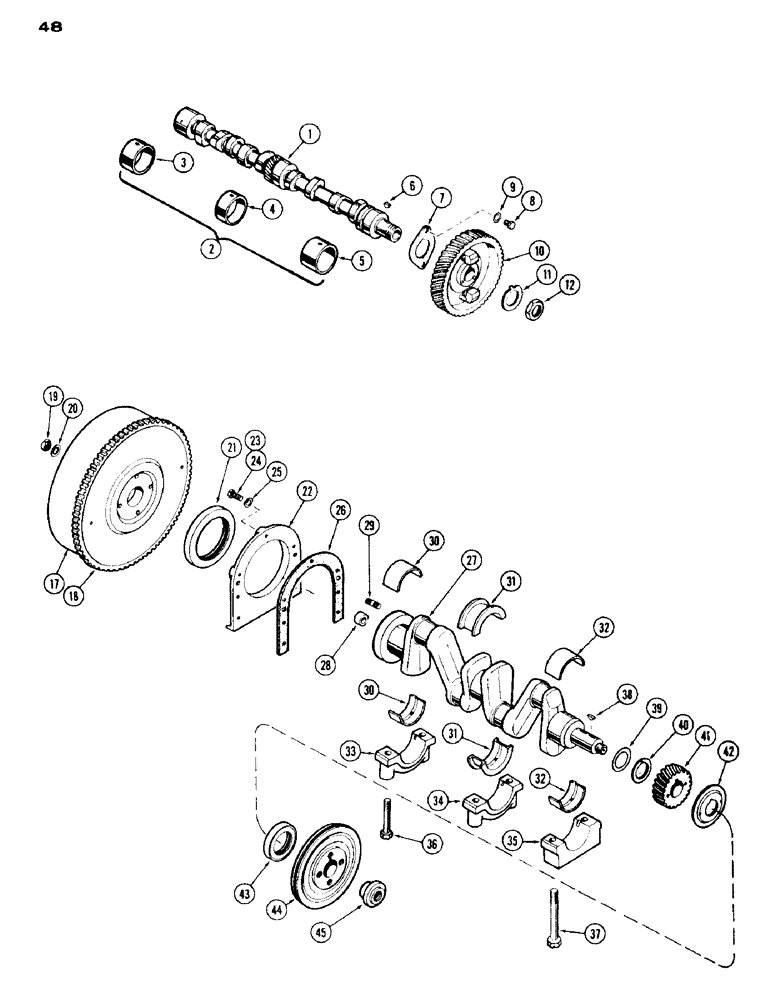

Схема запчастей Case IH 530 - (048) - CAMSHAFT, CRANKSHAFT AND FLYWHEEL, 530 SERIES, 159 SPARK IGNITION ENGINE (02) - ENGINE
8
17
28
30
5
31
38
1
34
18
43
11
32
10
4
42
23
29
24
33
2
39
6
35
31
27
32
12
21
45
20
36
44
19
41
9
22
3
30
7
37
40
26
25

Артикул

Название

Примечание

Количество

1

G2049

CAMSHAFT

1шт.

2

A41225

KIT

BUSHING SET - camshaft (pre-sized), Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - center

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front

1шт.

6

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.

7

A29290

PLATE

- thrust, camshaft

1шт.

8

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate

2шт.

9

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

10

G37066

GEAR

- camshaft

1шт.

11

A29438

LOCK NUT

LOCKWASHER - camshaft nut

1шт.

12

A30063

NUT

- camshaft

1шт.

17

G11859

FLYWHEEL

ASSY. - (w/std. clutch), and crankshaft, Includes: Ref. 18

1шт.

17

G11860

FLYWHEEL

ASSY. - (w/Case-O-Matic), and crankshaft, Includes: Ref. 18

1шт.

18

G11710

GEAR

- ring (135 T), crankshaft and flywheel

1шт.

19

25-117

NUT,7/16"-20, G5

- 7/16" N. F. hex., crankshaft and flywheel

4шт.

20

92-7

LOCK WASHER,7/16"

crankshaft and flywheel 7/16"

4шт.

21

A36610

OIL SEAL

OIL SEAL - rear, crankshaft, and flywheel

1шт.

22

G2017

RETAINER

- rear oil seal, crankshaft and flywheel

1шт.

23

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Crankshaft & flywheel Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

24

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Crankshaft and flywheel Hex, 1/4"-20 x 1", G5

3шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Crankshaft and flywheel 1/4"

7шт.

26

G46802

GASKET

- rear oil seal retainer, crankshaft and flywheel

1шт.

27

G11183

CRANKSHAFT

ASSY., and flywheel, Includes: Ref. 28

1шт.

28

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

- pilot, crankshaft and flywheel

1шт.

29

A29434

STUD

- flywheel to crankshaft (7/16 x 1-3/4")

4шт.

30

G37051

KIT

LINERS - rear mainbearing, (.010 undersize) (Standard), crankshaft and flywheel

1шт.

30

G37052

KIT

LINERS - rear bearing main (.010" undersize), crankshaft and flywheel

1шт.

30

G37053

KIT

LINERS - rear bearing (.020" undersize), crankshaft and flywheel

1шт.

30

G37054

KIT

LINERS - rear bearing (.040" undersize), crankshaft and flywheel

1шт.

31

G37047

KIT

LINERS - center bearing (Standard), crankshaft and flywheel

1шт.

31

G37048

KIT

LINERS - center bearing (.010" undersize), crankshaft and flywheel

1шт.

31

G37049

KIT

LINERS - center bearing (.020" undersize), crankshaft and flywheel

1шт.

31

G37050

KIT

LINERS - center bearing (.040" undersize), crankshaft and flywheel

1шт.

32

G37043

KIT

LINERS - front bearing (Standard), crankshaft and flywheel

1шт.

32

G37044

KIT

LINERS - front bearing (.010" undersize), crankshaft and flywheel

1шт.

32

G37045

KIT

LINERS - front bearing (.020" undersize), crankshaft and flywheel

1шт.

32

G37046

KIT

LINERS - front bearing (.040" undersize), crankshaft and flywheel

1шт.

33

G2037

CAP

- rear bearing, crankshaft, and flywheel

1шт.

34

G2036

CAP

- center bearing, crankshaft, and flywheel

1шт.

35

G2035

CAP

- front bearing, crankshaft, and flywheel

1шт.

36

G49037

BOLT

- bearing cap (1/2" x 3), crankshaft and flywheel

4шт.

37

G49059

BOLT

- front bearing cap (1/2" x 4-3/4), crankshaft and flywheel

2шт.

38

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft, and flywheel

2шт.

39

A29293

SHIM,.010" Thk

Thrust, Crankshaft and flywheel .010" Thk

1шт.

40

A29294

BUSHING

SPACER - thrust, crankshaft and flywheel

1шт.

41

A29263

GEAR

- crankshaft, and flywheel

1шт.

42

A29259

SLINGER

- oil, crankshaft and flywheel

1шт.

43

A36609

OIL SEAL

OIL SEAL - front, crankshaft, and flywheel

1шт.

44

G11342

X

PULLEY - fan & generator drive, crankshaft and flywheel

1шт.

45

A35673

NUT

- pulley to crankshaft, and flywheel

1шт.

Выбрано товаров: 51
