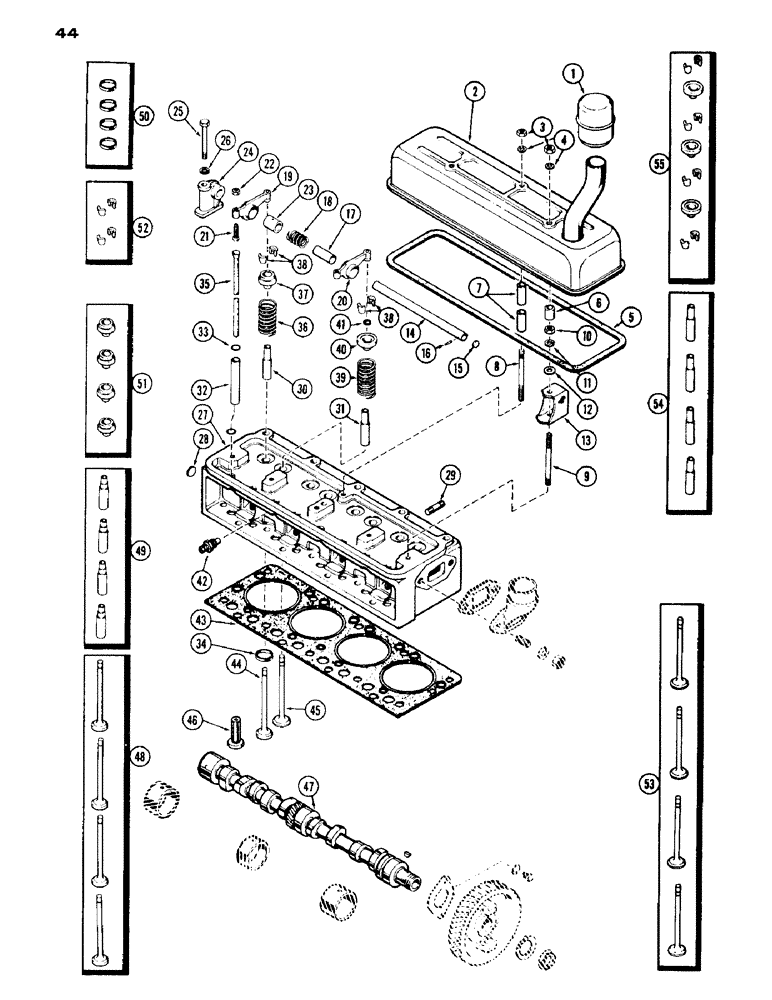

Запчасти Case IH 530 (044) - GAS CYLINDER HEAD ASSEMBLY, 530 SERIES, 159 SPARK IGNITION ENGINE (02) - ENGINE

1

A36608

CAP

- oil filler & breather

1шт.

2

G11895

COVER - valve & rocker arm

1шт.

3

25-106

NUT,3/8"-16, G5

- 3/8" N. C. hex.

3шт.

4

A29277

WASHER

- plain, cover nut

3шт.

5

A30009

GASKET

-, Serial Range: cover-head

1шт.

6

A30065

SPACER

- cover (17/32" high)

2шт.

7

A29999

SPACER

- cover (19/32" high)

2шт.

8

G49504

STUD

- cover (3/8" x 4-5/8" w/1" thrd.)

1шт.

9

G49505

STUD

- cover (3/8" x 4-5/8" w/2" thrd.)

2шт.

10

25-106

NUT,3/8"-16, G5

- 3/8" N. C. hex.

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

A29277

WASHER

- plain, bracket nut

2шт.

13

G46250

BRACKET

- rocker arm shaft

4шт.

14

A29444

SHAFT

- rocker arm

2шт.

15

A26796

PLUG

- rocker shaft

2шт.

16

139-205

PIN - taper, rocker shaft 2/0 x 3/4", Tapered

2шт.

17

A30008

SPACER

- rocker arm shaft

2шт.

18

A30007

SPRING

- rocker arm shaft

4шт.

19

G45234

ARM

ROCKER ARM - R.H. (incl. Ref. 21, 22, & 23), Includes: Ref. 21 - 23

4шт.

20

G45235

ARM

ROCKER ARM - L.H. (incl. Ref. 21, 22, & 23), Includes: Ref. 21 - 23

4шт.

21

A31056

ADJUSTMENT SCREW,5/16" - 24 x 1 11/32"

SCREW - adjusting

1шт.

22

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N. F. hex.

1шт.

23

A31055

BUSHING

- rocker arm

1шт.

24

G2107

BRACKET

- center, rocker arm shaft

1шт.

25

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N. C. hex. hd.

3шт.

26

92-6

LOCK WASHER,3/8"

3шт.

27

G11874

HEAD (CYLINDER)

HEAD ASSY. - cylinder, Includes: Ref. 28 - 34

1шт.

28

A30079

X

PLUG - rear (1-1/8" dia.)

1шт.

29

A29431

STUD

- manifold

7шт.

30

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (Order Ref. 49)

4шт.

31

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (Order Ref. 54)

4шт.

32

G11360

TUBE,0.687" OD x 3.687" L

- push rod

8шт.

33

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube seal

16шт.

34

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order Ref. 50)

4шт.

35

G11086

ROD

PUSH ROD

8шт.

36

G10004

SPRING

- exhaust valve

4шт.

37

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order Ref. 51)

4шт.

38

NSS

NOT SOLD SEPARAT

LOCK - retainer, valve spring (Order Ref. 52)

16шт.

39

A30025

SPRING

- intake valve

4шт.

40

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 55)

4шт.

41

G46851

SEAL

- intake valve spring

4шт.

42

A21462

SENDER UNIT

SENDER - heat gauge

1шт.

43

G46870

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

44

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 48)

4шт.

45

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 53)

4шт.

46

A30006

TAPPET

- valve

8шт.

47

G2049

CAMSHAFT

- (See Figure 48)

1шт.

48

G11962

VALVE, ENG EXHAUST,

VALVE - exhaust (Set of 4)

1шт.

49

A30270

GUIDE

- exhaust valve stem (Set of 4)

1шт.

50

G11960

KIT

INSERT - exhaust valve seat (Set of 4)

1шт.

51

G11928

CAP

ROTO-CAP - exhaust valve (Set of 4)

1шт.

52

G11929

LOCK

- valve spring (Set of 4)

4шт.

53

G11961

VALVE

- intake (Set of 4)

1шт.

54

G10269

KIT

GUIDE - intake valve stem (Set of 4)

1шт.

55

G11927

RETAINER

- intak valve spring (Set of 4 w/locks)

1шт.
