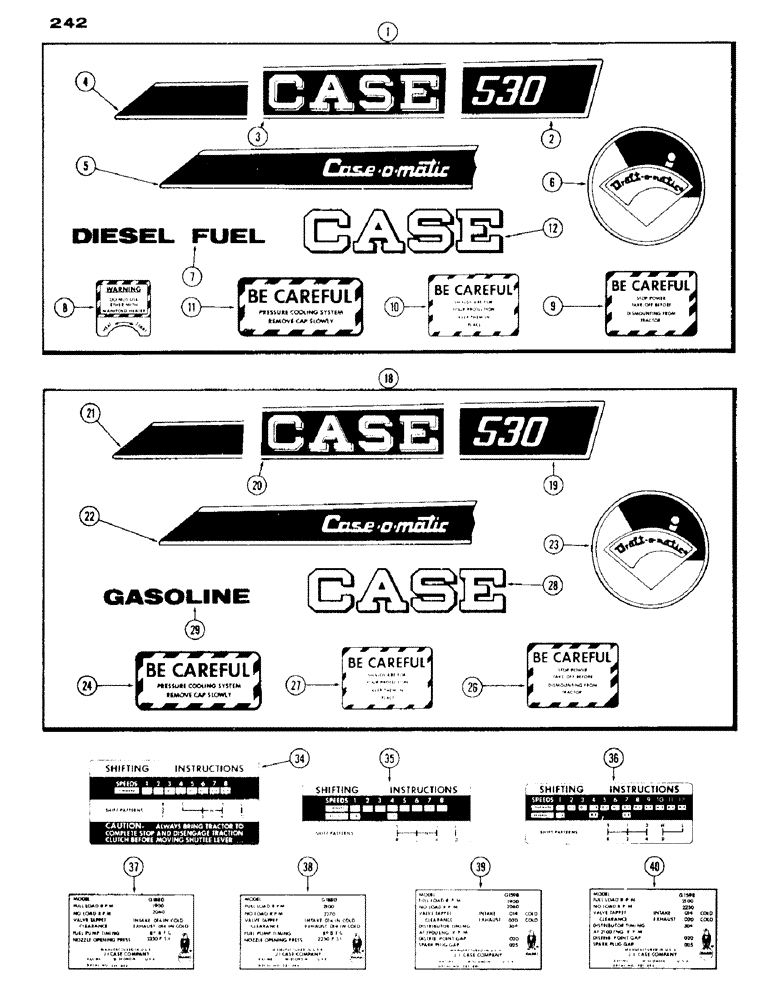

Запчасти Case IH 530 (242) - 530 SERIES DECALS, DIESEL, SPARK IGNITION AND MISCELLANEOUS (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
B17114
DECAL KIT, Includes: Ref. 2 - 12
1шт.
2
321-370
X
530 (RIGHT HAND) (HOOD)
1шт.
2
321-371
X
530 (LEFT HAND) (HOOD)
1шт.
3
321-380
DECAL
CASE (RIGHT HAND) (HOOD)
1шт.
3
321-381
DECAL
CASE (LEFT HAND) (HOOD)
1шт.
4
321-382
DECAL
PLAIN STRIP (RIGHT HAND) (HOOD)
1шт.
4
321-383
DECAL
PLAIN STRIP (LEFT HAND) (HOOD)
1шт.
5
321-782
DECAL
CASE-O-MATIC (RIGHT HAND) (HOOD)
1шт.
5
321-783
X
CASE-O-MATIC (LEFT HAND) (HOOD)
1шт.
6
321-767
DECAL
DRAFT-O-MATIC (INST. PANEL)
2шт.
7
321-230
DECAL
DIESEL FUEL (FUEL TANK)
1шт.
8
321-422
DECAL
WARNING HEATER (inst. panel)
1шт.
9
321-605
DECAL
BE CAREFUL (P. T. O.) (TOOL BOX)
1шт.
10
321-608
DECAL
BE CAREFUL (P. T. O.) (P. T. O. SHIELD)
1шт.
11
321-122
DECAL
BE CAREFUL PRESSURE COOLING
1шт.
12
321-287
DECAL
CASE (SEAT)
1шт.
18
B17113
DECAL KIT, SPARK IGNITION, Includes: Ref. 19 - 29
1шт.
19
321-370
X
530 (RIGHT HAND) (HOOD), SPARK IGNITION
1шт.
19
321-371
X
530 (LEFT HAND) (HOOD), SPARK IGNITION
1шт.
20
321-398
DECAL
CASE (RIGHT HAND) (HOOD), SPARK IGNITION
1шт.
20
321-399
DECAL
CASE (LEFT HAND) (HOOD), SPARK IGNITION
1шт.
21
321-382
DECAL
PLAIN STRIP (RIGHT HAND) (HOOD), SPARK IGNITION
1шт.
21
321-383
DECAL
PLAIN STRIP (LEFT HAND) (HOOD), SPARK IGNITION
1шт.
22
321-782
DECAL
CASE-O-MATIC (RIGHT HAND) (HOOD), SPARK IGNITION
1шт.
22
321-783
X
CASE-O-MATIC (LEFT HAND) (HOOD), SPARK IGNITION
1шт.
23
321-767
DECAL
DRAFT-O-MATIC (INST. PANEL), SPARK IGNITION
2шт.
24
321-122
DECAL
BE CAREFUL PRESSURE COOLING, SPARK IGNITION
1шт.
26
321-605
DECAL
BE CAREFUL (P. T. O) (TOOL BOX). SPARK IGNITION
1шт.
27
321-608
DECAL
BE CAREFUL (P. T. O.) (P. T. O. SHIELD), SPARK IGNITION
1шт.
28
321-287
DECAL
CASE (SEAT), SPARK IGNITION
1шт.
29
321-18
DECAL
GASOLINE (FUEL TANK), SPARK IGNITION
1шт.
34
321-924
SHUTTLE SHIFT INSTRUCTIONS, MISCELLANEOUS
1шт.
35
321-923
DUAL RANGE SHIFT INSTRUCTIONS, MISCELLANEOUS
1шт.
36
321-922
DECAL
TRIPL-RANGE SHIFT INSTRUCTIONS. MISCELLANEOUS
1шт.
37
321-883
ENGINE DATA - (Diesel w/std. clutch), MISCELLANEOUS
1шт.
38
321-884
ENGINE DATA - (DIESEL) (CASE-O-MATIC), MISCELLANEOUS
1шт.
39
321-891
X
ENGINE DATA (Gas w/std. clutch), MISCELLANEOUS
1шт.
40
321-892
X
ENGINE DATA (GAS) (CASE-O-MATIC), MISCELLANEOUS
1шт.
Выбрано товаров: 38
