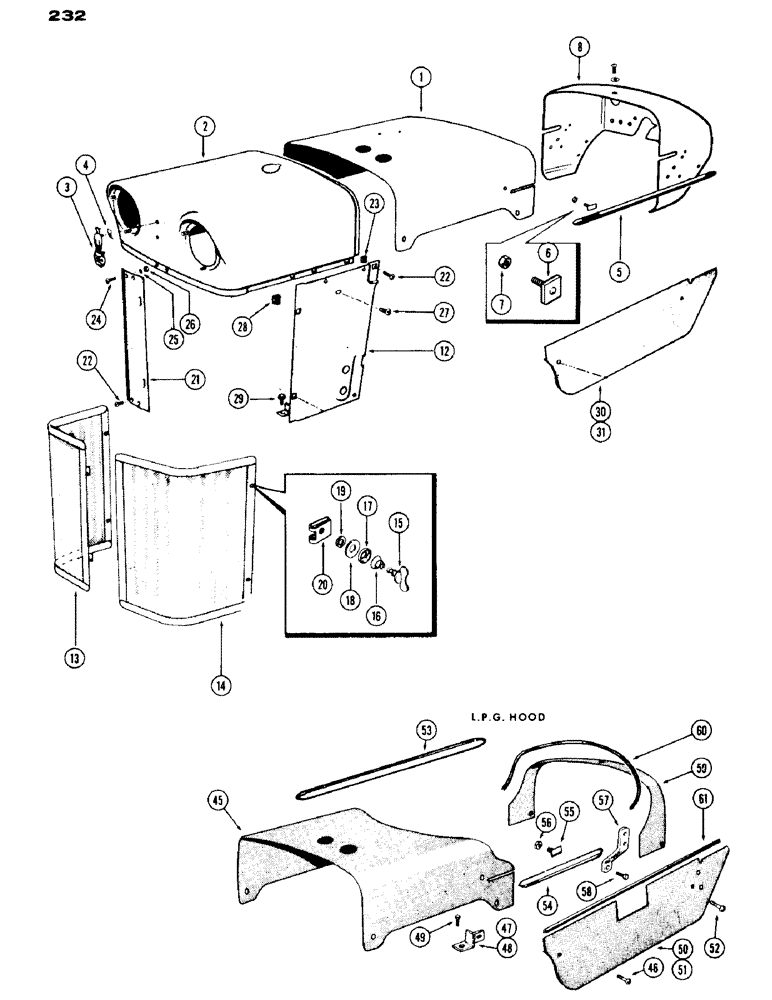

Запчасти Case IH 530 (232) - HOOD, GRILLE AND SIDE PANELS, 530 SERIES (09) - CHASSIS

1

G15624

HOOD - (diesel) (used w/upright muffler)

1шт.

1

G15682

HOOD - (Diesel) (used w/underneath muffler)

1шт.

1

G15616

HOOD - (Gas) (used w/upright muffler)

1шт.

1

G15681

HOOD - (Gas) (used w/underneath muffler)

1шт.

2

A36685

CAP - radiator grille

1шт.

3

A24526

MEDALLION - cap (Case trade mark)

1шт.

4

131-138

PUSH-ON NUT

- medallion (1/4" Tinnerman)

2шт.

5

G46259

MOLDING

MOULDING - hood trim

2шт.

6

A11459

BOLT

- trim retaining ("T" bolt)

6шт.

7

193-1000

NUT,Keps, w/LW,#10-32

- trim bolt (#10-32 Keps)

6шт.

8

A36678

PANEL - instrument (Hydro-Static strg.)

1шт.

8

A36679

PANEL - instrument (w/out Hydro-Static strg.)

1шт.

12

A36680

PANEL - radiator, right hand side

1шт.

12

A36681

PANEL - radiator, left hand side

1шт.

13

A36686

GRILLE

- radiator screen, right hand

1шт.

14

A36687

GRILLE - radiator screen, left hand

1шт.

15

A32881

STUD

- grille lock

4шт.

16

A32882

VALVE SPRING

SPRING - grille lock stud

4шт.

17

A32883

WASHER

- wear, grille stud

4шт.

18

A34012

WASHER

- grille stud

4шт.

19

NLS

NO LONGER SERVICED

RING - snap, stud retaining

1шт.

20

A36042

CLIP

RECEPTACLE - grille stud

4шт.

21

G30275

BRACE - grille, center

1шт.

22

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- (1/4" x 1/2" N. C. truss hd.)

8шт.

23

131-102

SPRING NUT,Ret, 1/4"-20

speed (Tinnerman) Ret, 1/4"-20

2шт.

24

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- (1/4" x 3/4" N. C. truss hd.)

2шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

27

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

- (5/16" x 5/8" N. F. truss hd.)

2шт.

28

131-123

NUT,Ret, 5/16"-24

- speed (5/16" N. F. Tinnerman)

2шт.

29

175-437

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- (5/16" x 5/8" N. C., truss hd.)

4шт.

30

G15618

PANEL - side, R.H. rear

1шт.

31

G15619

PANEL - side, L.H. rear

1шт.

45

A37129

HOOD - engine, and side panels, L.P.G.

1шт.

46

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- 5/16" x 3/4" N. C. truss hd., hood and side panels, L.P.G.

2шт.

47

A37130

BRACKET - R. H., hood support, and side panels, L.P.G.

1шт.

48

A37131

BRACKET - L. H., hood support, and side panels, L.P.G.

1шт.

49

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Hood and side panels, L.P.G. Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

50

G15778

PANEL - R. H. side, hood and side, L.P.G.

1шт.

51

A37941

PANEL - L. H. side, hood and side, L.P.G.

1шт.

52

175-448

SCREW - 3/8" x 1" N. C. truss hd., hood and side panels, L.P.G.

4шт.

53

G46259

MOLDING

STRIP - chrome, R. H. side, hood and side panels, L.P.G.

1шт.

54

A36940

STRIP - chrome, L. H. side, hood and side panels, L.P.G.

2шт.

55

A11459

BOLT

- chrome strip ("T" bolt), hood and side panels, L.P.G.

6шт.

56

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 "Keps", hood and side panels, L.P.G.

6шт.

57

G15777

SUPPORT - instrument panel, hood and side, L.P.G.

2шт.

58

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Hood and side panels, L.P.G. Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

59

A37132

STRIP - filler, tank & instrument panel, hood and side, L.P.G.

1шт.

60

A37136

MOULDING - rubber, hood and side panels, L.P.G.

1шт.

61

A37137

MOULDING - rubber (16-3/4"), hood and side panels, L.P.G.

1шт.
