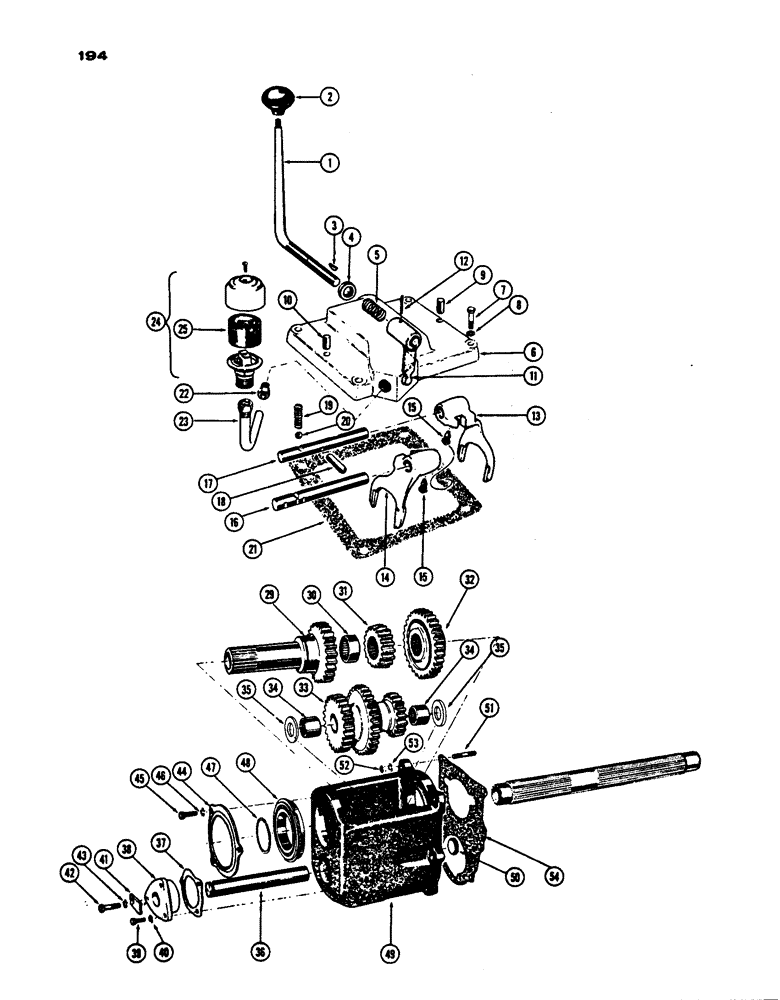

Запчасти Case IH 530 (194) - TRIPLE RANGE CONTROL COVER, TRIPLE RANGE UNIT, PRIOR TO S/N 8262800 (06) - POWER TRAIN

1

G15655

X

LEVER - hand

1шт.

2

O3501AB

X

KNOB - hand lever

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

4

O4244AB

OIL SEAL - hand lever

1шт.

5

G10715

VALVE SPRING

SPRING - hand lever

1шт.

6

G1361

SPARE PART

COVER - control

1шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex hd.

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

G10711

PIN

- dowel, rear (1/2" x 3/4")

1шт.

10

VT4453

X

PIN - dowel, front (3/8" x 3/4")

1шт.

11

G16663

LEVER - shift fork, low range

1шт.

12

138-45

LOCK PIN,3/32" x 1", Slotted

PIN, 3/32" x 1", Slotted

1шт.

13

G10399

FORK - shift, low range

1шт.

14

G10398

FORK TEDDER

FORK - shift, direct and high range

1шт.

15

VT2012

X

SCREW - lock, shift fork

2шт.

16

G10392

RAIL - shift, direct and high range

1шт.

17

G10394

RAIL - shift, low range

1шт.

18

G10391

PLUG - interlock, shift rail

1шт.

19

G47039

SPRING

- detent, shift rail

2шт.

20

211-11

BALL,3/8" Dia

- detent, shift rail

2шт.

21

G46842

GASKET

- control cover

1шт.

22

222-508

TUBE NUT,1"-18

NUT - breather tube to cover

1шт.

23

G30309

BREATHER,0.7535" OD x 1.5" L

TUBE - breather

1шт.

24

A9238

BREATHER

- oil, torque tube (incl. ref. 25)

1шт.

25

A10059

FILTER, ELEMENT

ELEMENT - filter, oil breather

1шт.

29

G10442

PINION

GEAR - input (24T), triple range unit

1шт.

30

G10419

NEEDLE BEARING

BEARING - needle, input gear (Torrington #BH2212), triple range unit

1шт.

31

G10374

PINION

GEAR - direct and high (18T), triple range unit

1шт.

32

G10375

PINION

GEAR - low (30T), triple range unit

1шт.

33

G10378

GEAR - cluster, countershaft (24T, 30T & 18T), triple range unit

1шт.

34

G10420

NEEDLE BEARING

BEARING - needle (Torrington #B-1616) (Replaces G10378), triple range unit

2шт.

35

G46071

WASHER

- thrust, countershaft, triple range unit

2шт.

36

G10372

SHAFT

COUNTERSHAFT, triple range unit

1шт.

37

G10386

SHIM,.005" Thk

Countershaft, Triple range unit .005" Thk

1шт.

37

G10387

SHIM,.0075" Thk

Countershaft, Triple range unit .0075" Thk

1шт.

38

G14109

BUSHING

- countershaft (incl. ref. 35), triple range unit

1шт.

39

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Triple range unit Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

40

92-5

LOCK WASHER,5/16"

triple range unit 5/16"

2шт.

41

G10368

LOCK

- countershaft, triple range unit

1шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- 5/16" x 1-1/4" N.C. hex hd., triple range unit

1шт.

43

92-5

LOCK WASHER,5/16"

triple range unit 5/16"

1шт.

44

G10381

RETAINER - bearing input gear, triple range unit

1шт.

45

G49000

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Drilled

- drilled, 5/16" x 3/4" N.C. hex hd., triple range unit

3шт.

46

92-5

LOCK WASHER,5/16"

triple range unit 5/16"

3шт.

47

O6009AB

SNAP RING - bearing, to input gear, triple range unit

1шт.

48

A33537

BALL BEARING,54.99mm ID x 90mm OD x 18mm W

BEARING - input gear, triple range unit

1шт.

49

G14108

HOUSING

HOUSUNG - (incl. ref 35), triple range unit

1шт.

50

VT5156

PLUG - expansion, housing, triple range unit

1шт.

51

G10710

STUD

- housing to trans. case (3/8" x 1-5/8"), triple range unit

7шт.

52

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex, triple range unit

7шт.

53

92-6

LOCK WASHER,3/8"

triple range unit 3/8"

7шт.

54

G46841

GASKET

- housing to trans. case, triple range unit

1шт.
