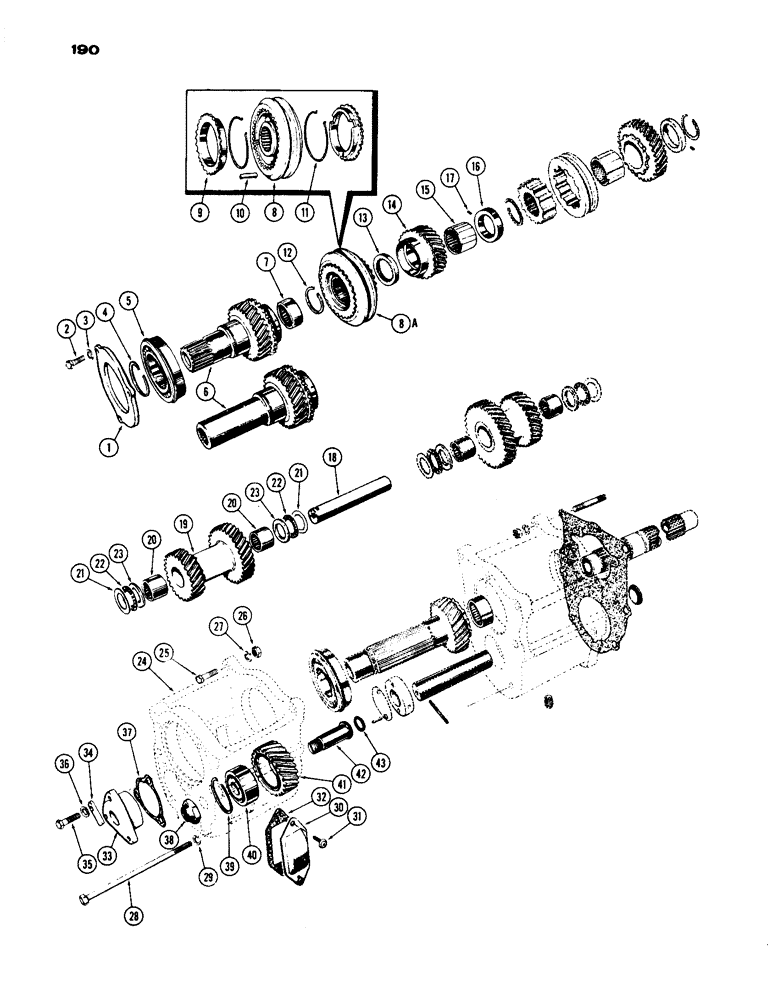

Запчасти Case IH 530 (190) - SHUTTLE GEAR UNIT, PRIOR TO S.N 8262800 (06) - POWER TRAIN

1

G16627

RETAINER

- bearing, shuttle input gear

1шт.

2

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

O7528AB

X

SNAP RING - bearing to shuttle input gear

1шт.

5

G13607

BALL BEARING

BEARING - ball, input gear (ND#4321-LXIA)

1шт.

6

G16799

GEAR WHEEL

GEAR - input, w/torque conv. drv. (ext. splines)

1шт.

6

G16626

GEAR

- input, w/std. drv. (internal splines)

1шт.

7

A35767

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 19.05mm W

BEARING - needle, input gear

1шт.

8a

G45049

SYNCHRONIZER

UNIT - complete (incl. ref. 8 - 11)

1шт.

8

G45047

HUB AND SLEEVE - synchronizer unit

1шт.

9

G46077

RING

- blocking, synchronizer unit

2шт.

10

G46078

PLATE

- shifter, synchronizer unit

2шт.

11

A40766

SPRING

- synchronizer unit

2шт.

12

O8997AB

X

SNAP RING - synchronizer unit (.076")

1шт.

12

O8998AB

X

SNAP RING - synchronizer unit (.080")

1шт.

12

O8999AB

X

SNAP RING - synchronizer unit (.083")

1шт.

12

G46097

RING

SNAP RING - synchronizer unit (.087")

1шт.

12

O9000AB

X

SNAP RING - synchronizer unit (.091")

1шт.

13

G16625

COLLAR

- thrust, shuttle output gear

1шт.

14

G16624

GEAR

- output, shuttle (27T)

1шт.

15

G16619

SLEEVE

- output gear, shuttle

1шт.

16

G13459

COLLAR

- thrust, shuttle output gear (incl. ref. 17)

1шт.

17

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN, 5/64" x 3/8", Slotted

1шт.

18

G16617

SHAFT

COUNTERSHAFT - cluster gear

1шт.

19

G16615

GEAR

- cluster, shuttle countershaft (25T and 30T)

1шт.

20

G10420

NEEDLE BEARING

BEARING - cluster gear (Torrington #B1616)

2шт.

21

G46082

WASHER

- thrust, inner, cluster gear (.125")

2шт.

22

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST (Torrington #NTA-1625)

2шт.

23

G46081

BEARING WASHER

WASHER - thrust, outer, cluster gear (.031")

2шт.

24

G1255

HOUSING - shuttle gear (w/torque conv/ drv.)

1шт.

24

G1205

HOUSING

- shuttle gear (w/std drive)

1шт.

25

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

26

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

3шт.

27

92-6

LOCK WASHER,3/8"

3шт.

28

13-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

4шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

G16794

COVER - gear opening (w/torque conv. only)

1шт.

31

182-506

SCREW - 5/16" x 1/2" pan hd. recessed (Spin lock)

2шт.

32

G46816

GASKET

- gear cover (w/torque conv. only)

1шт.

33

G1206

RING

BUSHING - frt. countershaft

1шт.

34

G16618

LATCH

LOCK - countershaft

1шт.

35

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex hd.

1шт.

35

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

36

92-6

LOCK WASHER,3/8"

3шт.

37

G16616

SHIM,.005" Thk

Cluster gear .005" Thk

1шт.

38

G16614

NUT

- idler gear stud

1шт.

39

O7084AB

X

SNAP RING - bearing, idler gear

1шт.

40

G13608

BALL BEARING

BEARING - ball, idler gear (N.D. #5304LXIA)

1шт.

41

G16612

GEAR

- reverse idler (24T)

1шт.

42

G16613

STUD

- reverse idler gear

1шт.

43

O8416AB

X

"O" RING - between housings

1шт.
