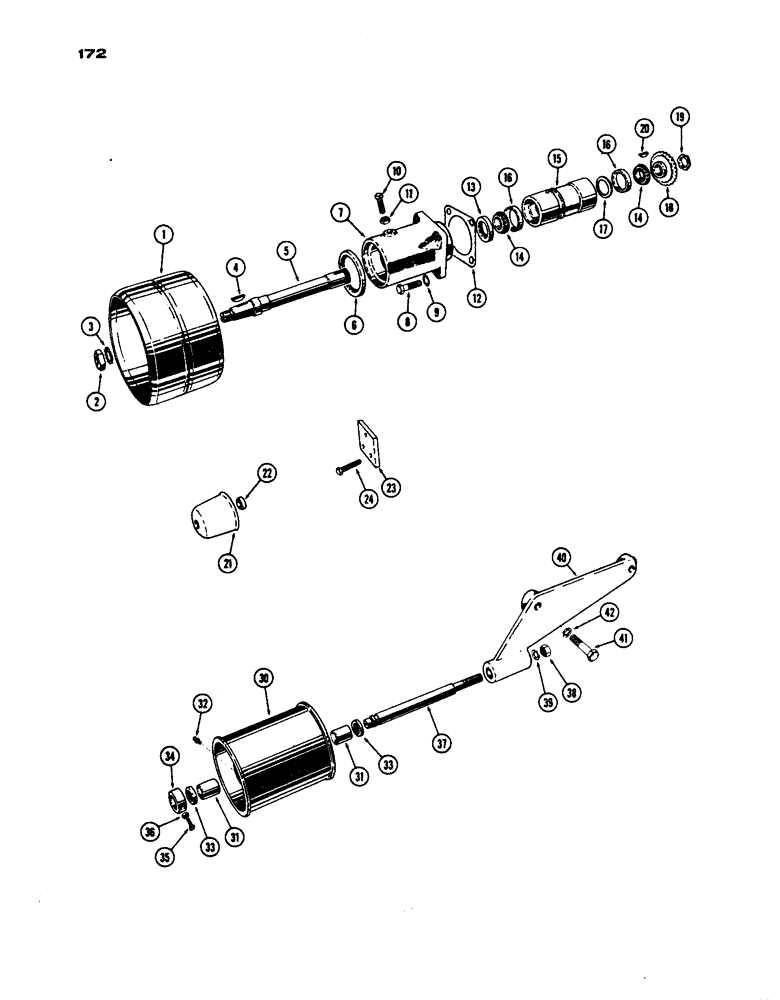

Запчасти Case IH 530 (172) - SIDE MOUNTED BELT PULLEY, IDLER PULLEY WITH ADJUSTABLE AXLE, PRIOR TO S/N 8262800 (06) - POWER TRAIN

1

G14160

PULLEY - belt (9-1/4" O.D.) 530 Series

1шт.

1

VTA356

PULLEY - belt (10-1/4" O.D.) 430 Series

1шт.

2

25-1516

NUT,Jam, 1"-14, G5

- jam, N.F. hex

1шт.

3

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

4

126-144

WOODRUFF KEY,#129, 3/8" x 2 1/8", HT

KEY - pulley to shaft

1шт.

5

VT2315

SHAFT - belt pulley

1шт.

6

G10651

OIL SEAL

- outer, sleeve housing

1шт.

7

G1038

HOUSING - sleeve, pulley shaft

1шт.

8

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

9

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

4шт.

10

VT2170

SCREW - set, pulley sleeve

1шт.

11

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8' N.C. hex

1шт.

12

VT2318

SHIM - housing (.005 blue)

1шт.

12

VT2328

SHIM - housing (.003 green)

1шт.

13

VT2316

X

OIL SEAL - pulley shaft

1шт.

14

VT2096

X

CONE - sleeve bearing (Timken #14137-A)

2шт.

15

G13405

SLEEVE - pulley shaft, Includes: Ref. 16 & 17

1шт.

16

VT2097

X

CUP - sleeve bearing (Timken #14276)

2шт.

17

VT2317

SHIELD - oil, pulley shaft

1шт.

18

VT2082

GEAR - drive, pulley shaft

1шт.

19

VT2051

NUT - adjusting, pulley shaft

1шт.

20

126-217

KEY - gear to shaft (Hi-Pro 3/16" x 1-1/16")

1шт.

21

VT3030

COVER - shaft (w/o pulley)

1шт.

22

VT3884

SPACER -, Serial Range: cover-shaft

1шт.

23

T134

PULLER - belt pulley, Includes: Ref. 24

1шт.

24

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

30

VTA3053

PULLEY ASSY. - belt idler, Includes: Ref. 31, w/adjustable axle

1шт.

31

V20451

BUSHING - idler pulley w/ adjustable axle

2шт.

32

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - str. drive, 1/4", idler pulley w/ adjustable axle

1шт.

33

V14653

OIL SEAL - idler shaft, idler pulley w/ adjustable axle

2шт.

34

VTA3054

COLLAR - pulley thrust, Includes: Ref. 35 & 36, idler pulley w/adjustable axle

1шт.

35

181-247

SCREW - set, 3/8" x 1" N.C. sq. hd. dog pt., idler pulley w/adjustable axle

1шт.

36

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex, idler pulley w/adjustable axle

1шт.

37

VT5212

SHAFT - idler pulley w/adjustable axle

1шт.

38

25-1012

NUT,3/4"-10, G5

Idler pulley w/adjustable axle 3/4"-10, G5

1шт.

39

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Idler pulley w/adjustable axle 3/4"

1шт.

40

G1269

BRACKET - idler pulley w/adjustable axle

1шт.

41

12-1240

BALL BEARING

BOLT - 3/4" x 2-1/2" N.C. hex hd., idler pulley w/adjustable axle

2шт.

42

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Idler pulley w/adjustable axle 3/4"

2шт.
