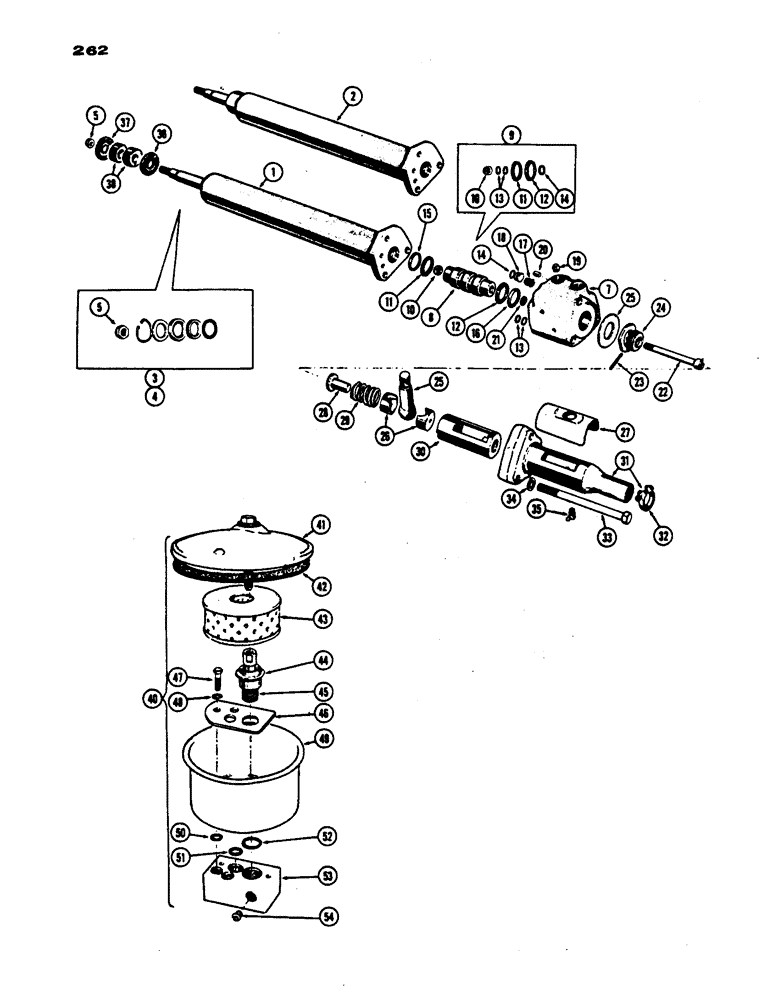

Запчасти Case IH 530 (262) - POWER STEERING CYLINDER PARTS AND RESERVOIR PARTS, PRIOR TO S/N 8262800 (05) - STEERING

G14451

CYLINDER

ASSY. - (w/heavy duty axle) (incl. ref. 1 - 38)

1шт.

G45312

CYLINDER ASSY. - (w/7000 lb. axle) (incl. ref. 1 - 38)

1шт.

1

G45076

CYLINDER BLOCK

TUBE ASSY. - (for G14451)

1шт.

2

G45355

TUBE ASSY. - (for G45312)

1шт.

3

A35655

KIT

- cylinder seal (for G14451) (incl. ref. 5)

1шт.

4

A35656

KIT

- cylinder seal (for G45312) (incl. ref. 5)

1шт.

5

A40261

NUT

- lock, 7/16" N.F.

1шт.

7

G45074

VALVE ASSY. (incl. ref. 8 - 19)

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - (Order G45074)

1шт.

9

G45077

KIT

SEAL KIT - valve (incl. ref. 10 - 14)

1шт.

10

G49032

NUT

- lock, valve spool

1шт.

11

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

"O" RING - large, spool

1шт.

12

G46846

O-RING,0.796" ID x 1.074" OD

"O" RING - small, spool

1шт.

13

O10491AB

X

"O" RING - oil port

2шт.

14

O9787AB

X

"O" RING - relief valve plug

1шт.

15

G46122

BUSHING

- (large bore)

1шт.

16

G46123

BUSHING

- (small bore)

1шт.

17

G45075

LOCK VALVE

VALVE - relief

1шт.

18

G46121

PLUG

- relief valve

1шт.

19

A15233

SEAT

- port, pressure & return

2шт.

20

G46129

INSERT - valve to cyl. oil passage

1шт.

21

G49033

SPACER

- valve spool

1шт.

22

G49030

BOLT (SPREADER)

BOLT - valve spool

1шт.

23

G46111

PIN

- lock, adjusting screw

1шт.

24

G46108

SCREW

- torque adjusting (incl. ref. 25, 26 & 27)

1шт.

G45078

KIT

- ball stud

1шт.

25

G46112

STUD

- ball

1шт.

WASHER P/N IS G49035 PER NOTES IN HARD COPY CATALOG

1шт.

26

G46110

SEAT

- ball stud

2шт.

27

G46114

SHIELD

- dust

1шт.

28

G46115

STOP

- ball stud spring

1шт.

29

G46113

VALVE SPRING

SPRING - ball stud

1шт.

30

G46109

SLEEVE

- spring

1шт.

31

G14452

SLEEVE

& FLANGE ASSY. (incl. ref. 32)

1шт.

32

G45175

CLAMP

- tie rod end

1шт.

33

G49031

BOLT (SPREADER)

BOLT -, Serial Range: flange-valve

3шт.

34

92-6

LOCK WASHER,3/8"

3шт.

35

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - 1/4" - 28 taper thrd. 90 deg.

1шт.

36

G46118

WASHER

- inner, grommet

1шт.

37

G46119

WASHER

- outer, grommet

1шт.

38

A35654

GROMMET

- rubber (Shipped w/G14451 only)

2шт.

40

G45293

RESERVOIR

ASSY. - power steering (incl. ref. 41 - 54)

1шт.

41

G45308

COVER

ASSY. - power steering reservoir parts (incl. ref. 42 - 54)

1шт.

42

A24138

GASKET

- cover, power steering reservoir parts

1шт.

43

O10582AB

X

ELEMENT - filter, power steering reservoir parts

1шт.

44

G46317

CUP - sealing, stud, power steering reservoir parts

1шт.

45

G46316

STUD - retaining, power steering reservoir parts

1шт.

46

G46315

PLATE - reinforcement, power steering reservoir parts

1шт.

47

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Power steering reservoir parts Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

48

92-5

LOCK WASHER,5/16"

power steering reservoir parts 5/16"

1шт.

49

G46314

BODY - power steering reservoir parts

1шт.

50

O9171AB

X

"O" RING - (3/4" O.D.), power steering reservoir parts

1шт.

51

VT2983

X

"O" RING - (5/8" O.D.), power steering reservoir parts

2шт.

52

O3522CK

X

"O" RING - (1" O.D.), power steering reservoir parts

1шт.

53

G46313

BLOCK - port, power steering reservoir parts

1шт.

54

G49668

FITTING - hose to block, power steering reservoir parts

2шт.
