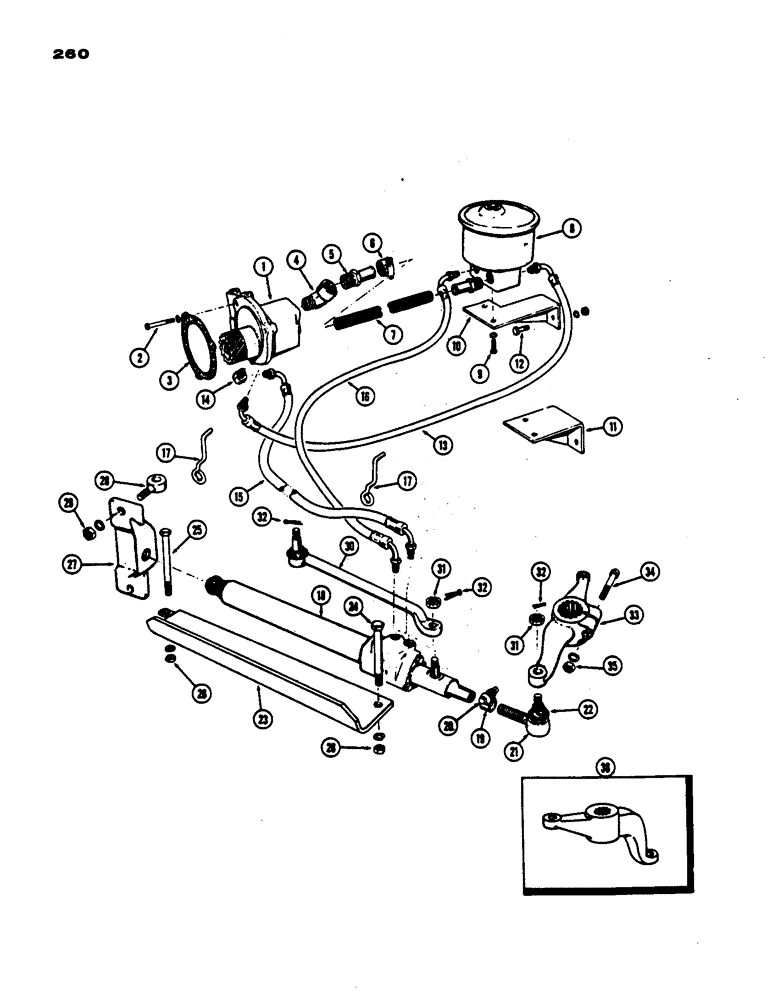

Запчасти Case IH 530 (260) - UTILITY TRACTOR WITH LOADER, PRIOR TO S/N 82628000, POWER STEERING (05) - STEERING

1

G45467

PUMP, HYDRAULIC

PUMP - power steering (Repairs Figure 230)

1шт.

2

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8" x 3-1/4" N.C. hex hd.

3шт.

92-6

LOCK WASHER,3/8"

3шт.

3

VT3691

X

GASKET -, Serial Range: pump-block

1шт.

221-404

FITTING

ELBOW - hose to pump (1/2" P.T. 45 deg. street ell)

1шт.

5

217-124

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - suction hose

2шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

7

G46310

HOSE - suction, pump to reservoir (12" long, gas engine)

1шт.

7

G46311

HOSE - suction, pump to reservoir (11" long, diesel engine)

1шт.

8

G45293

RESERVOIR

- oil (See Figure 262)

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

10

G30392

BRACKET - reservoir (gas engine)

1шт.

11

G30379

BRACKET - reservoir (diesel engine)

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

92-5

LOCK WASHER,5/16"

2шт.

13

G45295

HOSE ASSY.

HOSE - pump to reservoir (30" long)

1шт.

14

222-1027

ELBOW,90 Degree, 5/8"-18 Inv Fl x 3/8" NPT

- pressure line to pump (3/8" O.D. x 3/8" P.T.)

1шт.

15

G45297

HOSE - pressure, pump (43" long)

1шт.

16

G45296

HOSE ASSY.

HOSE - return, pump (66" long)

1шт.

17

G15475

SUPPORT - hose

2шт.

18

G45312

CYLINDER - valve (Repairs Figure 262)

1шт.

19

G45175

CLAMP

- tie rod end (includes ref. 20)

1шт.

20

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.F. hex hd.

1шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

92-8

LOCK WASHER,1/2"

1шт.

21

A36505

END ASSY.

END - tie rod, cylinder to steering arm

1шт.

22

G46043

COVER

- dust, tie rod end

1шт.

23

G14039

GUARD - cylinder and valve

1шт.

24

14-10104

BOLT - 5/8" x 6-1/2" N.F. hex hd.

1шт.

25

14-10136

BOLT,Hex, 5/8" - 18 x 8-1/2", Gr 5

- 5/8" x 8-1/2" N.F. hex hd.

1шт.

26

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

G17092

BRACKET - mounting, cylinder and guard

1шт.

28

G47036

EYE BOLT - mounting bracket

1шт.

29

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

30

G45206

DRAG LINK

- center arm to cylinder stud

1шт.

31

25-139

SLOTTED NUT,9/16"-18, G5

NUT - slotted, 9/16" N.F. hex

3шт.

32

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

3шт.

33

G17093

ARM - steering (w/straight spline spindle)

1шт.

34

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

- 1/2" x 3" N.F. hex hd.

1шт.

35

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

36

A35678

ARM - steering (w/tapered spline spindle)

1шт.
