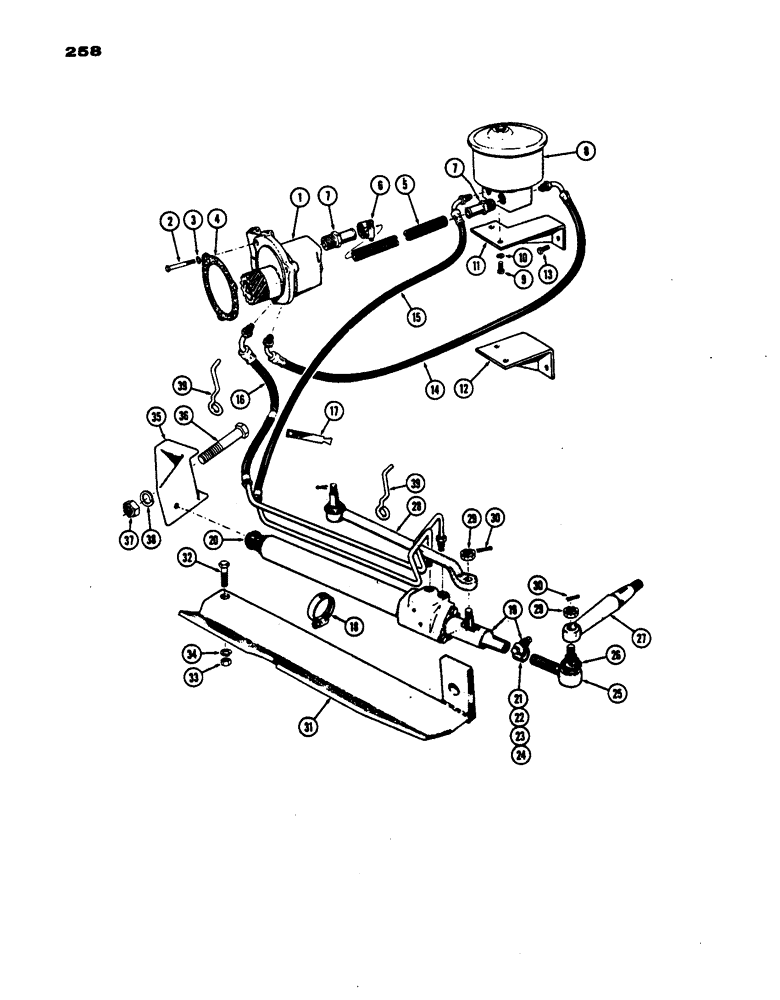

Запчасти Case IH 530 (258) - 430-530 HEAVY DUTY FRONT AXLE, POWER STEERING (05) - STEERING

1

G45466

X

PUMP - power steering (Repairs Figure 230)

1шт.

2

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8" x 3-1/4" N.C. hex hd.

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

VT3691

X

GASKET -, Serial Range: pump-block

1шт.

5

G46310

HOSE - suction (gas eng. 12" long)

1шт.

5

G46311

HOSE - suction (diesel 11" long)

1шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

7

217-124

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - suction hose (90C-5/8")

2шт.

8

G45293

RESERVOIR

- oil (Repairs Figure 262)

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

G30392

BRACKET - reservoir (gas eng.)

1шт.

12

G30379

BRACKET - reservoir (diesel)

1шт.

13

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

14

G45295

HOSE ASSY.

HOSE - pump to reservoir (diesel 30" lg.)

1шт.

14

G45298

X

HOSE - pump to reservoir (gas 37" lg.)

1шт.

15

A35661

HOSE ASSY.

HOSE - return, Serial Range: cyl.-reservoir

1шт.

16

A35660

HOSE ASSY.

HOSE - pressure, Serial Range: pump-cylinder

1шт.

17

A22926

CLAMP

BAND - hose

2шт.

18

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- hose to cylinder #36, 1.81/2.75 Type F Worm

1шт.

19

G14451

CYLINDER

& VALVE ASSY. (Repairs Figure 262) (incl. ref. 20 - 24)

1шт.

20

A35654

GROMMET

GROMMET - cushion

2шт.

21

G45175

CLAMP

- tie-rod end (incl. ref. 22, 23 & 24)

1шт.

22

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.F. hex hd.

1шт.

23

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

24

92-8

LOCK WASHER,1/2"

1шт.

25

A36505

END ASSY.

END - tie rod, cyl. to arm (incl. ref. 26)

1шт.

26

G46043

COVER

- dust

1шт.

27

G16667

X

ARM - cylinder to L.H. spindle

1шт.

28

G45206

DRAG LINK

- center steering arm

1шт.

29

25-139

SLOTTED NUT,9/16"-18, G5

NUT - slotted, 9/16" N.F. hex

2шт.

30

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

31

G13944

GUARD - cylinder & valve

1шт.

32

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

1шт.

33

25-1012

NUT,3/4"-10, G5

1шт.

34

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

35

G1282

BRACKET - cylinder & guard

1шт.

36

13-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

2шт.

37

25-1016

NUT,1"-8, G5

2шт.

38

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

39

G15475

SUPPORT - hose (w/old style hoses)

2шт.
