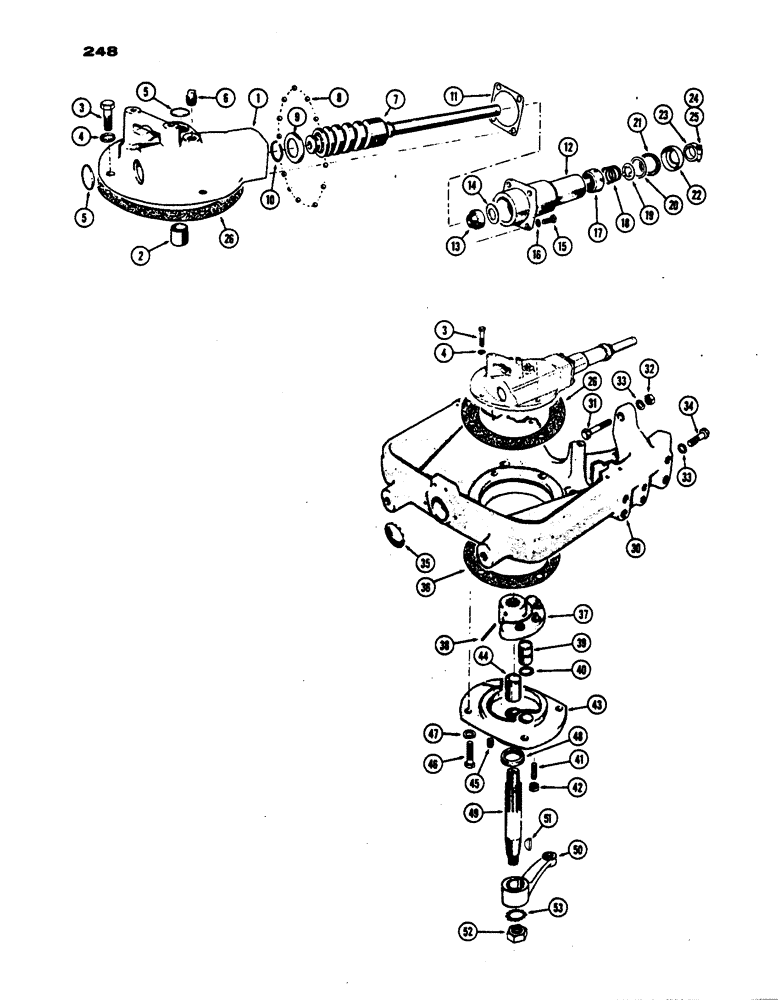

Запчасти Case IH 530 (248) - STEERING GEAR AND SUPPORT, UTILITY, PRIOR S/N 8262800, BEFORE S/N 8199596 & S/N 8201862 THRU 8209856 (05) - STEERING

1

G13014

HOUSING - steering gear (incl. ref. 2)

1шт.

2

G10725

BUSHING

- lever shaft

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

41-24

PLUG

- expansion (1-1/2" dia.)

2шт.

6

G15455

PLUG - vented, housing

1шт.

7

G13288

CAM

& SHAFT - steering lever

1шт.

8

211-9

BALL,5/16" Dia

- cam bearing (.) 5/16" Dia

28шт.

9

G15216

CUP ASSY.

CUP - ball bearing

1шт.

10

G10727

RING

- retaining, bearing cup

2шт.

11

G10729

SHIM,.003" Thk

Housing cover .003" Thk

1шт.

11

G10730

SHIM,.010" Thk

Housing cover .010" Thk

1шт.

11

G10731

SHIM,.002" Thk

Housing cover .002" Thk

1шт.

12

G13411

COVER ASSY. - housing & cam (incl. ref. 13 & 14)

1шт.

13

G10728

SEAL

OIL SEAL - cam shaft

1шт.

14

G46072

GASKET

GASKET

1шт.

15

V14121

SPRING

BOLT - cover to housing (5/16 x 3/4" N.C.)

4шт.

16

92-5

LOCK WASHER,5/16"

4шт.

17

VTA5009

X

BEARING - cam shaft

1шт.

18

V14876

ARM

SPRING - shaft

1шт.

19

VT4687

WASHER

SEAT - spring

1шт.

20

G15454

WASHER

- felt seal

1шт.

21

G15451

FELT

SEAL - felt, shaft bearing

1шт.

22

G15452

CUP ASSY.

CUP - felt seal

1шт.

23

G1146

CLAMP - shaft

1шт.

24

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

SCREW - mach., #10-24 x 3/4"

1шт.

25

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

26

G10637

GASKET

- gear, Serial Range: housing-support

1шт.

30

A35168

SUPPORT - axle and radiator

1шт.

31

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- 5/8" x 3" N.F. hex hd.

2шт.

32

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

33

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

34

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

35

205-69

PLUG - button

1шт.

36

A35255

GASKET

- pivot support

1шт.

37

G13287

LEVER

ASSY. - steering shaft

1шт.

A40907

KIT

STUD SET - (3 studs w/shim) (not illust.)

1шт.

38

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

1шт.

39

G10732

PLUG - adjusting, steering lever

1шт.

40

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - adjusting plug (1-1/4 O.D.)

1шт.

41

G10733

SCREW - adjusting plug

1шт.

42

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex

1шт.

43

G13122

SUPPORT - steering shaft (incl. ref. 44)

1шт.

44

VT2220

X

BUSHING - steering shaft

1шт.

45

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

46

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

47

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

48

O4240AB

X

OIL SEAL - steering shaft

1шт.

49

G10633

SHAFT

- steering lever

1шт.

50

G10884

ARM - steering, center -024, 70 Duro, 1.114" ID x .070" Thk

1шт.

51

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

Arm to shaft #G, 3/8" x 1 1/2"

1шт.

52

25-1516

NUT,Jam, 1"-14, G5

- jam, 1" N.F. hex

1шт.

53

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.
