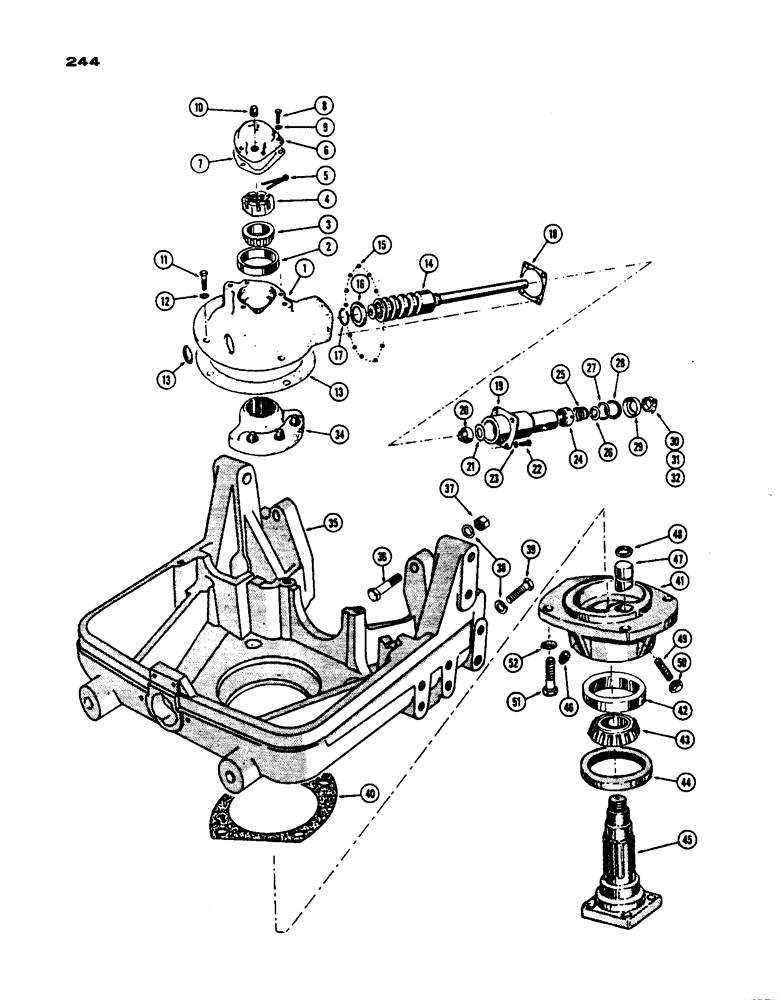

Запчасти Case IH 530 (244) - STEERING GEAR AND SUPPORT, SINGLE WHEEL BEFORE S/N 8191147, PRIOR TO S/N 8262800 (05) - STEERING

1

G14105

HOUSING - gear (incl. ref. 2)

1шт.

2

VT2097

X

CUP - bearing (Timken #14276)

1шт.

3

VT2096

X

CONE - bearing (Timken #14137A)

1шт.

4

25-1318

SLOTTED NUT,1 1/8"-12, G5

NUT - slotted, 1-1/8" N.F. hex

1шт.

5

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

6

G1199

CAP - steering housing

1шт.

7

G46075

-, Serial Range: cap-housing

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

9

92-5

LOCK WASHER,5/16"

3шт.

10

G15455

PLUG - vented

1шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

V22152

CAP

PLUG - expansion (1-1/2" dia.)

2шт.

14

G13289

CAM & SHAFT ASSY.

1шт.

15

211-9

BALL,5/16" Dia

- cam bearing (.) 5/16" Dia

28шт.

16

G15216

CUP ASSY.

CAP - ball housing

1шт.

17

G10727

RING

- retainer, bearing cap

2шт.

18

G10729

SHIM,.003" Thk

Cam adjusting .003" Thk

1шт.

18

G10730

SHIM,.010" Thk

Cam adjusting .010" Thk

1шт.

18

G10731

SHIM,.002" Thk

Cam adjusting .002" Thk

1шт.

19

G13411

COVER ASSY. - steering housing (incl. ref. 20 & 21)

1шт.

20

G10728

SEAL

OIL SEAL - cam shaft

1шт.

21

G46082

WASHER

GASKET - oil seal

1шт.

22

V14121

SPRING

BOLT - cover to housing (5/16" x 3/4" N.C.)

4шт.

23

92-5

LOCK WASHER,5/16"

4шт.

24

VTA5009

X

BEARING - cam shaft

1шт.

25

V14876

ARM

SPRING - shaft bearing

1шт.

26

VT4687

WASHER

SEAT - spring

1шт.

27

G15454

WASHER

- protective, felt seal

1шт.

28

G15451

FELT

SEAL - felt, outer bearing

1шт.

29

G15452

CUP ASSY.

CUP - felt seat

1шт.

30

G1146

CLAMP - steering shaft

1шт.

31

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

SCREW - #10-24 x 3/4" N.C. rd. hd.

1шт.

32

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

33

G10637

GASKET

- steering, Serial Range: housing-support

1шт.

34

G13412

LEVER ASSY. - steering cam

1шт.

A40907

KIT

STUD SET - (3 studs w/shims) (not illust.)

1шт.

35

A35169

SUPPORT - steering gear & spindle

1шт.

36

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- 5/8" x 3" N.F.hex hd.

2шт.

37

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

38

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

39

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

40

A35255

GASKET

- support, steering spindle

1шт.

41

G14303

SUPPORT - steering spindle (incl. ref. 42)

1шт.

42

O3755AB

X

CUP - bearing, spindle (Timken #394A-4C)

1шт.

43

O3754AB

X

CONE - bearing, spindle (Timken #399A-4C)

1шт.

44

V14654

X

OIL SEAL - spindle

1шт.

45

G16583

SPINDLE - steering

1шт.

46

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - 3/8" P.T. sq. hd.

1шт.

47

G46074

PLUG - adjusting, steering lever

1шт.

48

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - adjusting plug (1-1/4" dia.)

1шт.

49

G49022

SCREW - set, adjusting plug

1шт.

50

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex

1шт.

51

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

52

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
