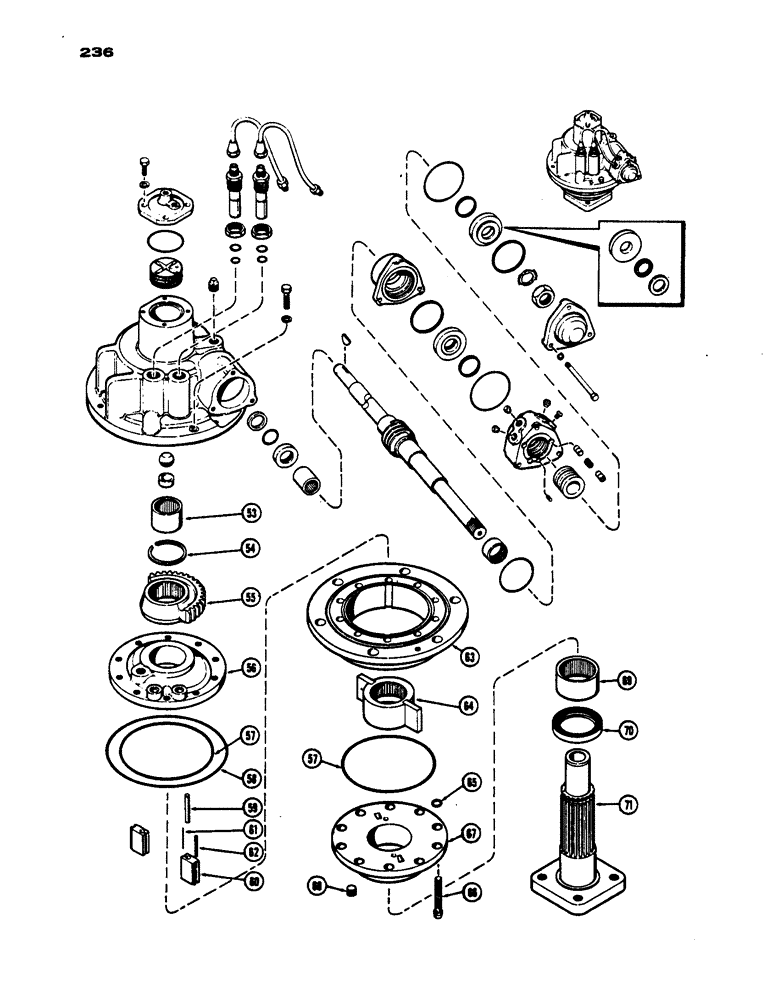

Запчасти Case IH 530 (236) - POWER STEERING GEAR PARTS, CONTD, GENERAL PURPOSE S/N 8191147 AND AFTER, PRIOR TO S/N 8262800 (05) - STEERING

A36571

GEAR ASSY. - steering (cont. from Figure 234) (incl. ref. 53 - 71)

1шт.

53

O10971AB

BEARING, ROLLER

BEARING - needle, spindle. upper

1шт.

54

O9512AB

X

RING - snap, sector gear retaining

1шт.

55

A33061

GEAR

- sector

1шт.

56

A7972

COVER - vane, upper

1шт.

57

O10813AB

X

"O" RING - vane body (6-1/4 x 6-1/2 x 1/8")

2шт.

58

O10985AB

X

"O" RING - cover (8-1/4 x 8-1/2 x 1/8")

1шт.

59

A7975

PIN

- stationary vane

2шт.

60

A9866

PIVOT

VANE - stationary

2шт.

61

A7991

X

SEAL - stationary vane (9/64 x 1-3/4" rubber)

2шт.

62

A9867

SEAL

- stationary vane (13/64 x 1-3/4" rubber)

2шт.

63

A7971

BODY - vane

1шт.

64

A20354

VANE - torque motor

1шт.

65

VT2983

X

"O" RING - cover bolts (7/16 x 5/8 x 3/32")

10шт.

66

166-72

BOLT - cover (7/16 x 2-3/4" N.C., 12 P.T., sckt hd.)

10шт.

67

A7973

COVER - vane, lower

1шт.

68

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Cover Hex Soc, 1/4"-18 NPTF

1шт.

69

O10972AB

X

BEARING - needle, spindle. lower

1шт.

70

A7792

X

SEAL - oil, spindle (2-1/2 x 3-1/2 x 1/2")

1шт.

71

A8649

SPINDLE - steering

1шт.
