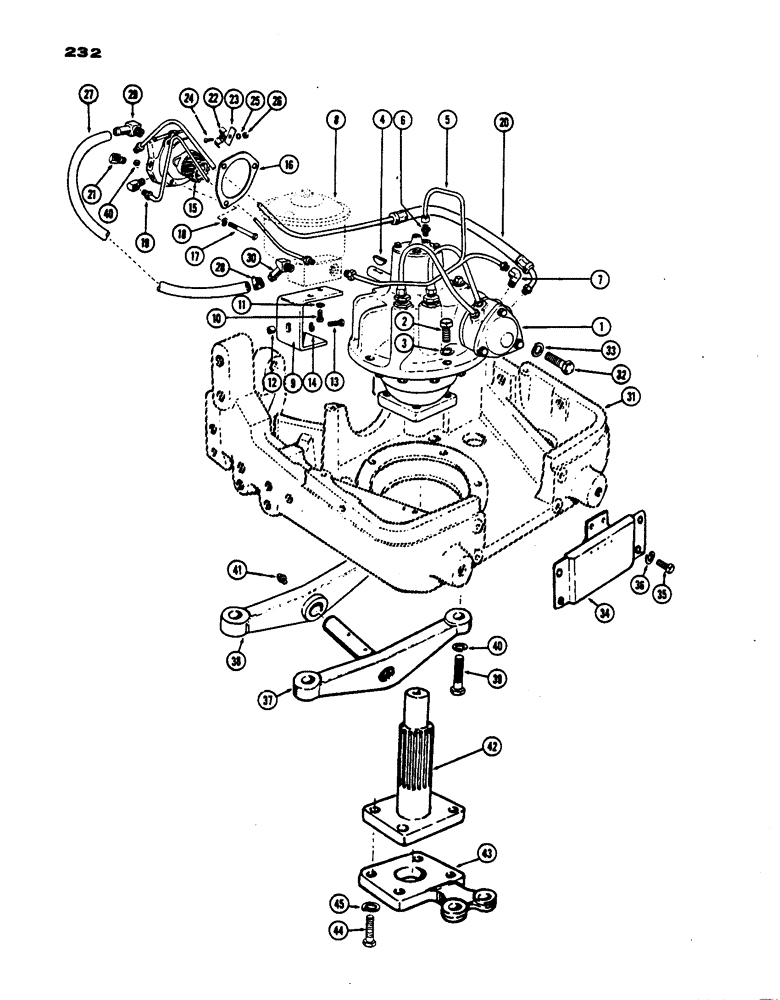

Запчасти Case IH 530 (232) - POWER STEERING, GENERAL PURPOSE S/N 8191147 AND AFTER, PRIOR TO S/N 8262800) (05) - STEERING

1

A23318

GEAR ASSY. (power steering) Order A36571 when stock is depleted

1шт.

1

A36571

GEAR ASSY. (power steering) (Repairs Figure 234)

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

6шт.

3

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

6шт.

4

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

5

A35337

TUBE - return & bleeder

1шт.

6

222-604

FITTING,1/2"-24 x 1/8" NPT, Comp

CONNECTOR - bleeder tube, 5/16" O.D. x 1/8" P.T.

1шт.

7

222-1027

ELBOW,90 Degree, 5/8"-18 Inv Fl x 3/8" NPT

- return tube, 3/8" O.D. x 3/8" P.T. 90 deg.

1шт.

8

G45293

RESERVOIR

RESERVIOR - oil (Repairs Figure 262)

1шт.

9

G15961

BRACKET - reservoir

1шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Reservoir Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

V14272

FUEL TANK

SPACER - bracket

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

15

G45467

PUMP, HYDRAULIC

PUMP - power steering (Repairs Figure 230)

1шт.

16

VT3691

X

GASKET - pump

1шт.

17

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8" x 3-1/4" N.C. hex hd.

3шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

19

G45481

TUBE - by-pass 0.375" OD x 15.062, 3.875" L

1шт.

20

G45480

TUBE ASSY.,0.375" OD x 12" L

TUBE - pressure

1шт.

21

222-1027

ELBOW,90 Degree, 5/8"-18 Inv Fl x 3/8" NPT

- tubes to pump, 3/8" O.D. x 3/8" P.T. 90 deg.

2шт.

22

G46392

CLAMP - tube

1шт.

23

G15959

STRAP - tube clamp

1шт.

24

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- clamp, 1/4" x 1/2" N.C. rd. hd.

1шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

27

A35837

HOSE - return

1шт.

28

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

29

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- pump, 5/8" O.D. x 1/2" P.T. 90 deg.

1шт.

30

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

Reservoir 45º, 5/8" Hose x 1/2" NPTF Beaded

1шт.

31

G1414

SUPPORT - front axle & radiator

1шт.

32

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- 5/8" x 1/2" N.C. hex hd.

2шт.

33

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

34

A35044

COVER - front, support

1шт.

35

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

36

92-6

LOCK WASHER,3/8"

4шт.

37

G30610

BRACKET & PIN ASSY. (adjustable axle) (dry clutch)

1шт.

38

G30611

BRACKET & PIN ASSY. (Case-O-Matic)

1шт.

38

G4532

BRACKET - pivot, adjustable axle (dry clutch)

1шт.

38

G4533

BRACKET - pivot, adjustable axle (Case-O-Matic)

1шт.

39

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

40

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

41

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" 45 deg.

1шт.

42

A8649

SHAFT - steering (adjustable axle)

1шт.

42

G15963

SHAFT - steering (dual front wheel)

1шт.

43

G4528

ARM - center steering (48"-72" adj. axle)

1шт.

43

G4529

ARM - center steering (52"-80" adj. axle)

1шт.

44

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

4шт.

45

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
