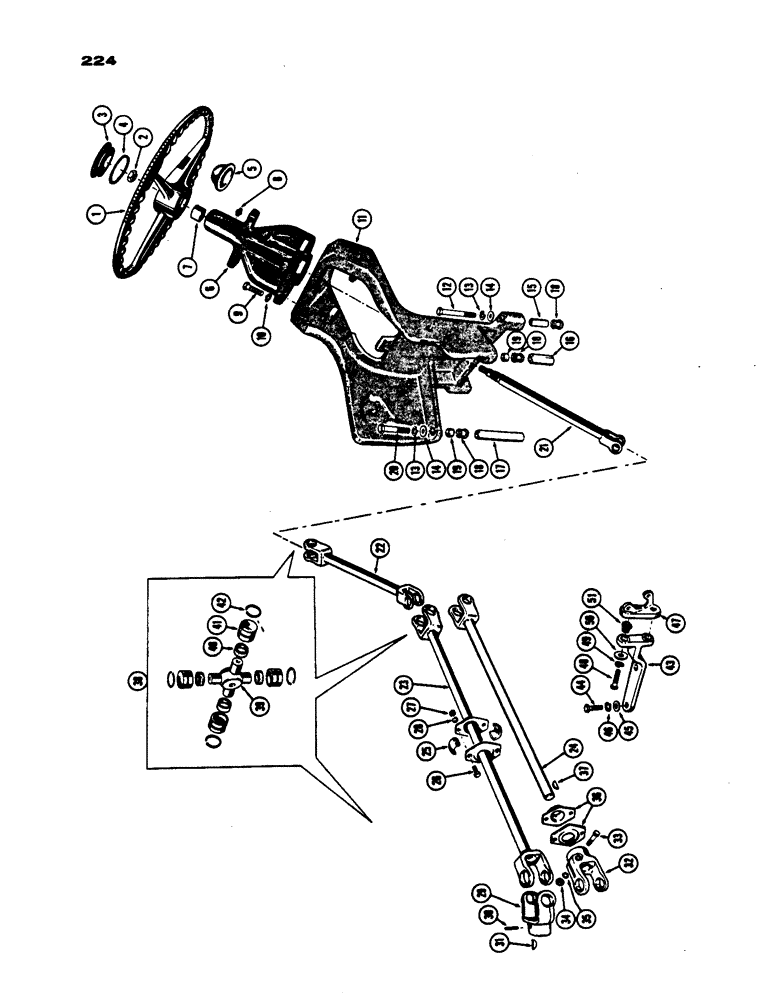

Запчасти Case IH 530 (224) - STEERING WHEEL AND LINKAGE, MODEL 530 DIESEL, PRIOR TO S/N 8252800 (05) - STEERING

1

A20456

WHEEL (STEERING)

WHEEL - steering

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.F. half hex

1шт.

3

A20449

EMBLEM CASE/IH

MEDALLION - steering wheel

1шт.

3

A20475

CAP

MEDALLION - (w/Power Steering)

1шт.

4

O10984AB

X

"O" RING - medallion

1шт.

5

G10742

SEAL

- dust, steering column

1шт.

6

G30258

COLUMN - steering (Before SN8218393) (incl. ref. 7)

1шт.

6

A36525

COLUMN - steering (SN8218393 and after) (incl. ref. 7)

1шт.

7

G10741

BUSHING,25.44mm ID x 27mm OD x 34.92mm L

- steering shaft

2шт.

8

219-11

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4"-28 str.

2шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

10

92-6

LOCK WASHER,3/8"

3шт.

11

G1378

SUPPORT - steering (Before SN8218393)

1шт.

11

A36178

SUPPORT - steering (SN 8218393 and after)

1шт.

12

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8' x 2-3/4" N.C. hex hd.

2шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

195-522

WASHER,5/16"

- wrought (3/8" I.D. x 3/4" O.D. x 5/64")

4шт.

15

G49622

SPACER,5/8" Tube x 1 7/16"

- (1-7/16" high)

2шт.

16

G49623

SUPPORT TUBE,0.625" OD x 1.255" L

PIPE - support, R.H. front w/C.O.M. (1-1/4" high)

1шт.

17

G49624

SPACER

PIPE - support, w/dry clutch (4-7/8" high)

2шт.

18

G45343

COMPOSITE RING

BUSHING - rubber

4шт.

19

G11270

SPACER

- support (1/4" high)

2шт.

20

13-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

Front Hex, 3/8"-16 x 6 1/2", G5

2шт.

21

G45261

SHAFT - steering, upper section

1шт.

22

G45262

SHAFT - intermediate (w/o Power Steering)

1шт.

22

G45294

SHAFT - intermediate (w/Power Steering)

1шт.

23

G45263

SHAFT - lower (See ref. 24)

1шт.

24

G45342

SHAFT - lower (Gen. Purpose w/power steering)

1шт.

25

G17025

CYLINDER END CAP

BEARING - lower shaft

2шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Bearing Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

G10897

YOKE

- front universal (w/G45263)

1шт.

30

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

31

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - universal to steering gear

1шт.

32

G4517

YOKE - front universal (Gen. Purpose w/power steering)

1шт.

33

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.F. hex hd.

1шт.

34

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

G17024

FLANGE - bearing (only w/ G45342)

2шт.

37

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Yoke to G45342 shaft #9, 3/16" x 3/4"

1шт.

38

A20684

KIT

- universal joint (incl. ref. 39 - 42)

3шт.

39

NSS

NOT SOLD SEPARAT

SPIDER (Order A20684)

1шт.

40

O2309FH

WASHER - cork

4шт.

41

NSS

NOT SOLD SEPARAT

BEARING

4шт.

42

V20955

X

SNAP RING

4шт.

43

G1379

BRACKET - bearing support

1шт.

44

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

45

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

1шт.

46

92-5

LOCK WASHER,5/16"

1шт.

47

G1380

SUPPORT - bearing

1шт.

48

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex hd.

2шт.

49

92-6

LOCK WASHER,3/8"

1шт.

50

95-6

WASHER,3/8"

- plain 3/8"

1шт.

51

G45343

COMPOSITE RING

BUSHING - rubber

2шт.
